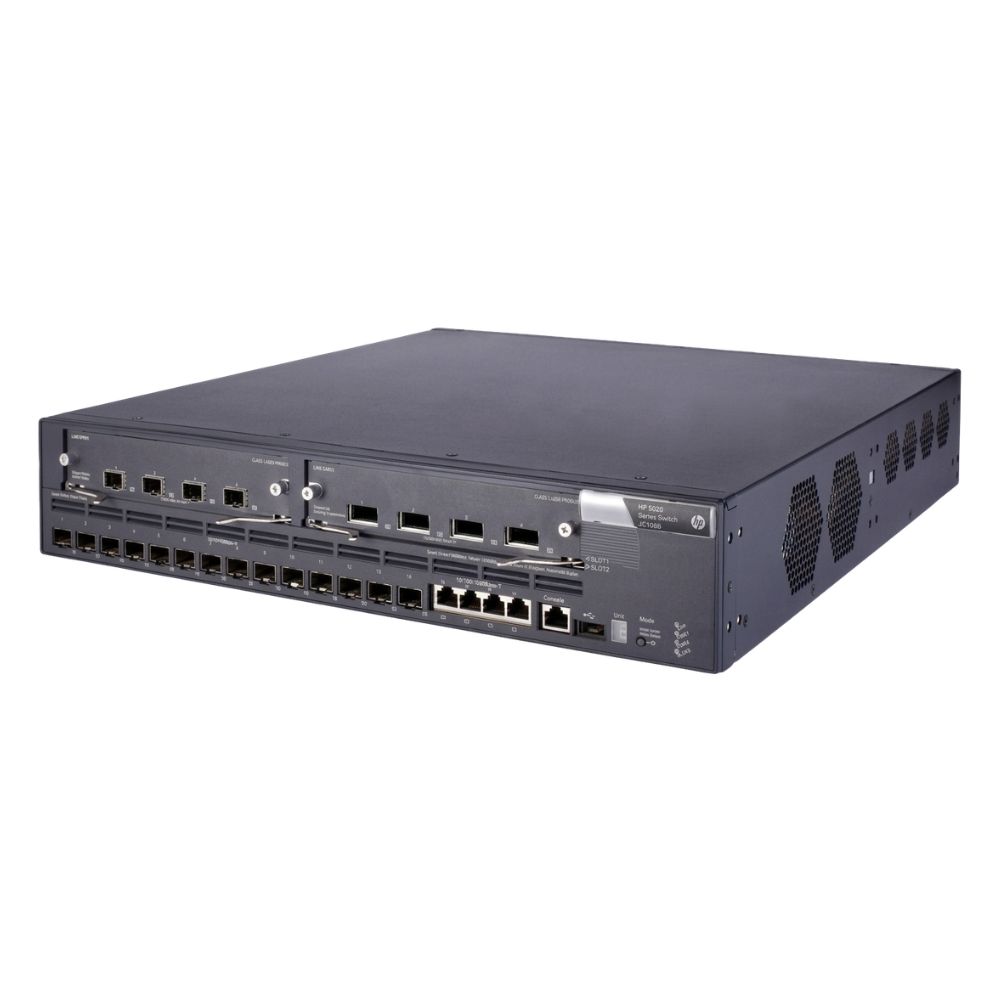

Name: JC106-61001 HP FlexFabric 5820-14XG-SFP+ 14x10Gbps SFP+ 4x1Gbps RJ45 L2 Switch
Brand: HP
SKU: JC106-61001
Price: 752.25 USD
Availability: InStock
Rating: 4.8 (118 reviews)

Product Overview
The JC106-61001 - HP FlexFabric 5820-14XG-SFP+ 14xSFP+ +4xRJ45 L2 Switch combines high-speed fiber and copper connectivity options in a single device. It fits well within enterprise and data center environments where flexible port configurations and Layer 2 capabilities are essential for managing network traffic efficiently.

General Information
Brand	HP
Condition	Refurbished

Technical Information
Switch Type	Layer 2, Managed Switch, Stackable Switch
Form Factor	Rack-Mountable
Mount Type	1U Rack
Switch Ports	SFP+,RJ-45
Number of Ports	20-Ports
Port Type	10GBase-T, 10G SFP+, RJ-45, USB Console, Serial Console (RJ-45)
Port Speed	10Gbps,1Gbps
UpLink Ports	4 x 10GBase-T RJ-45 (also usable as uplinks)
POE Support	No
Switching Capacity	360 Gbps
Switch Forwarding Rate	703.125 Mpps
DRAM	1 GB
Flash Memory	512 MB
VLAN Support	Yes
Max VLANs Supported	1-4094
Stackable	Yes
Layer Support	Layer 2
Connector Type	SFP+,RJ-45,USB Console,Serial Console (RJ-45)

Performance
Jumbo Frame Support	Up To 9216 Bytes
MAC Address Table Size	32,000 entries (approx.)

Management and Configuration
Remote Protocols	Yes
Management Interfaces	CLI (console/SSH),Web GUI,Telnet,USB console,SNMPv1/v2c/v3,RMON
Security Features	ACLs,802.1X authentication,SSH,HTTPS,MAC address filtering,Storm control,Port security,Private VLAN
Management Type	In-band and Out-of-band management
Security	802.1X,ACLs,SSH,HTTPS,Port security
Remote Management Protocol	SNMPv1/v2c/v3,SSH,Telnet,HTTP/HTTPS

Power & Cooling
Fans	Dual hot-swappable cooling fans (front-to-back airflow)
Power	AC 100-240V, 50-60Hz
Power Supply	Internal fixed AC power supply

Physical Characteristics
Dimensions	1.73 x 17.32 x 16.34 in (H x W x D)
Weight	3.00
Operating Temperature	0°C to 45°C

Miscellaneous
Eco Friendly	Yes
Assembly Required	No
Compliance Standards	WEEE, RoHS, CE, FCC
Compliant Standards	IEEE 802.1Q,IEEE 802.1p,IEEE 802.3ad (LACP),IEEE 802.3x (Flow Control),IEEE 802.1D,IEEE 802.1s

Product Description
The JC106-61001 is a network switch designed to provide reliable Layer 2 switching with a combination of 14 high-speed SFP+ ports and 4 standard RJ45 ports. It is commonly found in data centers and enterprise networks where multiple high-throughput connections are required alongside standard Ethernet access points. Built for IT professionals managing mid-sized network environments, this switch balances performance and flexibility through its diverse port configuration. Network administrators benefit from its straightforward deployment and integration in existing infrastructure. Key Features Provides 10Gbps speeds on SFP+ ports for demanding data traffic Includes 1Gbps RJ45 ports for versatile connectivity options Offers advanced Layer 2 capabilities such as VLANs and link aggregation Compact form factor suitable for constrained rack spaces Supports efficient network traffic management and segmentation This switch plays a key role in managing network traffic by offering consistent performance and reliable port density. It supports network segmentation and helps maintain smooth communication within complex environments. Overall, the JC106-61001 delivers steady performance and adaptability, making it a practical choice for networks requiring a blend of fiber and copper connections without sacrificing operational stability.

Use Cases
This switch is typically deployed in environments where a mix of high-speed fiber links and standard Ethernet connections are necessary, such as mid-sized enterprise networks and storage clusters. Network operators looking to maintain efficient Layer 2 segmentation benefit from its balanced design. How It's Used: Connecting servers and storage arrays in data center rack deployments Aggregating traffic from edge switches within enterprise IT networks Supporting virtualization environments requiring multiple 10Gbps links Extending fiber connectivity to remote office setups with mixed cabling needs Managing traffic segmentation and link aggregation in campus networks Its blend of port types and reliable Layer 2 features supports scalable network infrastructure and helps maintain consistent performance across connected devices. This switch contributes to streamlined network management and operational efficiency.
