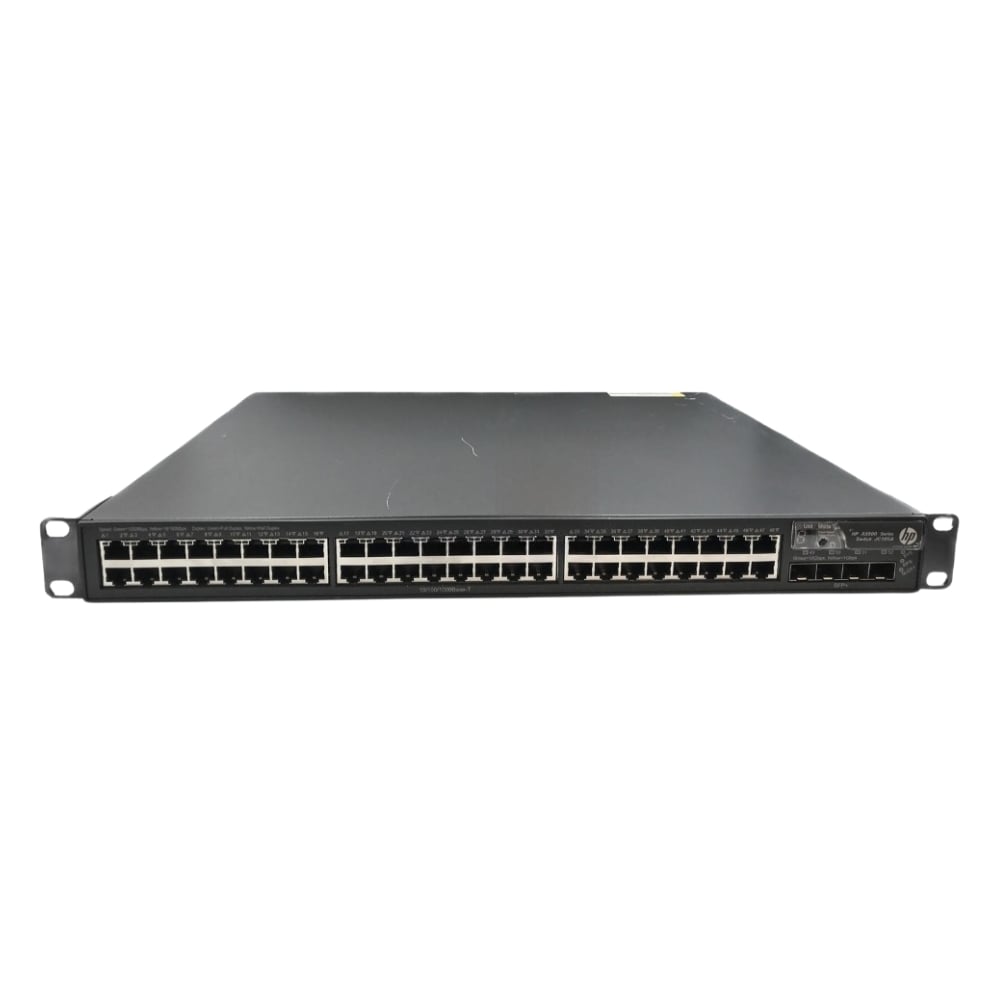

Name: JC104B HP 5800-48G-PoE 48-Port 10/100/1000 RJ45 PoE Layer 3 Switch
Brand: HP
SKU: JC104B
Price: 1.00 USD
Availability: InStock
Rating: 4.8 (112 reviews)

Product Overview
The JC104B HP 5800-48G-PoE switch delivers high-density PoE connectivity and Layer 3 management in a compact rack-mountable unit. It fits well into network environments requiring efficient traffic routing and power distribution over a single infrastructure.

General Information
Brand	HP
Condition	Refurbished

Technical Information
Switch Type	Layer 3, Managed Switch, Stackable Switch, PoE Switch, Gigabit Switch
Form Factor	Rack-Mountable
Mount Type	1U Rack
Switch Ports	48
Number of Ports	48-Ports
Port Type	10/100/1000Base-T, SFP+
Port Speed	10/100/1000 Mbps
UpLink Ports	4 x 10Gb SFP+
POE Support	PoE+
Switching Capacity	176 Gbps
Switch Forwarding Rate	343.75 Mpps
DRAM	512 MB
Flash Memory	128 MB
VLAN Support	Yes
Max VLANs Supported	1-4094 (up to 4094 VLANs)
Stackable	Yes
Layer Support	Layer 3
Connector Type	RJ-45,SFP+

Performance
Jumbo Frame Support	Up To 9216 Bytes
MAC Address Table Size	32000

Management and Configuration
Routing Protocols	Static, RIP, OSPF, BGP, VRRP, PIM-SM, IGMP
Remote Protocols	Yes
Management Interfaces	Web GUI, CLI (Console), SSH, Telnet, SNMPv1/v2c/v3, RMON
Security Features	802.1X, ACLs, RADIUS, TACACS+, Port Security, MAC filtering, DHCP Snooping, IP Source Guard, Storm Control, BPDU Guard
Management Type	Managed
Security	Yes
Remote Management Protocol	SNMP, SSH, Telnet, HTTP/HTTPS
Routing Protocol	Static, OSPF, RIP, VRRP

Power & Cooling
Fans	Front-to-back hot-swappable cooling fans
Power	Internal AC 100-240V, 50-60Hz, up to 900W (includes PoE budget)
Power Supply	Internal fixed AC power supply (100-240VAC)

Physical Characteristics
Dimensions	1.75 x 17.32 x 15.75 in (44.45 x 440 x 400 mm)
Weight	3.00
Operating Temperature	0°C to 45°C

Miscellaneous
Eco Friendly	Yes
Assembly Required	No
Compliance Standards	RoHS, CE, FCC, UL, TUV
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1X, IEEE 802.3af, IEEE 802.3at

Product Description
The JC104B HP 5800-48G-PoE is built to provide reliable, high-speed network connectivity with Power over Ethernet capabilities. Often found in enterprise network infrastructures, this switch offers robust management features to control traffic efficiently. It is commonly used in environments that require consistent PoE power delivery alongside data transmission, such as office networks and campus settings. Network administrators and IT professionals benefit from its versatility and performance. Key Features Equipped with 48 PoE-enabled RJ45 ports allowing simultaneous data and power delivery Layer 3 capabilities for routing and enhanced traffic management Compact 1U rack-mount design optimizes space in server rooms Supports multiple speed options for compatibility with a range of devices Managed interface provides detailed control over network policies and security This switch plays a vital role in maintaining stable network operations by combining power and data delivery in a single device. Its management features help streamline network performance and ensure reliable communication between connected endpoints.

Use Cases
This switch is typically deployed in medium to large enterprise networks with demands for centralized power and data management. It suits environments that need organized rack installations and advanced traffic routing capabilities. How It's Used: Supporting VoIP phones and IP cameras in office buildings through PoE power delivery Enabling inter-VLAN routing in campus networks with Layer 3 features Providing high-speed connectivity in data centers with rack-mounted deployment Operating in SMB networks requiring both power and data over Ethernet Facilitating network segmentation and policy enforcement via managed settings By integrating power and data in one device, this switch helps maintain efficient network infrastructure. It supports scalable growth and precise traffic control, essential for dynamic IT environments.
