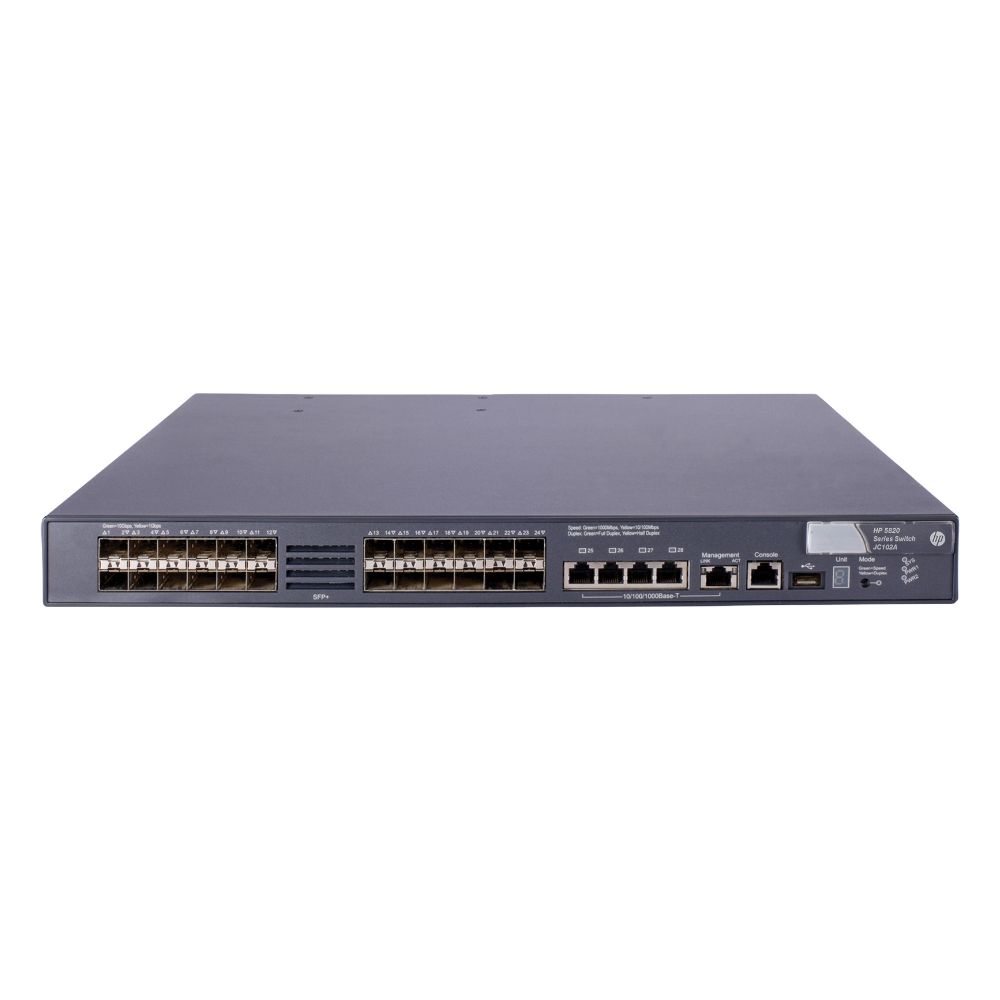

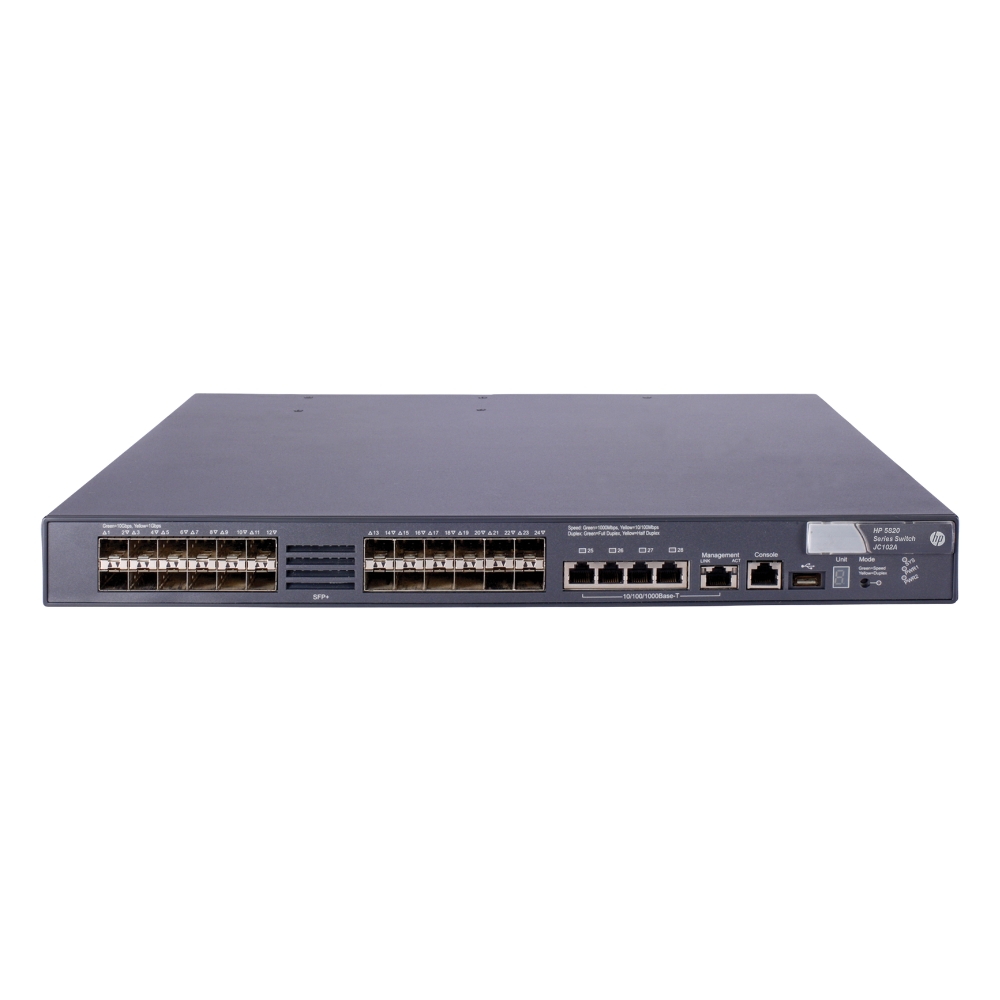

Name: JC102BR HP A5820-24XG-SFP+ 24 SFP+ 10GBase-X 4 RJ45 Switch
Brand: HP
SKU: JC102BR
Price: 649.00 USD
Availability: InStock
Rating: 4.8 (118 reviews)

Product Overview
The JC102BR - HP A5820-24XG-SFP+ switch combines a high port density of 10GBase-X fiber interfaces with a handful of RJ45 copper ports, fitting well into modern enterprise and data center networks. It provides network engineers with a flexible platform for handling high-speed data flows and managing network segments where both fiber and copper connectivity are needed.

General Information
Brand	HP
Condition	Refurbished

Technical Information
Switch Type	Layer 3, Managed Switch, Stackable Switch
Form Factor	Rack-Mountable
Mount Type	1U Rack
Switch Ports	24
Number of Ports	28-Ports
Port Type	10GBase-T, 10G SFP+, RJ-45, SFP+, USB Console, Serial Console (RJ-45)
Port Speed	10Gbps
UpLink Ports	4
POE Support	No
Switching Capacity	560 Gbps
Switch Forwarding Rate	1093.75 Mpps
VLAN Support	Yes
Max VLANs Supported	4094
Stackable	Yes
Layer Support	Layer 3
Connector Type	SFP+,RJ-45

Performance
Jumbo Frame Support	Up To 9216 Bytes
MAC Address Table Size	16000

Management and Configuration
Routing Protocols	Static, RIP, RIPng, OSPF, OSPFv3, BGP, VRRP, HSRP, PIM-SM, IGMP
Remote Protocols	Yes
Management Interfaces	CLI (Console/SSH/Telnet), Web GUI, SNMP v1/v2/v3, RMON
Security Features	ACL,802.1X,Port security,DHCP Snooping,IP Source Guard,Dynamic ARP Inspection,DoS protection,SSH,HTTPS
Management Type	Managed (In-band & Out-of-band)
Security	Yes
Remote Management Protocol	SNMPv1/v2/v3,SSH,Telnet,HTTP,HTTPS
Routing Protocol	Static,RIP,OSPF,BGP,VRRP,HSRP,IGMP,PIM-SM

Power & Cooling
Fans	Hot-swappable redundant fans
Power	100-240VAC, 50/60Hz
Power Supply	Internal AC power supply

Physical Characteristics
Weight	3.00
Operating Temperature	0°C to 45°C

Miscellaneous
Eco Friendly	Yes
Assembly Required	No
Compliance Standards	RoHS, CE, FCC, UL, cULus
Compliant Standards	IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3z,IEEE 802.3ae,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1D,IEEE 802.1w,IEEE 802.1s,IEEE 802.3ad,IEEE 802.1X

Product Description
The JC102BR - HP A5820-24XG-SFP+ is a network switch designed to deliver reliable 10 Gigabit Ethernet connectivity with a focus on fiber-optic interfaces combined with versatile copper ports. This switch is often found in enterprise, data center, and campus networks where high throughput and low latency are critical. Network administrators and IT professionals commonly use this switch to manage traffic and maintain network performance. Key Features High-density 10G SFP+ ports for scalable uplink and server connections RJ45 ports supporting multi-speed copper links for diverse device connectivity Comprehensive Layer 2 and Layer 3 features to enhance routing and switching Energy-efficient design reducing power consumption without compromising performance Robust hardware built for continuous operation and network reliability This switch plays a vital role in supporting network infrastructure by offering a balance between fiber and copper interfaces, thus accommodating mixed media environments. Its design ensures stable performance and operational consistency, meeting the demands of fast-paced network traffic and evolving IT requirements.

Use Cases
This switch is typically deployed in networks requiring high bandwidth and low latency, such as enterprise IT backbones, data center top-of-rack setups, and campus aggregation layers. Users benefit from its mix of fiber and copper ports which facilitates diverse device integrations and network segmentation. How It's Used: Connecting servers and storage systems in data center racks using SFP+ fiber links Aggregating traffic from multiple access switches in enterprise campus networks Supporting virtualization environments needing scalable 10G connectivity Facilitating link aggregation and redundancy for critical network paths Integrating copper-based network devices with fiber infrastructure in hybrid networks By supporting both fiber and copper connections with advanced switching capabilities, the JC102BR switch helps maintain efficient data flows and network stability in demanding environments. Its reliable operation supports growth and evolving network architectures without sacrificing performance.
