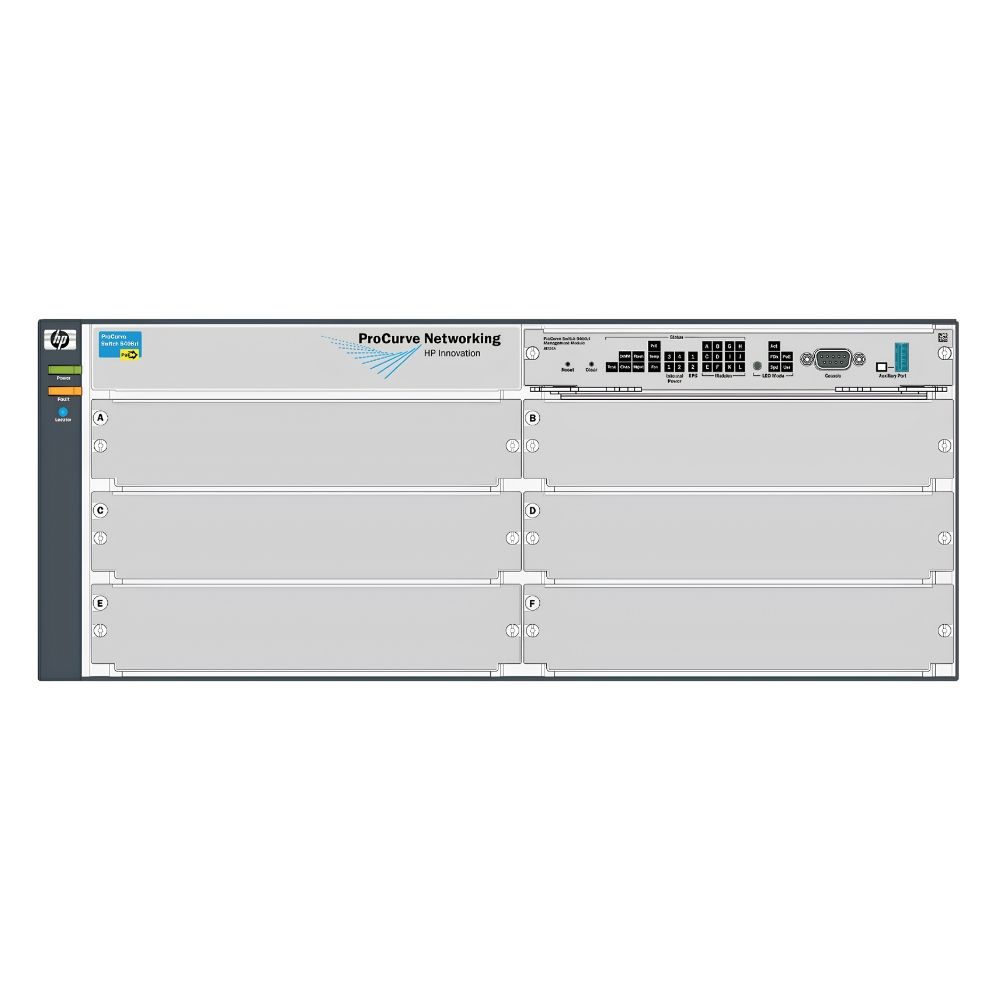

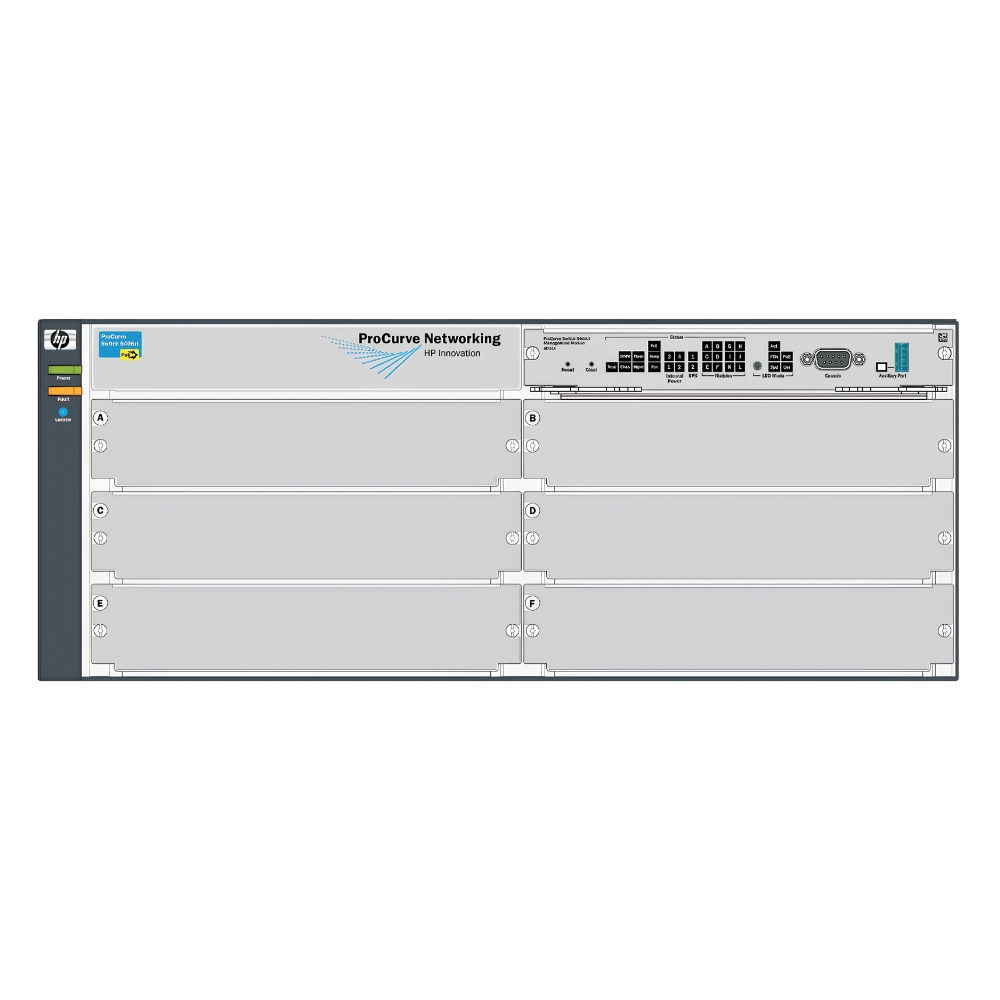

Name: J9866A HP 5406 8-Port + 8 SFP+ Layer 3 Managed Switch Rack-Mount
Brand: HP
SKU: J9866A
Price: 3908.09 USD
Availability: InStock
Rating: 4.8 (118 reviews)

Product Overview
The J9866A HP 5406 8-Port + 8-Port SFP+ Layer 3 Switch combines copper and fiber interfaces to deliver flexible connectivity options. Its design fits well within enterprise networks that demand routing and switching capabilities with moderate port density. The switch integrates routing features with a compact form, balancing performance and ease of management.

General Information
Brand	HP
Condition	Refurbished

Technical Information
Switch Type	Layer 3, Managed Switch, Gigabit Switch
Form Factor	Chassis-Based
Mount Type	Shelf Mount
Switch Ports	16
Number of Ports	16-Ports
Port Type	10/100/1000Base-T, 10G SFP+
Port Speed	1 Gbps,10 Gbps
UpLink Ports	8
POE Support	No
Switching Capacity	176 Gbps
VLAN Support	Yes
Max VLANs Supported	1-4094
NIM Slot	6
Stackable	Optional
Layer Support	Layer 3
Connector Type	RJ-45,SFP+

Performance
Jumbo Frame Support	Up To 9216 Bytes
MAC Address Table Size	32000

Management and Configuration
Routing Protocols	Static, RIP, OSPF, BGP, VRRP, PIM-SM, IGMP
Remote Protocols	Yes
Management Interfaces	Web GUI,Command Line (SSH/Telnet),SNMP,Serial Console
Security Features	Access Control Lists (ACLs),802.1X Authentication,MAC-based Port Security,SSH,SSL,Port Security,Storm Control
Management Type	Managed
Remote Management Protocol	SNMPv1/v2c/v3,SSH,Telnet,HTTP,HTTPS

Power & Cooling
Fans	Hot-swappable, redundant fans

Physical Characteristics
Weight	3.00
Operating Temperature	0°C to 45°C

Miscellaneous
Eco Friendly	Yes
Assembly Required	No
Compliance Standards	WEEE, RoHS, CE, FCC, cULus
Compliant Standards	IEEE 802.1Q,IEEE 802.1p,IEEE 802.3ad,IEEE 802.3x,IEEE 802.1D,IEEE 802.1s

Product Description
The J9866A HP 5406 switch provides a balanced mix of copper and fiber connectivity, enabling flexible network designs. It is commonly used in medium to large enterprise networks where Layer 3 routing capabilities and high throughput are required. Network administrators and IT teams benefit from its robust feature set and consistent performance. Key Features Offers 8 copper Gigabit Ethernet ports alongside 8 SFP+ 10GbE ports for diverse connection options Supports dynamic routing protocols to manage traffic efficiently across complex networks Provides segmentation and VLAN support to enhance network security and organization Equipped with reliable hardware designed for continuous operation in demanding environments Integrated management tools simplify configuration and monitoring tasks This switch plays a key role in maintaining network stability and scalability. Its balance of speed and versatility makes it a dependable component for infrastructure requiring consistent Layer 3 switching performance. Users can expect steady throughput and manageable configuration, contributing to overall network reliability.

Use Cases
This switch is typically deployed in enterprise and campus networking environments where multiple high-speed connections are needed. IT professionals managing network cores or aggregation layers find its mix of copper and fiber ports useful for linking diverse devices and segments. How It's Used: Aggregation switch in midsize enterprise networks connecting servers and user devices Layer 3 routing in campus LANs for efficient traffic management between subnets Data center edge switch providing 10GbE uplinks to core infrastructure Interconnecting storage clusters with high bandwidth demands via SFP+ ports Supporting virtualization environments requiring segmented network traffic and secure routing By handling routing and switching tasks reliably, the J9866A supports operational efficiency in various network setups. Its port configuration and protocol support help maintain scalable and structured network environments.
