| Product Overview |
|---|

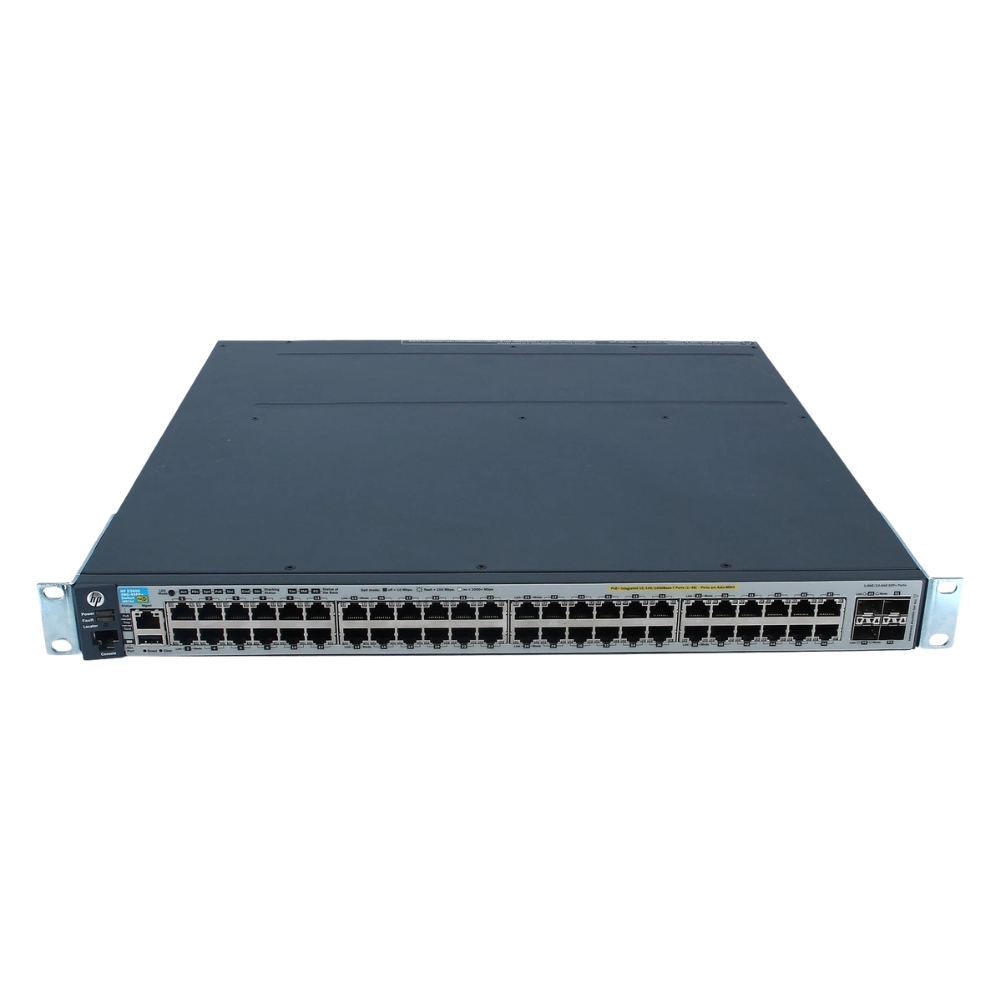

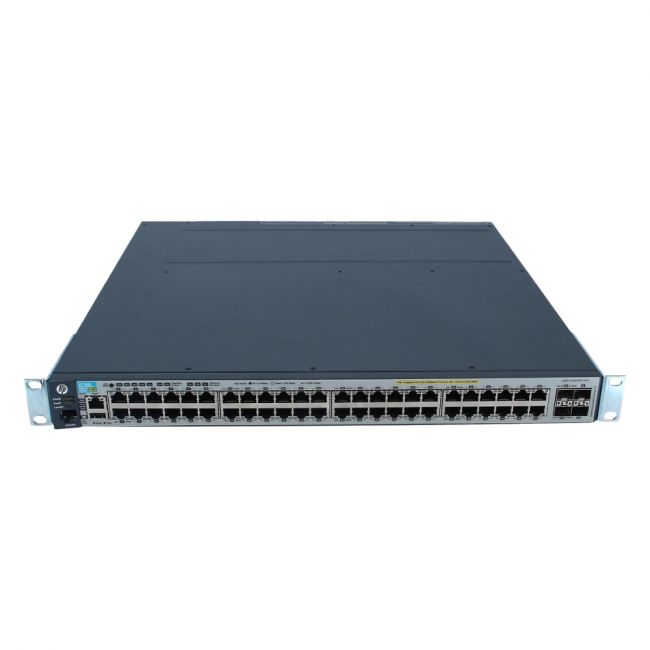

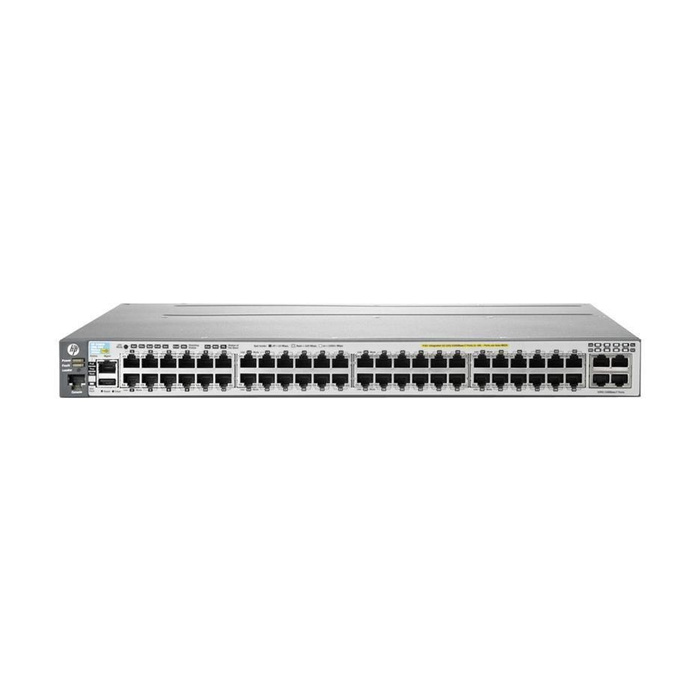

The J9588-61001 HP ProCurve 3800-48G-PoE+-4XG switch combines 48 PoE+ Gigabit Ethernet ports with 4 high-speed SFP+ uplinks to provide flexible connectivity and powerful Layer-3 routing functions. It fits well as a core or distribution switch in enterprise environments, supporting both data and powered device needs while enabling efficient network segmentation and management. |
| General Information | |
|---|---|
| Brand | HP |
| Condition | Refurbished |
| Technical Information | |
|---|---|
| Switch Type | Layer 3, Managed Switch, Stackable Switch, PoE Switch, Gigabit Switch |
| Form Factor | Rack-Mountable |
| Mount Type | 1U Rack |
| Switch Ports | 48 |
| Number of Ports | 48-Ports |
| Port Type | 10/100/1000Base-T, 10G SFP+, RJ-45, USB Console, Serial Console (RJ-45) |
| Port Speed | 10/100/1000Base-T |
| UpLink Ports | 4 x 10G SFP+ |
| POE Support | PoE+ |
| Switching Capacity | 176 Gbps |
| Switch Forwarding Rate | 343.75 Mpps |
| DRAM | 256 MB |
| Flash Memory | 128 MB |
| VLAN Support | Yes |
| Max VLANs Supported | 4094 |
| Stackable | Yes |
| Layer Support | Layer 3 |
| Connector Type | RJ-45,SFP+ |
| Performance | |
|---|---|
| Jumbo Frame Support | Up To 9216 Bytes |
| MAC Address Table Size | 32768 |
| Management and Configuration | |
|---|---|
| Routing Protocols | Static, RIP, OSPF, VRRP, IGMP |
| Remote Protocols | Yes |
| Management Interfaces | Web GUI, Command Line Interface (CLI), SNMPv1/v2c/v3, SSH, Telnet, Console (RJ-45), USB |
| Security Features | Access Control Lists (ACLs), 802.1X authentication, RADIUS/TACACS+, Port security, DHCP snooping, BPDU Guard, Storm control, ARP protection |
| Management Type | Managed |
| Security | Yes |
| Remote Management Protocol | SNMP,SSH,Telnet,HTTP,HTTPS |
| Routing Protocol | Static,RIP,OSPF |
| Power & Cooling | |
|---|---|
| Fans | Yes (internal) |
| Power | 100-240 VAC input; PoE+ budget up to ~740 W (model/config dependent) |
| Power Supply | Internal AC power supply 100-240VAC, 50/60Hz |
| Physical Characteristics | |
|---|---|
| Dimensions | 1.73 x 17.32 x 18.11 in (44 x 440 x 460 mm) |
| Weight | 3.00 |
| Operating Temperature | 0°C to 45°C |
| Miscellaneous | |
|---|---|
| Eco Friendly | Yes |
| Assembly Required | No |
| Compliance Standards | WEEE, RoHS, CE, FCC, UL |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ae (10GbE), IEEE 802.1Q, IEEE 802.1p, IEEE 802.1D, IEEE 802.1s, IEEE 802.1X, IEEE 802.3af/at |
| Product Description |
|---|
The J9588-61001 HP ProCurve 3800-48G-PoE+-4XG is a fully managed Layer-3 switch offering a combination of high-density Gigabit Ethernet ports with PoE+ and 10Gbps SFP+ uplinks. It is commonly found in medium to large-scale networks where reliable power over Ethernet and advanced network management capabilities are needed. Built for IT professionals and network administrators, this switch handles routing, traffic segmentation, and high bandwidth demands effectively. It often supports environments requiring flexible connectivity options and robust traffic management. Key Features
This switch is a key component in managing network traffic efficiently and securely. Its reliability and Layer-3 capabilities ensure steady operation under demanding network loads. The balance between port density, PoE+ power delivery, and 10Gbps uplinks makes it suitable for evolving network infrastructures requiring scalability and control. |
| Use Cases |
|---|
This switch is often deployed in enterprise and campus networks where high port density and PoE+ power delivery are essential. It supports environments that require both wired connectivity for numerous devices and high-speed uplinks for backbone traffic. How It's Used:
The switch's capabilities help maintain operational efficiency and network performance across complex setups. Its power and data delivery combined with routing features allow network teams to scale and manage infrastructure without compromising on speed or reliability. |
