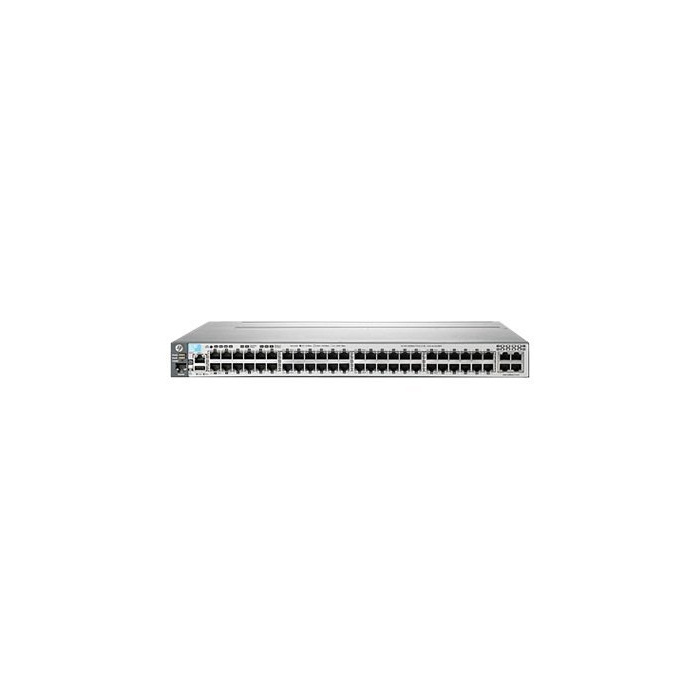

Name: J9586A#ABA HP 3800-48G-4XG 48-Port Gigabit + 4-Port SFP+ Layer 3 Switch
Brand: HP
SKU: J9586A#ABA
Price: 444.00 USD
Availability: InStock
Rating: 4.8 (114 reviews)

Product Overview
The HP 3800-48G-4XG 48-Port + 4-Port SFP+ Layer 3 Switch combines high-density gigabit connectivity with advanced Layer 3 routing. It fits into network environments where both large-scale device connections and efficient data routing are essential, providing a balance between port availability and uplink performance without unnecessary complexity.

General Information
Brand	HP
Condition	Refurbished

Technical Information
Switch Type	Layer 3, Managed Switch, Stackable Switch, Gigabit Switch
Form Factor	Rack-Mountable
Mount Type	1U Rack
Switch Ports	48
Number of Ports	52-Ports
Port Type	10/100/1000Base-T, RJ-45, SFP+, USB Console, Serial Console (RJ-45)
Port Speed	10/100/1000Base-T,10G SFP+
UpLink Ports	4
POE Support	No
Switching Capacity	176 Gbps
Switch Forwarding Rate	343.75 Mpps (64-byte)
DRAM	256 MB
Flash Memory	64 MB
VLAN Support	Yes
Max VLANs Supported	4094
Stackable	Optional
Layer Support	Layer 3
Connector Type	RJ-45,SFP+,USB Console,Serial Console (RJ-45)

Performance
Jumbo Frame Support	Up To 9216 Bytes
MAC Address Table Size	32000

Management and Configuration
Routing Protocols	Static, RIP, OSPF, VRRP, PIM-SM, IGMP
Remote Protocols	Yes
Management Interfaces	Web GUI, CLI (SSH/Telnet), SNMP, RMON, HTTP/HTTPS, Console (RJ-45), USB
Security Features	802.1X, ACLs, SSH/SSL, MAC authentication, Port security, RADIUS/TACACS+, DHCP Snooping, BPDU Guard, Storm Control
Management Type	Managed
Security	Yes
Remote Management Protocol	SNMPv1/v2c/v3, SSH, Telnet, HTTP/HTTPS
Routing Protocol	Static,RIP,OSPF,VRRP

Power & Cooling
Fans	2 (internal, variable-speed, hot-swappable)
Power	AC 100-240V, 50/60Hz; typical ~70W, maximum ~150W
Power Supply	Internal AC power supply (100-240V)

Physical Characteristics
Dimensions	1.69 x 17.32 x 13.78 in (43 x 440 x 350 mm)
Weight	3.00
Operating Temperature	0°C to 45°C

Miscellaneous
Eco Friendly	Yes
Assembly Required	No
Compliance Standards	WEEE, RoHS, CE, FCC, UL
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ae, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.1D, IEEE 802.1w

Product Description
The HP 3800-48G-4XG Layer 3 switch offers a combination of high port density and advanced routing features tailored for robust network environments. Typically found in enterprise and data center settings, it supports both high-speed access and uplink connections to maintain efficient network performance. Network administrators and IT professionals often rely on this switch for its balance of scalability and functionality. Key Features Offers 48 ports of Gigabit Ethernet to accommodate numerous devices Includes 4 SFP+ ports for flexible 10 Gigabit fiber or copper connections Supports Layer 3 routing protocols to facilitate inter-VLAN routing and network segmentation Equipped with hardware acceleration for optimized data forwarding Integrates power-saving features to reduce operational costs This switch plays a crucial role in maintaining network reliability and performance through its solid routing capabilities and extensive port availability. Its design supports the demands of growing network infrastructures without sacrificing stability or speed, making it a dependable choice for managing complex traffic flows.

Use Cases
This switch is commonly deployed in medium to large enterprise networks and data centers where dense device connectivity and robust routing are required. It supports environments that need reliable aggregation and distribution layers to maintain smooth and secure network operations. How It's Used: Aggregating multiple access switches in campus network environments for streamlined traffic flow Serving as a core or distribution switch within enterprise IT infrastructures to segregate and route traffic efficiently Connecting server farms and storage clusters where high-speed uplinks are necessary Supporting virtualized data centers with advanced Layer 3 capabilities for better network segmentation Facilitating edge computing deployments with dense port requirements and high throughput demands By integrating this switch into these network settings, organizations benefit from improved operational efficiency and scalable network performance. It supports sustained data throughput and flexible routing that align with evolving infrastructure needs.
