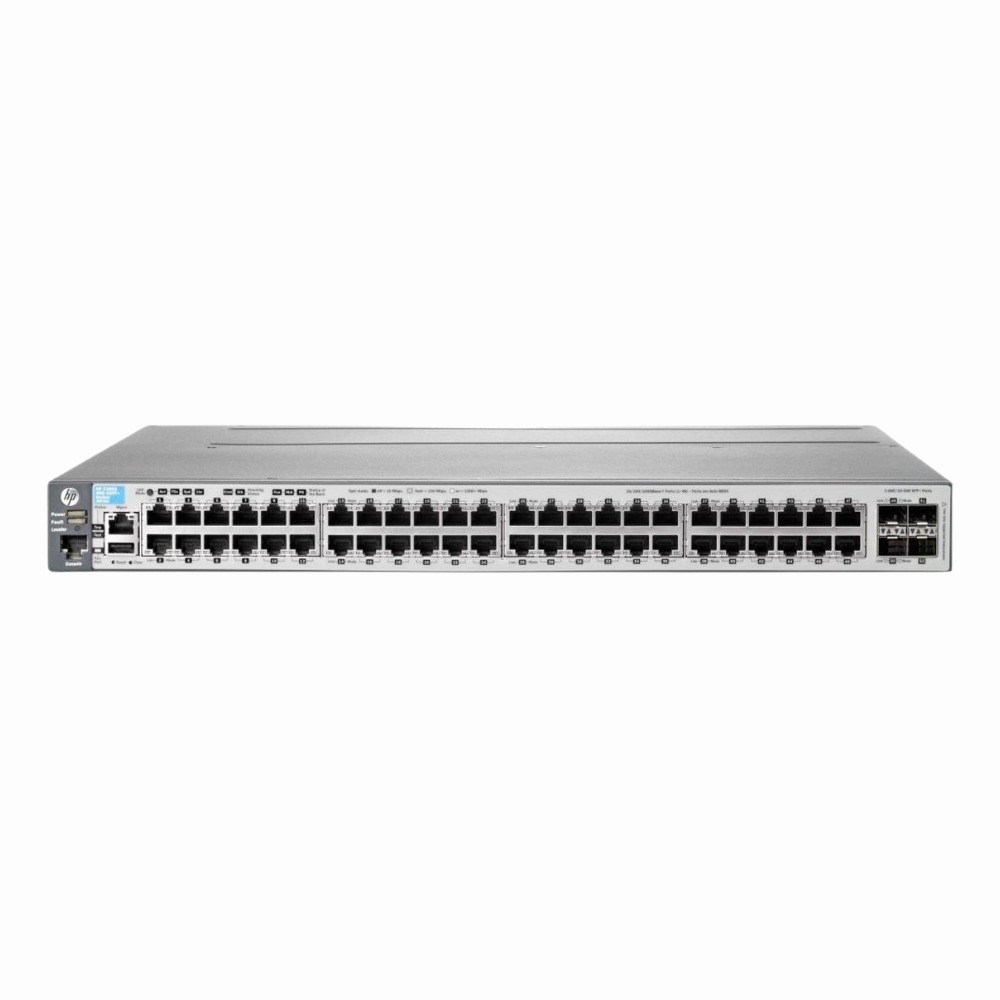

Name: J9586-61101 HP 3800 Series 3800-48G-4XG 48 x RJ-45 Ports 10/100/1000Base-T + 4 x SFP+ Ports Layer 4 Managed Rack-mountable Gigabit Ethernet Network Switch
Brand: HP
SKU: J9586-61101
Price: 241.00 USD
Availability: InStock
Rating: 4.8 (119 reviews)

Product Overview
The HP 3800 Series 3800-48G-4XG switch offers a blend of wired port density and flexible fiber options, fitting well into business networks that require both speed and control. It manages traffic at the Layer 4 level, which helps networks handle diverse and demanding applications smoothly while being mounted conveniently in racks for organized setups.

General Information
Brand	HP
Part Number	J9586-61101
Condition	Refurbished

Technical Information
Switch Ports	48
Number of Ports	48-Ports
Port Type	10/100/1000Base-T, SFP+
Port Speed	10/100/1000Base-T,10G (SFP+)
UpLink Ports	4
POE Support	No
Switching Capacity	176 Gbps
Switch Forwarding Rate	343.75 Mpps
DRAM	256 MB
Flash Memory	64 MB
VLAN Support	Yes
Max VLANs Supported	1-4094
Stackable	No
Layer Support	Layer 4
Connector Type	RJ-45,SFP+

Performance
Jumbo Frame Support	Up To 9216 Bytes
MAC Address Table Size	16000

Management and Configuration
Routing Protocols	Static, RIP, OSPF
Remote Protocols	Yes
Management Interfaces	Web GUI, Command Line Interface (CLI), SNMPv1/v2/v3, SSH, Telnet, RMON
Security	802.1X, ACLs
Remote Management Protocol	SNMP,HTTP,HTTPS,SSH,Telnet
Routing Protocol	Static

Power & Cooling
Power	Approximately 80-100 W (typical, non-PoE)

Physical Characteristics
Weight	5.00
Operating Temperature	0 to 45 C

Miscellaneous
Compliance Standards	RoHS, CE, FCC, UL
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p, IEEE 802.1q, IEEE 802.1d, IEEE 802.1w

Product Description
The HP 3800 Series 3800-48G-4XG is designed to handle robust network demands with a combination of 48 gigabit RJ-45 ports and 4 high-speed SFP+ uplinks. Built for enterprise environments, it offers fine-grained traffic management and enhanced security features, helping maintain smooth data flow and network reliability. Often found in medium to large business networks, it supports a range of applications from file sharing to VoIP and video conferencing. Key Features Advanced Layer 4 switching capabilities for efficient traffic handling Flexible port options including both copper and fiber connections Comprehensive QoS and security controls to prioritize critical data Easy integration into standard 19-inch racks for space optimization Supports link aggregation to boost bandwidth between devices This switch is typically deployed in data centers, server rooms, or network hubs where reliable, high-speed connections are essential. Its management features make it a practical choice for IT teams looking to optimize network performance without complicated setups.

Use Cases
The HP 3800 Series 3800-48G-4XG switch is ideal for medium to large enterprise network environments where high port density and advanced traffic management are critical. It serves organizations requiring robust Layer 4 control, such as corporate IT departments or data center edge switches that need to optimize application flows while maintaining scalability and reliability. How It's Used: Deploying in enterprise wiring closets to provide high-density Gigabit connectivity for user workstations and IP phones. Aggregating traffic in campus networks requiring flexible 10GbE uplinks to core switches or servers. Supporting virtualization environments by managing diverse traffic types with Layer 4 policies for prioritization and security. Utilizing rack-mounted configurations in edge data centers to connect multiple access switches with high throughput needs. Implementing in SMB networks that anticipate growth and need advanced traffic shaping and network segmentation features. This switch enhances operational efficiency by enabling granular traffic control and seamless integration with fiber uplinks, supporting evolving network demands. Its design accommodates dense port deployment and scalable bandwidth, facilitating streamlined management and performance consistency across complex IT infrastructures.
