| Product Overview |
|---|

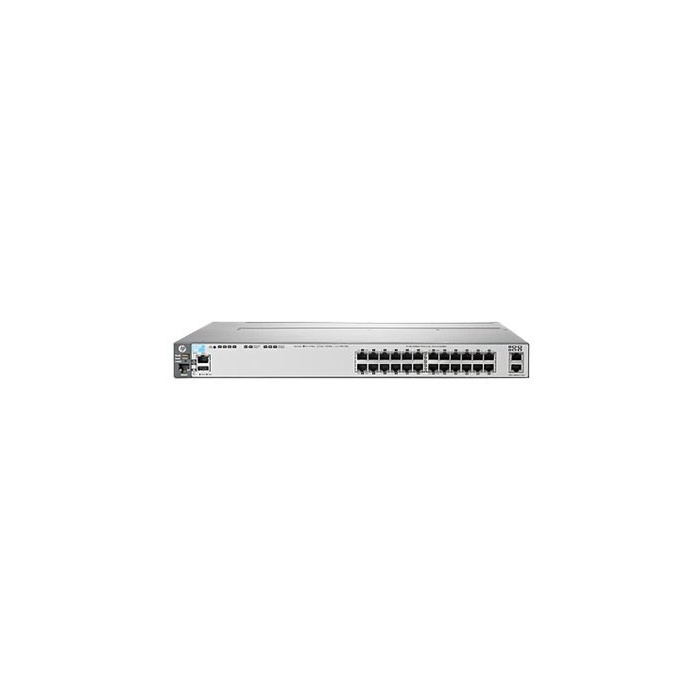

The J9585A#ABA - HP 3800-24G-2XG is a Layer 3 switch offering 24 Gigabit Ethernet ports and 2 10-Gigabit uplinks. It fits well within enterprise networks requiring efficient traffic routing and robust connectivity. This switch balances port density with performance for network segments demanding both speed and reliability. |
| General Information | |
|---|---|
| Brand | HP |
| Condition | Refurbished |
| Technical Information | |
|---|---|
| Switch Type | Layer 3, Managed Switch, Stackable Switch, Gigabit Switch |
| Form Factor | Standalone |
| Mount Type | 1U Rack |
| Switch Ports | 24 |
| Number of Ports | 26-Ports |
| Port Type | 10/100/1000Base-T, 10G SFP+, Serial Console (RJ-45) |
| Port Speed | 1 Gbps,10 Gbps |
| UpLink Ports | 2 x 10G SFP+ |
| POE Support | No |
| Switching Capacity | 128 Gbps |
| Switch Forwarding Rate | 95.24 Mpps |
| DRAM | 256 MB |
| Flash Memory | 64 MB |
| VLAN Support | Yes |
| Max VLANs Supported | 1-4094 (Max 4094) |
| Stackable | Optional |
| Layer Support | Layer 3 |
| Connector Type | RJ-45,SFP+ |
| Performance | |
|---|---|
| Jumbo Frame Support | Up To 9216 Bytes |
| MAC Address Table Size | 16000 |
| Management and Configuration | |
|---|---|
| Routing Protocols | Static, RIP, VRRP |
| Remote Protocols | Yes |
| Management Interfaces | Web GUI (HTTP/HTTPS), CLI (Console/SSH), SNMP v1/v2c/v3, Telnet |
| Security Features | ACLs,802.1X authentication,SSH, RADIUS, TACACS+, Port security, BPDU Guard, DHCP Snooping, Dynamic ARP Inspection |
| Management Type | Managed |
| Remote Management Protocol | SNMPv1/v2c/v3,SSH,Telnet,HTTP/HTTPS |
| Routing Protocol | Static,RIP |
| Power & Cooling | |
|---|---|
| Fans | Yes (internal, front-to-back) |
| Power | 100-240VAC, 50-60Hz; typical ~70W, max ~100W |
| Power Supply | Internal universal AC power supply (100-240VAC) |
| Physical Characteristics | |
|---|---|
| Dimensions | 1.73 x 17.32 x 16.54 inches |
| Weight | 3.00 |
| Operating Temperature | 0°C to 45°C |
| Miscellaneous | |
|---|---|
| Assembly Required | No |
| Compliance Standards | WEEE, RoHS, CE, FCC, cULus |
| Compliant Standards | IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3z,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1D,IEEE 802.1w,IEEE 802.1X,IEEE 802.3ad,IEEE 802.3x |
| Product Description |
|---|
The J9585A#ABA - HP 3800-24G-2XG switch provides a combination of high-density Gigabit Ethernet ports with enhanced Layer 3 routing features. Often found in enterprise and campus networks, it is built to manage traffic efficiently and support demanding network loads. This switch is commonly deployed by network administrators and IT professionals who require reliable, scalable hardware to maintain smooth data flow and network segmentation in complex environments. Key Features
This switch plays a vital role in structuring network traffic and improving overall performance. It stands out for its consistency in maintaining stable connections and handling complex routing without compromising speed. Its reliable design ensures continuous operation in demanding environments, supporting both current and future networking needs with effective performance. |
| Use Cases |
|---|
This switch is typically implemented in enterprise and campus network environments where robust Layer 3 routing and multiple high-speed connections are essential. IT teams handling medium to large network infrastructures benefit from the device’s routing and switching capabilities tailored for scalable setups. How It's Used:
By combining Layer 3 functionality with a mix of 1G and 10G ports, this switch supports operational efficiency and scalability. It ensures consistent performance, making it suitable for environments where reliable data flow and network management are priorities. |
