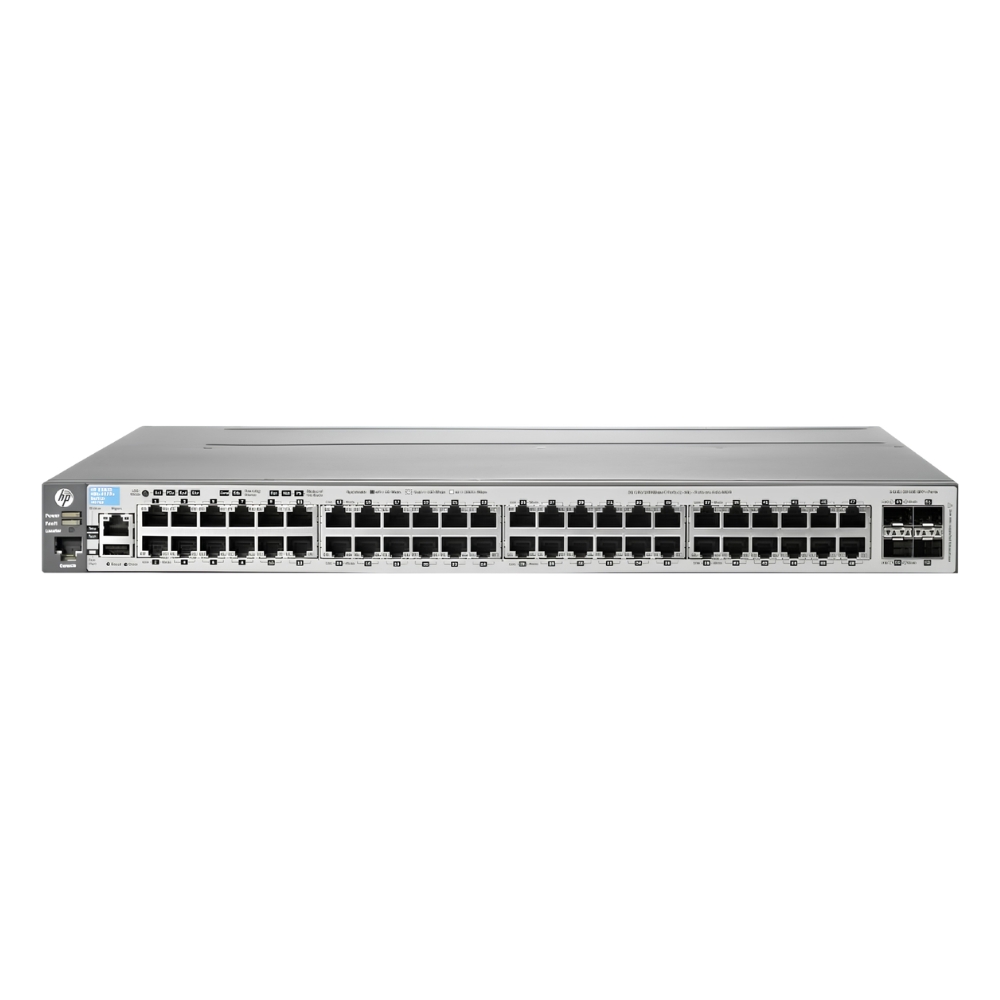

Name: J9576-61001 HP 3800-48G 48-Port 10/100/1000Base-T Layer-3 Managed Switch
Brand: HP
SKU: J9576-61001
Price: 184.00 USD
Availability: InStock
Rating: 4.8 (119 reviews)

Product Overview
The J9576-61001 HP 3800-48G combines a high port count of gigabit Ethernet interfaces with advanced Layer-3 management and 10G SFP+ uplinks. It fits within enterprise environments needing scalable and flexible network hardware that bridges routing and switching capabilities in a single platform.

General Information
Brand	HP
Condition	Refurbished

Technical Information
Switch Type	Layer 3, Managed Switch, Gigabit Switch
Form Factor	Rack-Mountable
Mount Type	1U Rack
Switch Ports	48
Number of Ports	48-Ports
Port Type	10/100/1000Base-T, 10G SFP+
Port Speed	10/100/1000,10G
UpLink Ports	2
POE Support	No
Switching Capacity	136 Gbps
Switch Forwarding Rate	132.81 Mpps
VLAN Support	Yes
Max VLANs Supported	4094
Stackable	Optional
Layer Support	Layer 3
Connector Type	RJ-45,SFP+,USB Console,Serial Console (RJ-45)

Performance
Jumbo Frame Support	Up To 9216 Bytes

Management and Configuration
Routing Protocols	Static, RIP, OSPF
Remote Protocols	Yes
Management Interfaces	Web GUI,CLI (SSH/Telnet),SNMP (v1/v2c/v3),Console (RJ-45),USB
Security Features	ACLs,802.1X,RADIUS/TACACS+,MAC authentication,Port security,Storm control,SSH,SSL
Management Type	In-Band,Out-of-Band
Security	Yes
Remote Management Protocol	SNMP,SSH,Telnet,HTTP/HTTPS,RMON
Routing Protocol	Layer 3 (Static,RIP,OSPF)

Power & Cooling
Fans	Yes (internal, variable-speed)
Power Supply	Internal AC (100-240V)

Physical Characteristics
Weight	3.00
Operating Temperature	0°C to 45°C

Miscellaneous
Assembly Required	No
Compliance Standards	RoHS, CE, FCC, cULus
Compliant Standards	IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1D,IEEE 802.1X,IEEE 802.3ad

Product Description
The J9576-61001 HP 3800-48G is a Layer-3 managed Ethernet switch designed to handle demanding network environments. It offers a combination of 48 gigabit copper ports along with 2 SFP+ slots that support 10 GbE connections, providing both flexibility and scalability. This switch is often found in enterprise data centers and distribution layers where routing and switching functions need to be integrated. Built for network administrators and IT professionals, this switch facilitates detailed management and control of network traffic. Its Layer-3 capabilities allow for efficient routing between different VLANs and subnets, enhancing overall network performance and segmentation. Key Features Integrated Layer-3 switching with static and dynamic routing protocols Dual SFP+ ports for 10 Gbps uplink or stacking options High port density with 48 Gigabit Ethernet interfaces Advanced QoS and security features to maintain network reliability Supports VLAN tagging and comprehensive traffic management This switch plays a vital role in streamlining network operations by combining multiple functionalities into one device. Its reliability and performance make it a solid choice for networks requiring both high throughput and enhanced control. Overall, the HP 3800-48G delivers consistent and manageable connectivity, supporting evolving network infrastructures without compromising on speed or security.

Use Cases
The HP 3800-48G switch is typically deployed in enterprise networks where high-density gigabit switching and Layer-3 routing are required. IT teams managing campus networks or branch office environments benefit from its comprehensive feature set and modular uplink options. How It's Used: In data center access layers connecting servers with gigabit speeds and fiber uplinks To enable inter-VLAN routing in medium-sized enterprise LANs for improved traffic segmentation As a core switch in branch offices supporting voice, video, and data traffic Within managed service provider networks for customer edge routing and switching In virtualization environments requiring efficient traffic management and security policies This switch supports operational efficiency by consolidating routing and switching tasks, reducing the need for multiple devices. Its scalability and management features help maintain consistent network performance as demands grow.
