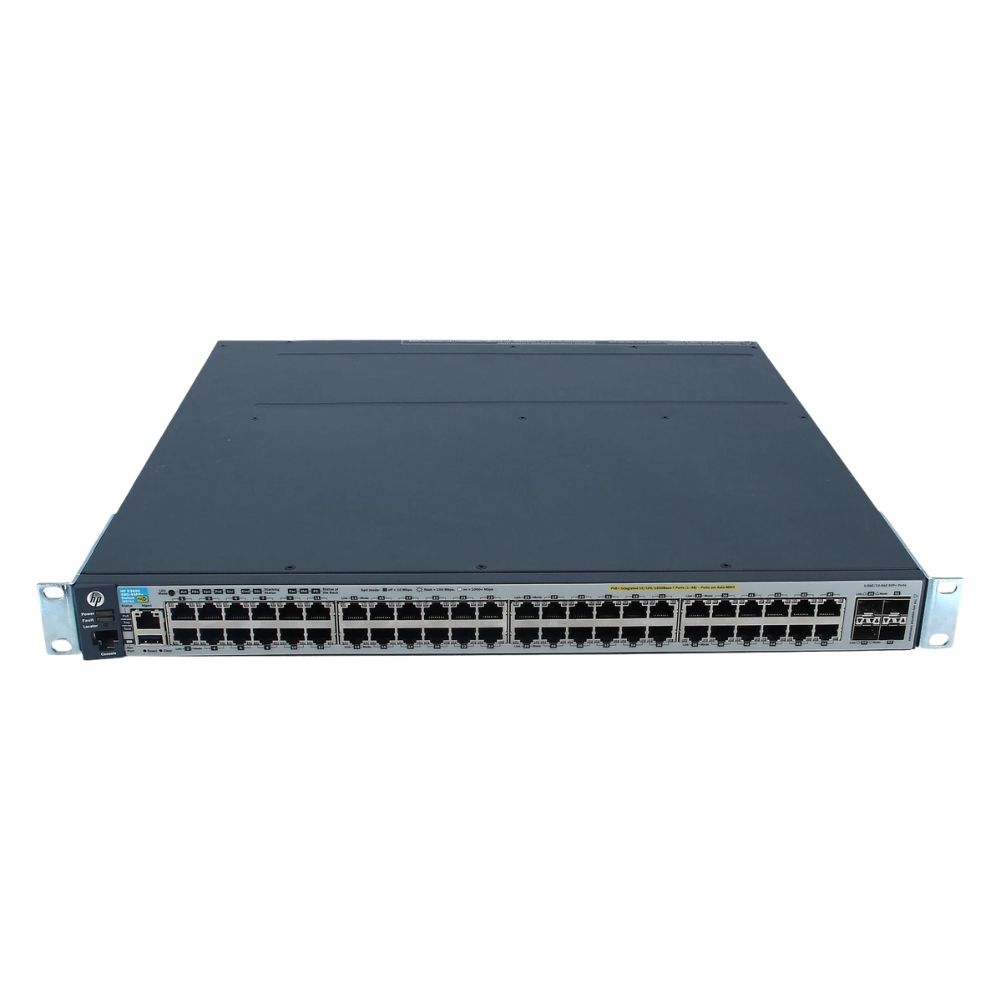

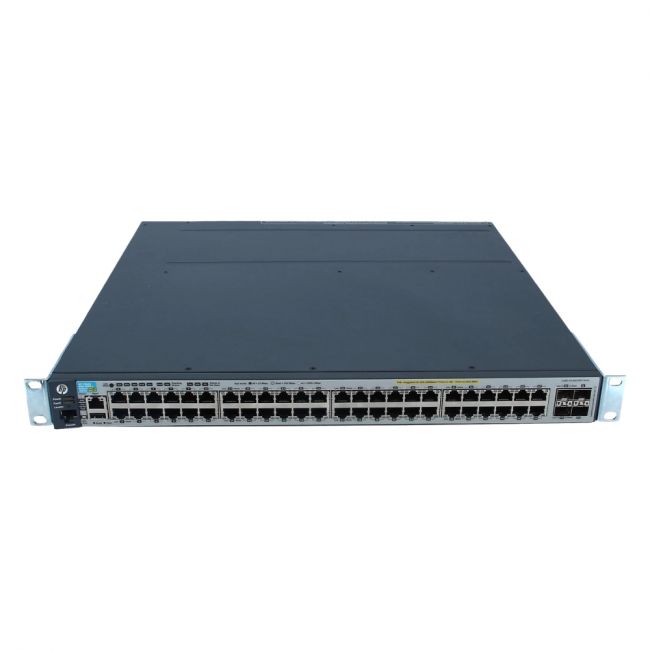

Name: J9574-61001-0PSU HP 3800-48G-PoE+ 48-Port Gigabit PoE+ Switch with 4 SFP+
Brand: HP
SKU: J9574-61001-0PSU
Price: 541.00 USD
Availability: InStock
Rating: 4.8 (114 reviews)

Product Overview
The J9574-61001-0PSU HP 3800-48G-PoE+-4SFP+ Switch combines extensive port density with enhanced uplink speeds, fitting well into enterprise network setups. It supports seamless data and power management, providing a stable backbone for connected devices and applications.

General Information
Brand	HP
Condition	Refurbished

Technical Information
Switch Type	Layer 3, Managed Switch, Stackable Switch, PoE Switch, Gigabit Switch
Form Factor	Rack-Mountable
Mount Type	1U Rack
Switch Ports	48
Number of Ports	52-Ports
Port Type	10/100/1000Base-T, 10G SFP+, RJ-45, SFP+
Port Speed	10/100/1000Base-T (1 Gbps), 10 Gbps (SFP+)
UpLink Ports	4 x 10G SFP+
POE Support	PoE+
Switching Capacity	176 Gbps
Switch Forwarding Rate	343.75 Mpps
DRAM	512 MB
Flash Memory	256 MB
VLAN Support	Yes
Max VLANs Supported	4094
Stackable	Yes
Layer Support	Layer 3
Connector Type	RJ-45,SFP+

Performance
Jumbo Frame Support	Up To 9216 Bytes
MAC Address Table Size	32,000

Management and Configuration
Routing Protocols	Static, RIP, OSPF, VRRP
Remote Protocols	Yes
Management Interfaces	Web GUI (HTTP/HTTPS), CLI (SSH/Telnet), SNMPv1/v2c/v3, RMON, OOB management
Security Features	802.1X, ACLs, Port security/MAC limiting, DHCP snooping, BPDU Guard, Storm control
Management Type	Managed
Remote Management Protocol	SNMP, SSH, Telnet, HTTP, HTTPS
Routing Protocol	Static, RIP

Power & Cooling
Fans	Internal variable-speed fans (front-to-back)
Power	PoE budget up to 740W (platform dependent); typical non-PoE power ~100W
Power Supply	Internal AC power supply (100-240 VAC)

Physical Characteristics
Dimensions	1.73 x 17.32 x 16.5 in
Weight	3.00
Operating Temperature	0 to 45 C

Miscellaneous
Eco Friendly	Yes
Assembly Required	No
Compliance Standards	WEEE, RoHS, CE, FCC, cULus
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1X, IEEE 802.3af, IEEE 802.3at

Product Description
The J9574-61001-0PSU HP 3800-48G-PoE+-4SFP+ Switch is built to manage extensive network traffic with a combination of numerous Gigabit ports and high-speed uplinks. It is commonly found in enterprise and data center environments where reliable, scalable network infrastructure is essential. IT professionals and network administrators often rely on this switch to provide consistent power and data connectivity across multiple endpoints. Key Features Equipped with 48 PoE+ ports to power devices directly through the network cable Four 10Gb SFP+ ports ensure fast uplink capabilities and flexible network topology Supports a range of VLANs and security protocols for segmented and secure networking Designed for high availability and minimal downtime with resilient hardware components Efficient management options allow fine-tuning of traffic and device access This switch plays a critical role in maintaining smooth and efficient network operations, handling both data transfer and power delivery in a single platform. It delivers consistent throughput and reliability, making it a dependable choice for organizations that demand stable network infrastructure.

Use Cases
This switch is typically deployed in environments that require both significant data throughput and power delivery over Ethernet, such as enterprise office floors and campus networks. Network operators who manage large device counts and need flexible uplink options benefit from its features. How It's Used: Supporting IP telephony systems and wireless access points in corporate networks Serving as a core switch in medium-sized data centers with high port demand Providing connectivity and power to surveillance cameras in security-focused installations Enabling network segmentation and traffic prioritization in complex enterprise architectures Facilitating uplink aggregation to higher-speed network backbones By offering a combination of PoE+ capabilities with high-speed uplinks, this switch supports scalable and efficient network designs. It helps maintain network stability and performance across busy infrastructure environments.
