| Product Overview |
|---|

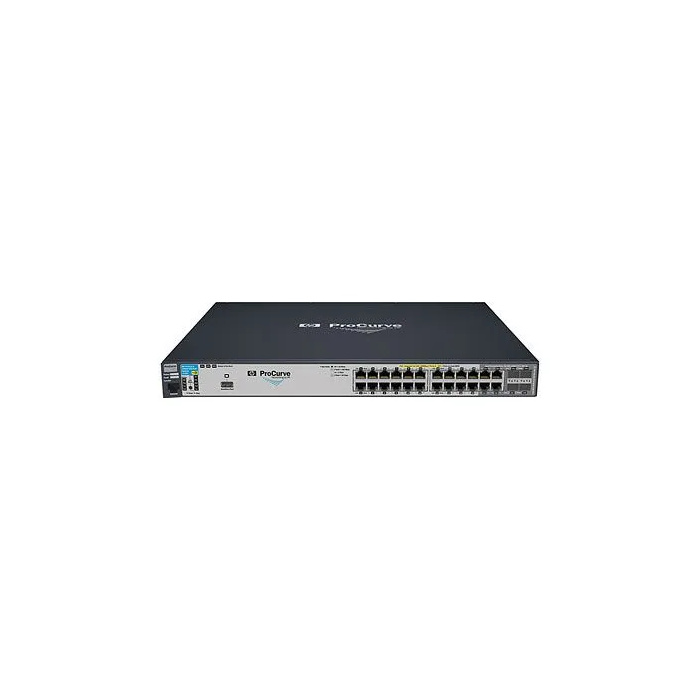

The J9146-61001 HP 2910al-24G-PoE+ switch offers a blend of PoE+ power delivery and Layer 3 routing to support various network setups. It fits well in enterprise settings needing both efficient data handling and device powering, providing a versatile approach to network connectivity without excessive complexity. |
| General Information | |
|---|---|
| Brand | HP |
| Condition | Refurbished |
| Technical Information | |
|---|---|
| Switch Type | Layer 3, Managed Switch, Stackable Switch, PoE Switch, Gigabit Switch |
| Form Factor | Standalone |
| Mount Type | 1U Rack, Desktop |
| Switch Ports | 24 |
| Number of Ports | 24-Ports |
| Port Type | 10/100/1000Base-T, 1000Base-X, USB Console, Serial Console (RJ-45) |
| Port Speed | 10/100/1000Base-T |
| UpLink Ports | 4 |
| POE Support | PoE+ |
| Switching Capacity | 56 Gbps |
| Switch Forwarding Rate | 109.375 Mpps |
| DRAM | 128 MB |
| Flash Memory | 32 MB |
| VLAN Support | Yes |
| Max VLANs Supported | 1-4094 |
| Stackable | Yes |
| Layer Support | Layer 3 |
| Connector Type | RJ-45,SFP,USB Console,Serial Console (RJ-45) |
| Performance | |
|---|---|
| Jumbo Frame Support | Up To 9216 Bytes |
| MAC Address Table Size | 16000 |
| Management and Configuration | |
|---|---|
| Routing Protocols | Static, RIP, OSPF, VRRP, IGMP |
| Remote Protocols | Yes |
| Management Interfaces | CLI,Web (HTTP/HTTPS),SNMPv1/v2c/v3,SSH,Telnet,Console (RJ-45),USB |
| Security Features | 802.1X,ACLs,Port security,MAC authentication,RADIUS/TACACS+,SSH/SSL,DHCP snooping,Storm control |
| Management Type | Managed |
| Security | Yes |
| Remote Management Protocol | SNMP,SSH,Telnet,HTTP,HTTPS |
| Routing Protocol | Static,RIP |
| Power & Cooling | |
|---|---|
| Fans | Internal variable-speed fan |
| Power | 100-240 VAC, 50-60 Hz; PoE+ budget 370W |
| Power Supply | Internal AC power supply (integrated) |
| Physical Characteristics | |
|---|---|
| Dimensions | 1.75 x 17.32 x 17.8 in |
| Weight | 3.00 |
| Operating Temperature | 0°C to 45°C (32°F to 113°F) |
| Miscellaneous | |
|---|---|
| Eco Friendly | Yes |
| Assembly Required | No |
| Compliance Standards | WEEE, RoHS, CE, FCC, UL, cULus |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at |
| Product Description |
|---|
The J9146-61001 HP 2910al-24G-PoE+ is a Layer 3 switch designed to manage network traffic efficiently while providing power over Ethernet to connected devices. Often found in enterprise and campus networks, this switch balances data throughput with network management flexibility. Built for IT professionals overseeing mid-sized to large network infrastructures, it accommodates both copper and fiber connections to support diverse network designs. Its routing features assist administrators in handling internal traffic without relying solely on external routers. Key Features
This switch serves as a reliable backbone component, balancing power delivery and high-speed data switching. Its flexible port configuration and routing functions make it suitable for growing networks requiring dependable performance and adaptability. The device's solid build ensures consistent operation in demanding IT environments. |
| Use Cases |
|---|
This switch is typically deployed in enterprise and educational campus networks where both high data throughput and power delivery to edge devices are essential. Network administrators and IT teams benefit from its routing and PoE+ capabilities which support a range of connected hardware. How It's Used:
By combining routing functions with power delivery, this switch supports efficient network scaling and simplifies infrastructure management. It helps maintain performance consistency and operational flexibility in complex network environments. |
