| Product Overview |
|---|

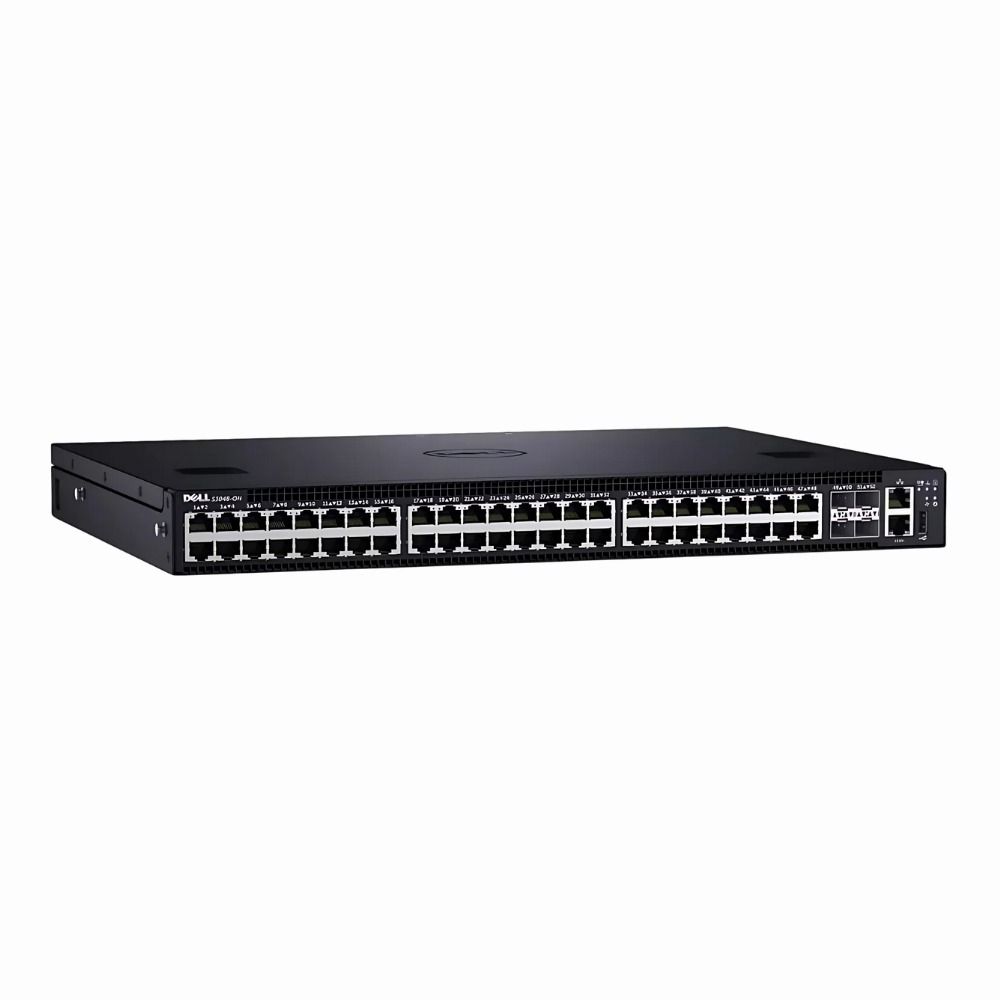

The Dell S3048-ON network switch offers 48 PoE+ ports along with 4 high-speed 10GbE uplinks, making it a solid fit for enterprise environments requiring both power delivery and fast data connections. It balances port density and power capabilities to serve a range of devices and network scales effectively. |
| General Information | |
|---|---|
| Brand | Dell |
| Part Number | J4T5K |
| Condition | Refurbished |
| Technical Information | |
|---|---|
| Switch Ports | 48 x 10/100/1000Base-T (PoE+) |
| Number of Ports | 48-Ports |
| Port Type | 10/100/1000Base-T, SFP+, USB Console, Serial Console (RJ-45) |
| Port Speed | 1 Gbps,10 Gbps |
| UpLink Ports | 4 x 10GbE SFP+ |
| POE Support | PoE+ |
| Switching Capacity | 176 Gbps |
| Switch Forwarding Rate | 130.95 Mpps |
| DRAM | 2 GB |
| Flash Memory | 4 GB |
| VLAN Support | Yes |
| Max VLANs Supported | 1-4094 (supports up to 4094 VLANs) |
| Layer Support | Layer 3 |
| Connector Type | RJ-45,SFP+ |
| Performance | |
|---|---|
| Jumbo Frame Support | Up To 9216 Bytes |
| MAC Address Table Size | 16000 |
| Management and Configuration | |
|---|---|
| Routing Protocols | Static, RIP, OSPF, BGP, VRRP, PIM-SM, IGMP |
| Remote Protocols | Yes |
| Management Interfaces | CLI (console/SSH), Web GUI (HTTP/HTTPS), SNMP, RMON, Telnet, Serial Console (RJ-45), USB Console |
| Security Features | 802.1X authentication, ACLs, Port security, MAC filtering, DHCP snooping, ARP inspection, IP source guard, Storm control, Radius, TACACS+ |
| Remote Management Protocol | SSH,Telnet,HTTP,HTTPS,SNMPv1/v2c/v3,RMON,sFlow |
| Routing Protocol | Static,RIP,OSPF,BGP,VRRP |
| Power & Cooling | |
|---|---|
| Fans | 2 (hot-swappable) |
| Power | Max PoE budget: 740 W; Typical power supply rating: 750 W AC |
| Physical Characteristics | |
|---|---|
| Dimensions | 1.73 x 17.32 x 18.90 inches |
| Weight | 5.00 |
| Operating Temperature | 0 to 45 C |
| Miscellaneous | |
|---|---|
| Eco Friendly | Yes |
| Compliance Standards | WEEE, RoHS, cURus, CE, FCC, UL, TUV |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1D, IEEE 802.1s, IEEE 802.1X, IEEE 802.3ad (LACP) |
| Product Description |
|---|
The Dell S3048-ON switch is built for environments needing reliable and flexible network connections with power delivery. It’s commonly used in office networks, data centers, and campus infrastructures where multiple devices require both data and power over a single cable. Network administrators and IT professionals often find this switch a practical choice because it combines high port density with PoE+ capabilities and uplink speed options. This helps streamline network setups and supports a variety of endpoints like IP phones, cameras, and wireless access points. Key Features
This switch is often deployed in office floors, wiring closets, or data centers where multiple devices need to connect seamlessly. Its power over Ethernet feature reduces the need for extra wiring, making installations cleaner and more efficient. By combining ample port count and PoE+ support, the Dell S3048-ON helps maintain a neat network infrastructure that can evolve as demands grow, without frequent hardware changes. |
