| Product Overview |
|---|

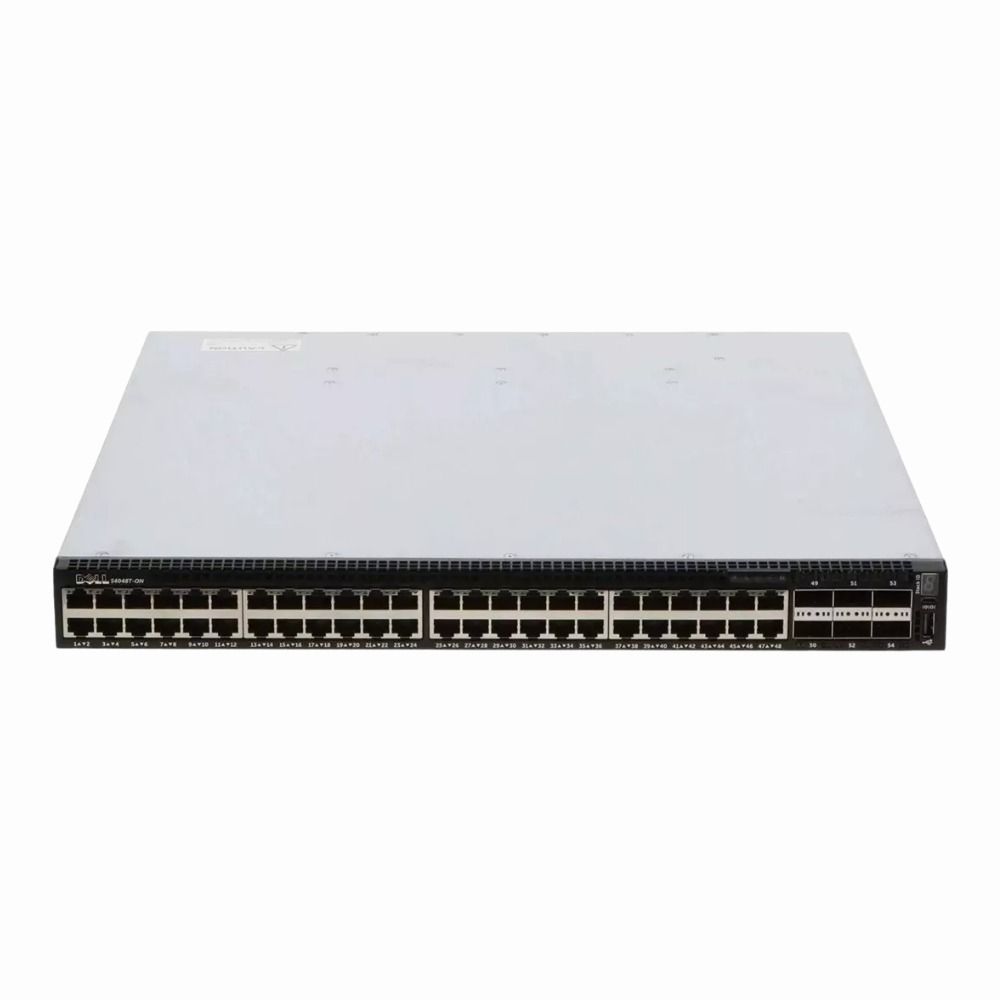

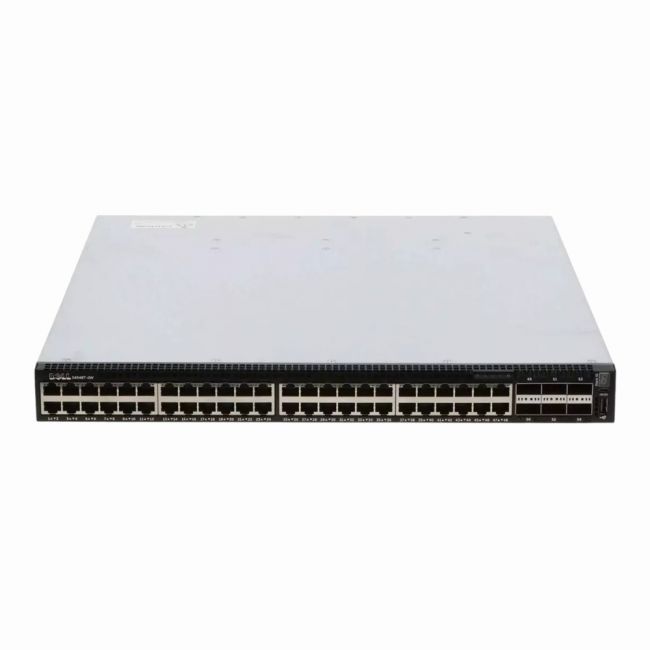

The Dell PowerSwitch S4048T-ON combines high-density 10GBase-T ports with powerful Layer 3 routing, fitting neatly into a 1U rack space. It serves well in data centers and enterprise networks requiring fast, reliable connections and advanced network functions without unnecessary complexity. |
| General Information | |
|---|---|
| Brand | Dell |
| Part Number | J1P3P |
| Condition | Refurbished |
| Technical Information | |
|---|---|
| Switch Ports | 48 |
| Number of Ports | 48-Ports |
| Port Type | 10GBase-T, QSFP / QSFP+ |
| Port Speed | 10GBase-T |
| UpLink Ports | 6 |
| POE Support | No |
| Switching Capacity | 1.44 Tbps |
| Switch Forwarding Rate | 1071 Mpps |
| DRAM | 4 GB |
| Flash Memory | 2 GB |
| VLAN Support | Yes |
| Max VLANs Supported | 1-4094 |
| Stackable | No |
| Layer Support | Layer 3 |
| Connector Type | RJ-45,QSFP+ |
| Performance | |
|---|---|
| Jumbo Frame Support | Up To 9216 Bytes |
| MAC Address Table Size | 32000 |
| Management and Configuration | |
|---|---|
| Routing Protocols | Static, RIP, OSPF, BGP, VRRP, PIM-SM, IGMP, Route Maps |
| Remote Protocols | Yes |
| Management Interfaces | Serial Console (RJ-45),USB Console,SSH,Web GUI (HTTP/HTTPS),SNMP |
| Security Features | 802.1X,ACL,SSH,SSL,RADIUS,TACACS+ |
| Security | Yes |
| Remote Management Protocol | SSH,Telnet,HTTP,HTTPS,SNMP |
| Physical Characteristics | |
|---|---|
| Weight | 5.00 |
| Operating Temperature | 0°C to 40°C |
| Miscellaneous | |
|---|---|
| Compliance Standards | WEEE, RoHS, CE, FCC, UL, TUV, cULus |
| Product Description |
|---|
The Dell PowerSwitch S-Series S4048T-ON is built for network environments needing robust, high-speed Ethernet connectivity. Often found in data centers and enterprise networks, it supports a mix of 10GbE access ports and faster uplinks for flexible deployment. Network engineers and IT teams commonly use this switch to handle demanding traffic loads and enable advanced routing across multiple VLANs and subnets. Its Layer 3 management capabilities make it a solid choice for organizations wanting both speed and sophisticated network control. Key Features
This switch is commonly deployed in data centers, large campus networks, and enterprise aggregation layers where reliability and throughput matter. It helps maintain smooth data flow and simplifies network management for IT teams. |
