| Product Overview |
|---|

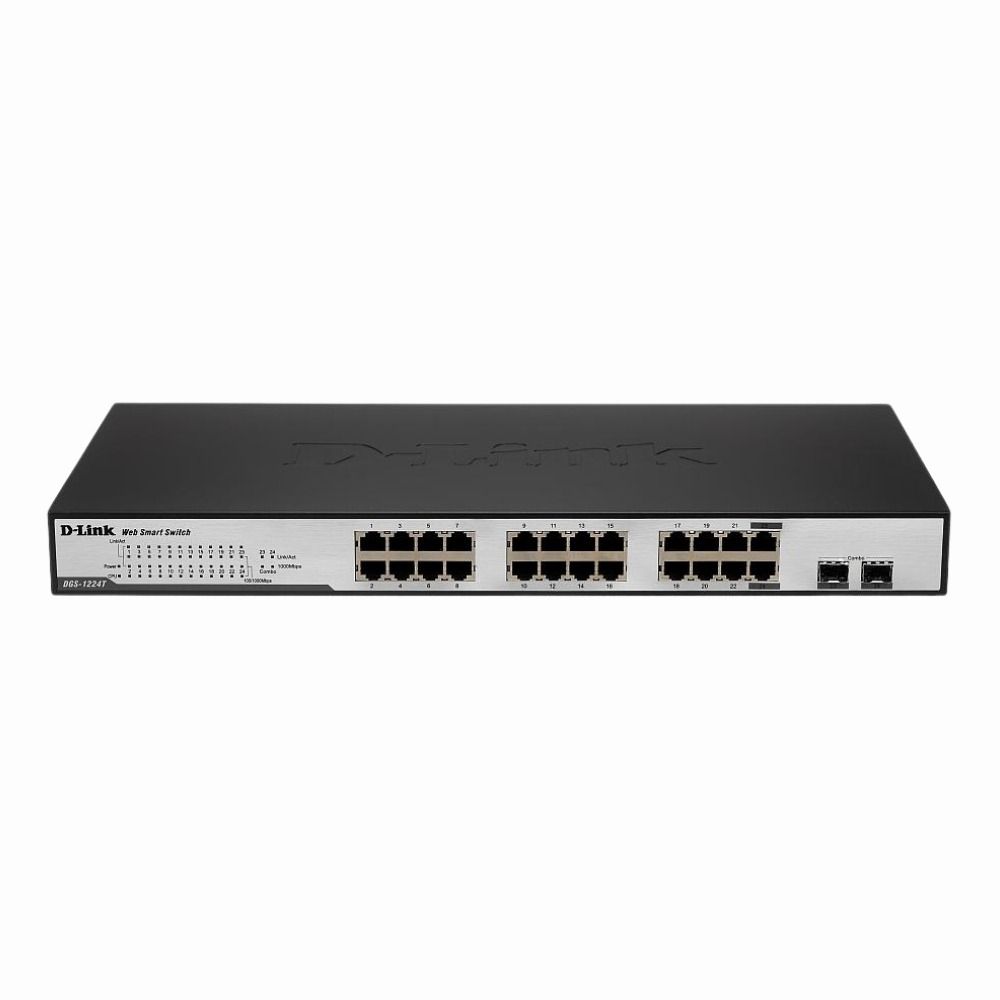

The IGS1224TN by D-Link provides a balance of performance and management for growing networks. It delivers 24 gigabit Ethernet ports combined with two flexible combo SFP slots, allowing straightforward fiber integration. With its Layer 2 capabilities, it fits well in environments that demand control over traffic and network segmentation without overwhelming complexity. |
| General Information | |
|---|---|
| Brand | D-Link |
| Part Number | IGS1224TN |
| Condition | Refurbished |
| Technical Information | |
|---|---|
| Switch Ports | 24 (RJ-45) + 2 (Combo SFP) |
| Number of Ports | 24-Ports |
| Port Type | 10/100/1000Base-T, Combo RJ-45/SFP, SFP, USB Console, Serial Console (RJ-45) |
| Port Speed | 10/100/1000Base-T |
| UpLink Ports | 2 x Combo SFP (1Gbps) |
| POE Support | No |
| DRAM | 128 MB |
| Flash Memory | 16 MB |
| VLAN Support | Yes |
| Max VLANs Supported | 4094 |
| Stackable | No |
| Layer Support | Layer 2 |
| Connector Type | RJ-45,SFP,Combo RJ-45/SFP,USB Console,Serial Console (RJ-45) |
| Performance | |
|---|---|
| Latency | < 10 µs (typical per port at 1Gbps) |
| Jumbo Frame Support | Up To 9216 Bytes |
| MAC Address Table Size | 8K (8192) MAC address table |
| Management and Configuration | |
|---|---|
| Remote Protocols | Web-based GUI (Web Smart), SNMP, CLI (Console), SSH, Telnet |
| Management Interfaces | Web GUI (HTTP/HTTPS), Command Line (Console), SSH, Telnet, SNMP v1/v2c/v3, RMON, Syslog |
| Remote Management Protocol | HTTP, HTTPS, SSH, Telnet, SNMPv1/v2c/v3, RMON, Syslog |
| Power & Cooling | |
|---|---|
| Fans | Fanless |
| Physical Characteristics | |
|---|---|
| Dimensions | 44 x 440 x 200 mm (1U rack-mountable) |
| Weight | 4.00 |
| Operating Temperature | 0°C to 40°C |
| Miscellaneous | |
|---|---|
| Eco Friendly | Yes |
| Compliance Standards | WEEE, RoHS, CE, FCC, UL, cULus |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1D, IEEE 802.1w, IEEE 802.3ad (LACP) |
| Product Description |
|---|
The IGS1224TN is a Layer 2 managed Gigabit Ethernet switch designed to handle demanding network environments. It offers 24 RJ-45 ports supporting speeds up to 1 Gbps, alongside 2 combo SFP ports that allow for fiber optic uplink options, providing flexibility in network design. Commonly found in small to medium-sized business networks, this switch is built for IT professionals who need reliable performance and advanced management features without the complexity of full enterprise devices. It supports essential functions like VLANs, Quality of Service (QoS), and link aggregation to optimize traffic and maintain network stability. Key Features
This switch is often deployed in office networks, data centers, or campus environments where reliable gigabit connectivity is needed. It plays a role in maintaining smooth communication across devices and can be part of a scalable network infrastructure. The IGS1224TN helps ensure that data flows efficiently and securely in everyday business operations. |
