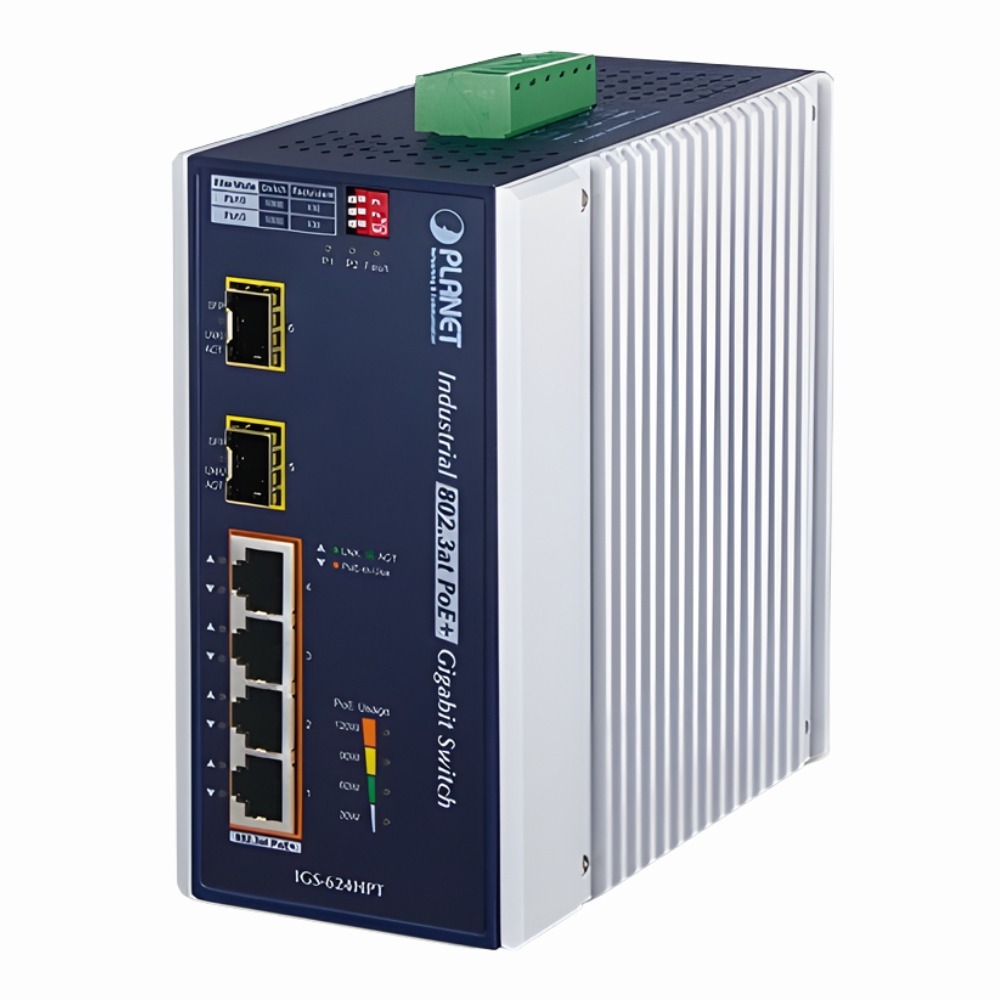

Name: IGS-624HPT Planet 4-Port PoE+ Gigabit + 2-Port 2.5Gbps SFP Layer 2 Switch
SKU: IGS-624HPT
Price: 602.90 USD
Availability: InStock
Rating: 4.8 (119 reviews)

Product Overview
The IGS-624HPT Planet switch combines four PoE+ Gigabit ports with two 2.5Gbps SFP uplinks to support industrial network demands. It fits well in scenarios requiring power delivery and fast, stable connections, especially where space is limited and rugged mounting options are necessary.

General Information
Part Number	IGS-624HPT
Condition	Refurbished

Technical Information
Switch Ports	6 (4 x RJ45 PoE+, 2 x SFP 2.5Gb/s)
Number of Ports	4-Ports
Port Speed	10/100/1000Base-T,2.5Gb/s
Max VLANs Supported	4094
Connector Type	RJ-45 (Gigabit), SFP (2.5Gb/s)

Performance
Jumbo Frame Support	Up To 9216 Bytes
MAC Address Table Size	8K (8192) MAC address entries

Management and Configuration
Security	802.1X, Port Security, MAC Filtering, DHCP Snooping, IGMP Snooping
Remote Management Protocol	SNMPv1/v2c/v3, HTTP, HTTPS, Telnet, SSH

Power & Cooling
Fans	Fanless
Power	PoE+: IEEE 802.3at support, PoE budget up to 120W (4 ports PoE+ capable)

Physical Characteristics
Weight	4.00

Miscellaneous
Eco Friendly	Yes
Assembly Required	Yes
Compliance Standards	WEEE, RoHS, cURus, CE, FCC, CCC, UL, TUV, cULus, CSA, cUL
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1D, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at

Product Description
The IGS-624HPT is designed to provide reliable and flexible network connectivity in industrial settings. It combines four PoE+ ports capable of powering devices like IP cameras, wireless access points, and VoIP phones with two high-speed SFP uplink ports that support 2.5Gbps fiber connections. Often found in manufacturing plants, transportation systems, and outdoor installations, this switch is built for environments where robust performance and easy installation on DIN rails are essential. Network administrators and system integrators benefit from its combination of power delivery and fast data transmission. Key Features Delivers up to 30W PoE+ power per port for connected devices Includes dual 2.5Gbps SFP ports for enhanced uplink speeds Supports essential Layer 2 features like VLAN, QoS, and IGMP snooping Rugged, rail-mountable enclosure designed for tough industrial conditions Offers stable operation in environments with temperature and vibration challenges This switch is commonly deployed in industrial automation networks and critical infrastructure where both power and high-speed data are needed over a single cable. It helps reduce installation complexity by combining data and power delivery, making network setups more efficient and reliable.

Use Cases
The IGS-624HPT is designed for industrial and enterprise environments that require reliable power delivery and high-speed data transmission. It is particularly suited for deployments where rugged mounting options and enhanced bandwidth via 2.5Gbps SFP uplinks are critical, such as in manufacturing plants, campus networks, and edge computing sites. How It's Used: Providing PoE+ power and network connectivity to IP surveillance cameras in factory automation settings. Enabling high-throughput uplinks for campus IT infrastructure in educational or corporate environments. Supporting edge computing nodes with stable and scalable network access in remote industrial locations. Integrating network devices in transportation systems where rail-mountable equipment is essential. Facilitating SMB network expansion with power-over-Ethernet support for VoIP phones and wireless access points. This switch enhances operational efficiency by combining power delivery and multi-gigabit connectivity in a compact, industrial-grade form factor. It supports scalable network designs that demand both robustness and bandwidth for real-time data processing and device management.
