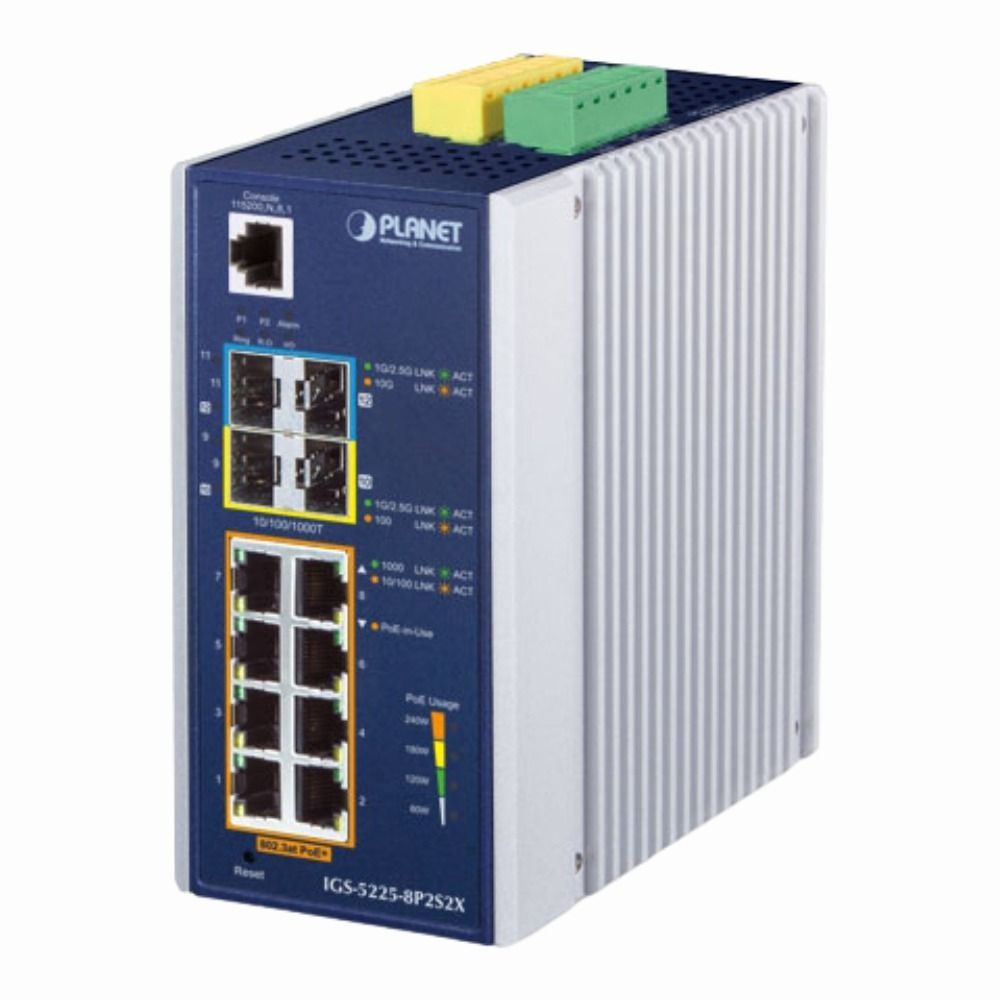

Name: IGS-5225-8P2S2X Planet 8-Port PoE Gigabit + 2 SFP + 2 SFP+ Layer 3 Managed Switch
SKU: IGS-5225-8P2S2X
Price: 1180.82 USD
Availability: InStock
Rating: 4.8 (119 reviews)

Product Overview
The IGS-5225-8P2S2X Planet switch is a managed industrial Ethernet device that combines eight PoE-enabled Gigabit ports with advanced fiber uplink options. It fits into environments requiring both power delivery and high-speed data transfer, such as factory floors and transportation systems. This switch supports Layer 3 routing to help manage network traffic effectively while being built to withstand tough conditions typically found in industrial settings.

General Information
Part Number	IGS-5225-8P2S2X
Condition	Refurbished

Technical Information
Switch Ports	8 x 10/100/1000Base-T PoE, 2 x 1G SFP, 2 x 10G SFP+
Number of Ports	8-Ports
Port Speed	10/100/1000Mbps,10Gbps
Switching Capacity	60 Gbps
Switch Forwarding Rate	117.18 Mpps
Max VLANs Supported	4094
Connector Type	RJ45 (PoE+), SFP, SFP+

Performance
Jumbo Frame Support	Up To 9216 Bytes

Management and Configuration
Management Type	Web GUI, CLI (Console), SNMP, RMON
Security	802.1X, ACL, Port Security, DHCP Snooping, IP-MAC-Port Binding, DoS Prevention
Remote Management Protocol	SNMPv1/v2c/v3, HTTP, HTTPS, SSH, Telnet

Power & Cooling
Fans	Fanless
Power	PoE Budget 240W; DC input 48~57V
Power Supply	Redundant 48~57V DC

Physical Characteristics
Weight	4.00
Operating Temperature	-40 ~ 75 °C

Miscellaneous
Eco Friendly	Yes
Assembly Required	Yes
Compliance Standards	WEEE, RoHS, cURus, CE, FCC, CCC, UL, TUV, cULus, CSA, cUL
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3x, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1D, IEEE 802.1w, IEEE 802.1X, IEEE 802.3at

Product Description
The IGS-5225-8P2S2X is a rugged industrial switch designed for demanding network environments. It supports Power over Ethernet (PoE) to power devices like IP cameras and wireless access points directly through Ethernet cables. Often found in industrial automation, transportation, and surveillance setups, this switch handles both data and power with solid reliability. Network administrators and system integrators benefit from its flexible connectivity and strong management capabilities. Key Features Provides reliable PoE power to multiple devices simultaneously Includes 10 Gigabit SFP+ ports for fast data uplinks and backbone connections Supports Layer 3 features like static routing to optimize network traffic Designed to operate in harsh conditions with wide temperature tolerance Offers comprehensive management options through web, SNMP, and CLI interfaces This switch is typically deployed in industrial sites where robust, high-speed network access is critical. It helps maintain stable communication while powering connected devices, reducing the need for separate power sources. In practice, the IGS-5225-8P2S2X improves network efficiency and simplifies infrastructure by combining data and power delivery in a single unit, making it a practical choice for complex industrial networks.

Use Cases
The IGS-5225-8P2S2X Planet switch is tailored for industrial and enterprise environments where both power delivery and high-speed data connectivity are essential. It is ideal for network administrators managing critical infrastructure that demands robust Layer 3 routing and reliable PoE support under harsh operational conditions. How It's Used: Powering and connecting IP surveillance cameras across factory automation floors requiring stable PoE and fiber uplinks. Supporting network segmentation and routing in transportation systems with demanding timing and resilience requirements. Enabling edge computing setups in industrial IoT deployments by delivering power and high bandwidth to edge devices. Facilitating high-density office environments where video conferencing and VoIP devices demand consistent PoE and fast uplinks. Integrating into smart building infrastructure to manage and route traffic from security, lighting, and HVAC control systems. By combining robust Layer 3 features with versatile PoE and fiber options, this switch helps streamline network operations in settings that require both scalability and operational resilience. Its design supports sustained performance in complex deployments where network segmentation and device powering are critical.
