| Product Overview |
|---|

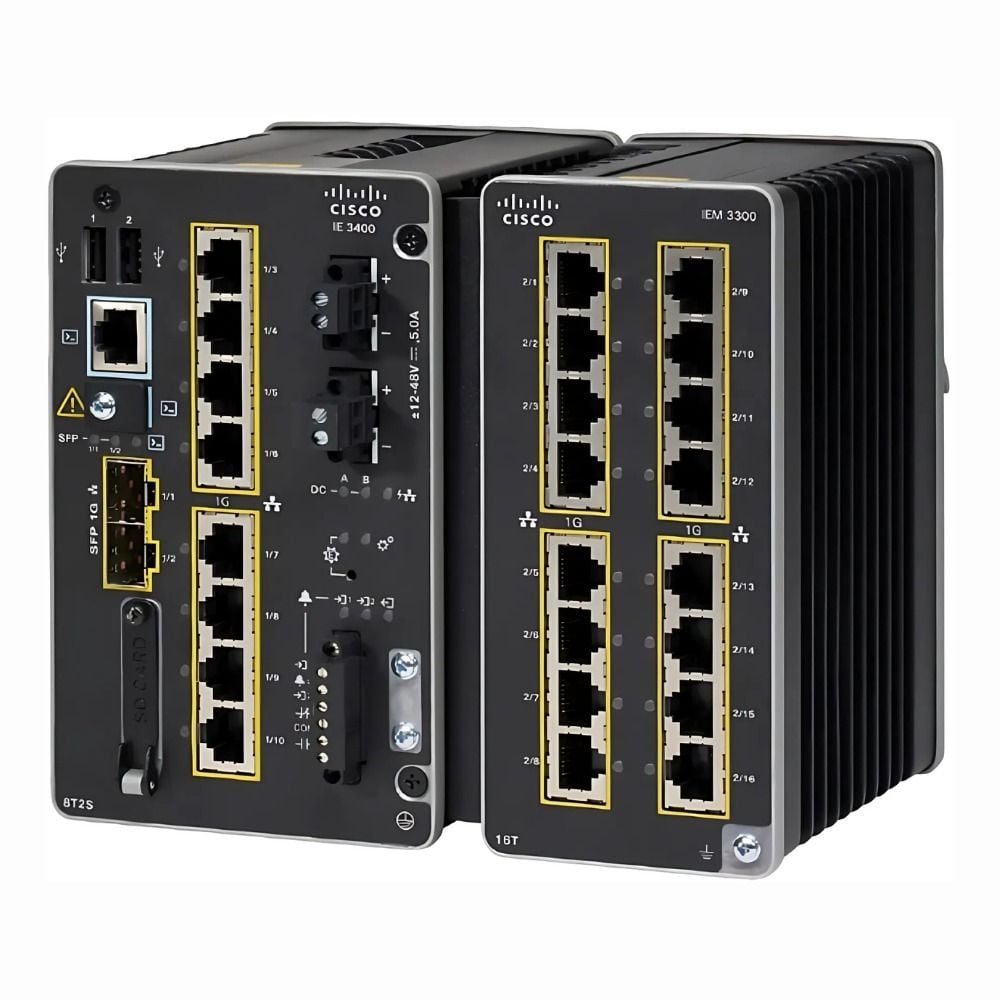

The Cisco Catalyst IE-3400-8P2S-A combines eight PoE+ Gigabit Ethernet ports with two SFP fiber slots in a rugged package designed for industrial networks. It fits into environments that demand reliable power and data transmission along with advanced network management features. This switch helps maintain continuous connectivity in areas where standard commercial switches might fail due to harsh conditions. |
| General Information | |
|---|---|
| Brand | Cisco |
| Part Number | IE-3400-8P2S-A |
| Condition | Refurbished |
| Technical Information | |
|---|---|
| Switch Ports | 8 |
| Number of Ports | 10-Ports |
| Port Type | 10/100/1000Base-T, 1000Base-X, SFP |
| Port Speed | 10/100/1000 Mbps |
| UpLink Ports | 2 |
| POE Support | PoE+ |
| Switching Capacity | 20 Gbps |
| Switch Forwarding Rate | 39.06 Mpps |
| DRAM | 512 MB |
| Flash Memory | 128 MB |
| VLAN Support | Yes |
| Max VLANs Supported | 1-4094 |
| Stackable | No |
| Layer Support | Layer 3 |
| Connector Type | RJ-45,SFP |
| Performance | |
|---|---|
| Jumbo Frame Support | Up To 9216 Bytes |
| MAC Address Table Size | 8000 MAC addresses |
| Management and Configuration | |
|---|---|
| Routing Protocols | Static, RIP, OSPF, VRRP, HSRP, PIM-SM, IGMP |
| Remote Protocols | Yes |
| Management Interfaces | CLI (console/SSH), Web UI, SNMP, NETCONF, RESTCONF, USB Console, Serial Console (RJ-45) |
| Remote Management Protocol | SSH, Telnet, HTTPS/HTTP, SNMPv1/v2c/v3, NETCONF, RESTCONF |
| Power & Cooling | |
|---|---|
| Fans | Fanless |
| Power | 12-57 VDC |
| Physical Characteristics | |
|---|---|
| Weight | 5.00 |
| Operating Temperature | -40 to 75 C |
| Miscellaneous | |
|---|---|
| Eco Friendly | Yes |
| Compliance Standards | WEEE, RoHS, CE, FCC, UL, TUV, cULus |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1X, IEEE 802.3az |
| Product Description |
|---|
The Cisco Catalyst IE-3400-8P2S-A is a robust network switch tailored for demanding industrial settings. It provides reliable power and data connectivity with eight PoE+ Ethernet ports and two SFP slots for fiber optic links. This switch is often found in manufacturing plants, transportation systems, and outdoor installations where network stability and endurance are critical. Built for network engineers and system integrators, the IE-3400-8P2S-A offers advanced Layer 3 features that support complex routing and network segmentation. Its rugged construction ensures it can handle temperature extremes, vibrations, and other challenging conditions common in industrial environments. Key Features
This switch is typically installed in industrial networks requiring dependable performance, such as automated factories or outdoor communication nodes. Its ability to combine power delivery with managed networking simplifies infrastructure and reduces equipment needs while maintaining resilience in tough conditions. |
