Product Overview |
|---|

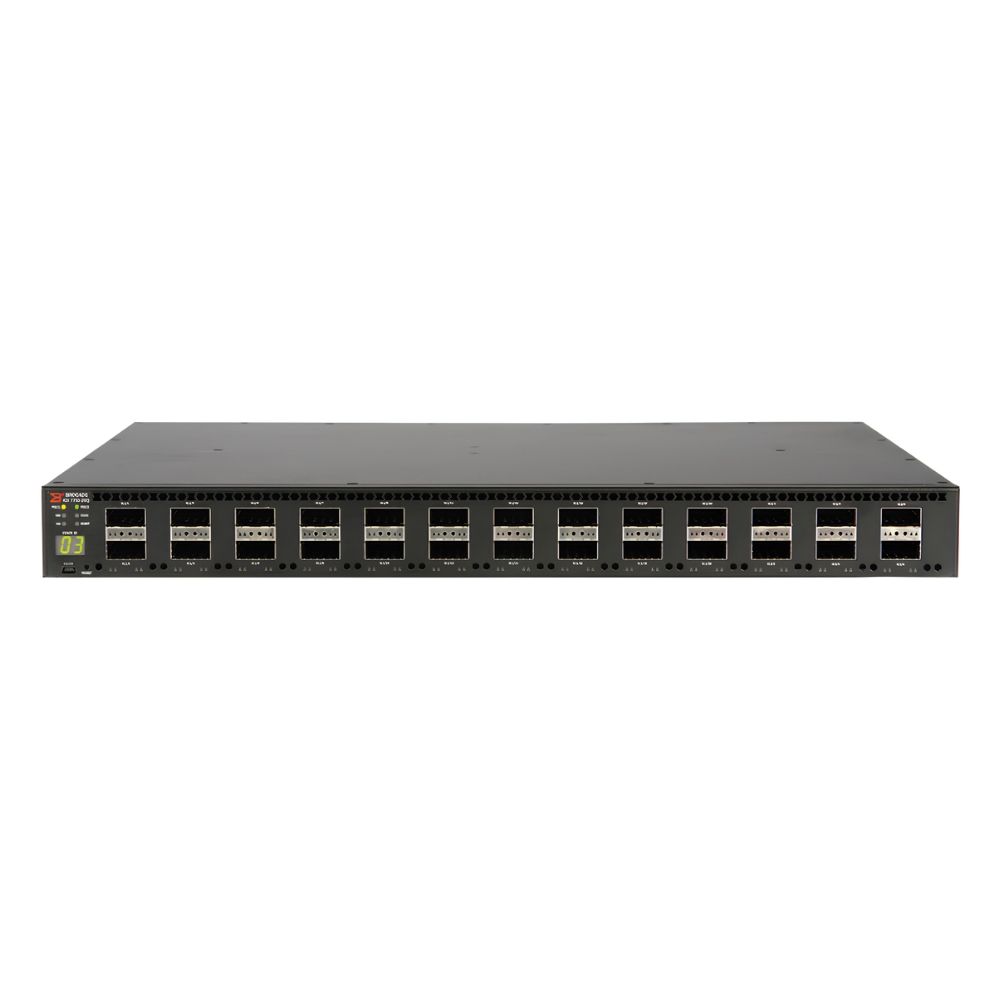

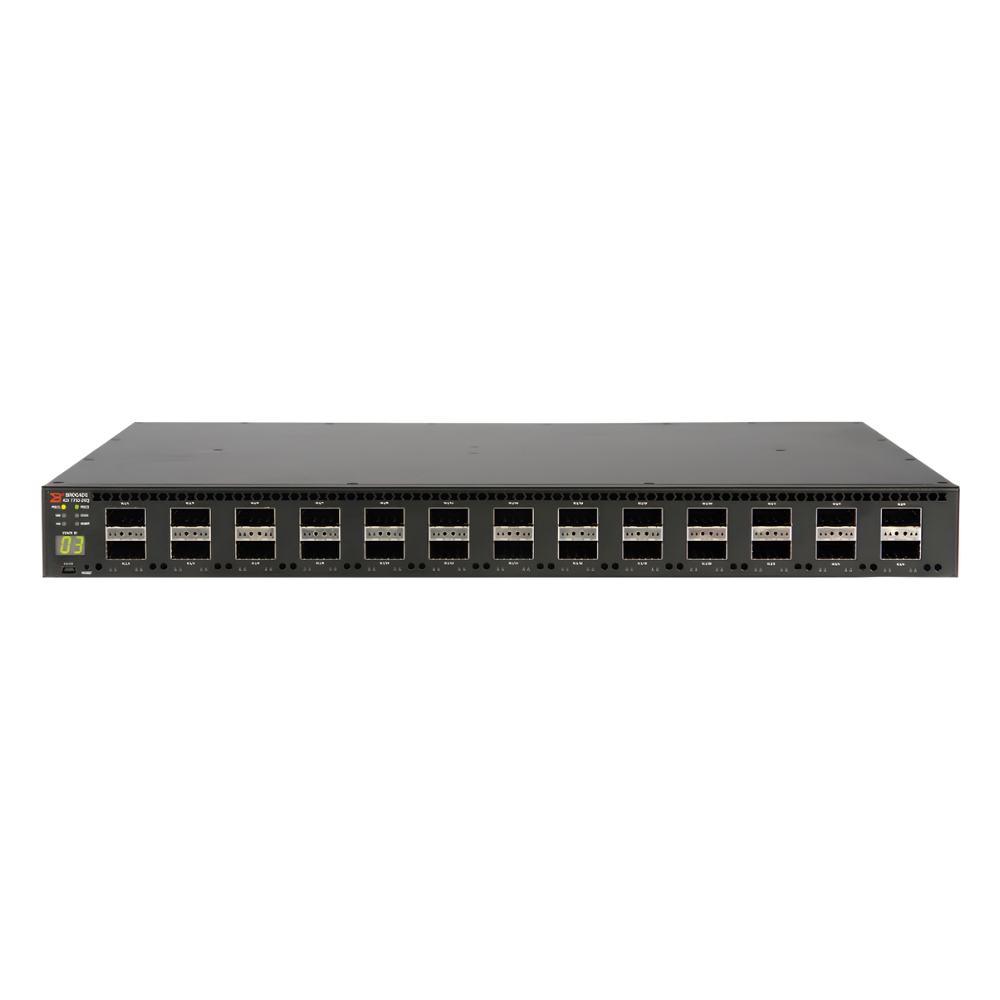

The ICX7750-26Q switch offers high-speed 40GbE connectivity across 26 QSFP+ ports, placing it well within data center and enterprise network frameworks. It combines Layer 3 routing with a scalable design to address the needs of modern network architectures while maintaining stability and efficiency. |
General Information |
|
|---|---|
| Brand | Brocade |
| Condition | Refurbished |
Technical Information |
|
|---|---|
| Switch Type | Layer 3, Managed Switch, Stackable Switch |
| Form Factor | Rack-Mountable |
| Mount Type | 1U Rack |
| Switch Ports | QSFP+ |
| Number of Ports | 26-Ports |
| Port Type | 40G QSFP+ |
| Port Speed | 40 Gbps,10 Gbps (via QSFP+ breakout) |
| POE Support | No |
| Switching Capacity | 2.08 Tbps |
| Switch Forwarding Rate | 4.06 Bpps |
| VLAN Support | Yes |
| Max VLANs Supported | 1-4094 |
| Stackable | Yes |
| Layer Support | Layer 3 |
| Connector Type | QSFP+, Serial Console (RJ-45), USB Console |
Performance |
|
|---|---|
| Latency | Low (<3 µs) |
| Jumbo Frame Support | Up To 9216 Bytes |
| MAC Address Table Size | 128000 |
Management and Configuration |
|
|---|---|
| Routing Protocols | Static, RIP, OSPF, OSPFv3, BGP, VRRP, PIM-SM, IGMP, MLD |
| Remote Protocols | Yes |
| Management Interfaces | CLI, Web GUI, SSH, Telnet, SNMPv1/v2c/v3, Serial Console, USB, Out-of-Band Management |
| Security Features | ACLs, 802.1X, RADIUS, TACACS+, DHCP Snooping, IP Source Guard, Storm Control, Port Security, SSH |
| Management Type | In-Band and Out-of-Band |
| Security | 802.1X, RADIUS, TACACS+ |
| Remote Management Protocol | SNMPv1/v2c/v3, SSH, Telnet, HTTP/HTTPS |
| Routing Protocol | Static, RIP, OSPF, BGP |
Power & Cooling |
|
|---|---|
| Fans | Redundant hot-swappable fans |
Physical Characteristics |
|
|---|---|
| Weight | 3.00 |
| Operating Temperature | 0°C to 45°C |
Miscellaneous |
|
|---|---|
| Assembly Required | No |
| Compliance Standards | RoHS, CE, FCC, UL |
Product Description |
|---|
The ICX7750-26Q is a network switch configured with 26 QSFP+ ports, offering robust 40 Gigabit Ethernet connectivity for demanding network infrastructures. This switch is commonly found in data centers and enterprise networks where high throughput and efficient routing are essential. Built for IT professionals managing complex network topologies, it supports Layer 3 switching to enable advanced traffic management and segmentation. The device is often integrated into environments requiring scalable and flexible network solutions, supporting both high capacity and reliability. Key Features
This switch delivers dependable performance through consistent data handling and flexible configuration options. Its ability to manage complex network layers helps maintain stable and efficient operations across large-scale networks. Reliable and scalable, the ICX7750-26Q fits into the infrastructure as a key component for ensuring smooth traffic handling and network resilience. |
Use Cases |
|---|
The ICX7750-26Q is typically deployed in environments requiring dense, high-speed interconnects such as data centers and large enterprise networks. It benefits network administrators who need scalable routing and switching solutions capable of handling substantial data traffic with minimal latency. How It's Used:
The switch enhances operational efficiency by streamlining data flow and allowing network growth without disrupting existing services. Its design supports both performance and scalability critical to maintaining effective network operations in complex IT settings. |
