| Product Overview |
|---|

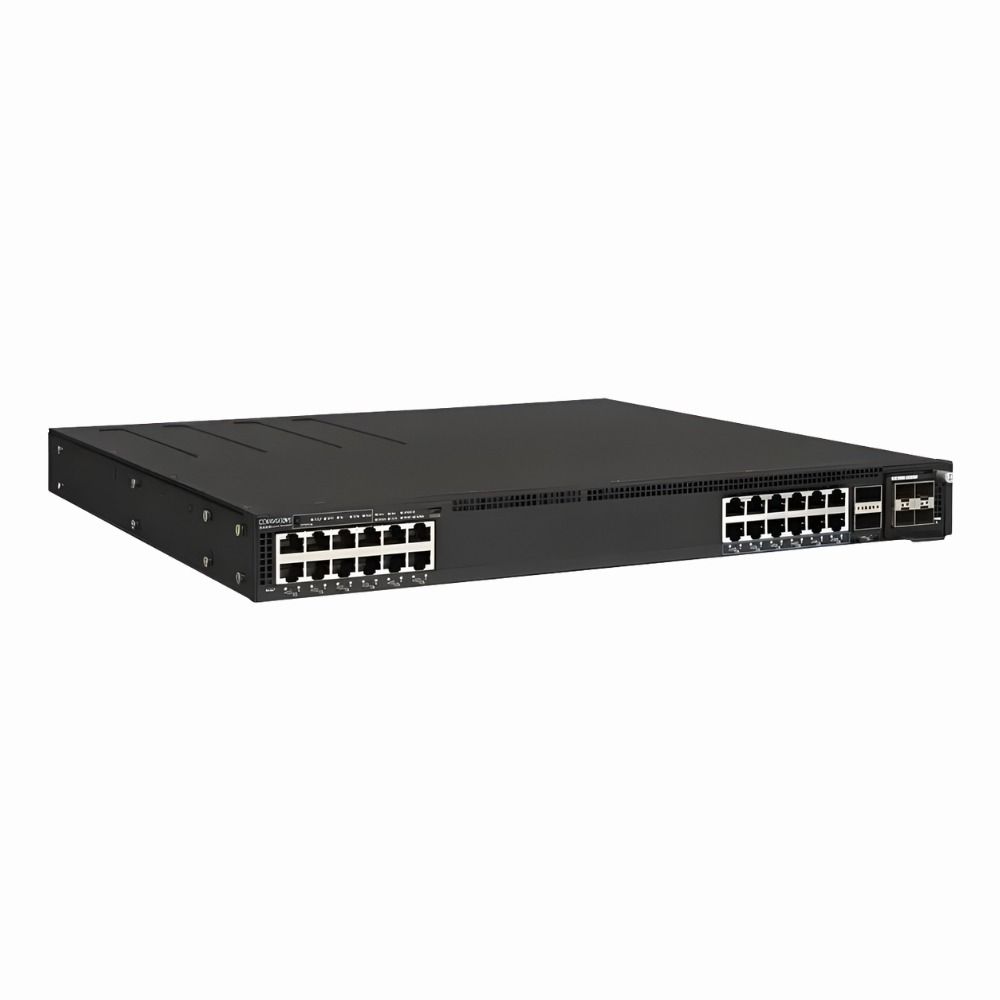

The ICX7550-24ZP-E2 from Ruckus Networks combines high-speed 10G and multi-gigabit 2.5G PoE++ connections in a compact 1U switch designed for enterprise and data center use. Its stackable architecture and Layer 3 management make it a solid choice for growing networks needing flexible device support and efficient power delivery across a standard rack environment. |
| General Information | |
|---|---|
| Brand | Ruckus |
| Part Number | ICX7550-24ZP-E2 |
| Condition | Refurbished |
| Technical Information | |
|---|---|
| Switch Ports | 12 x SFP+,12 x 2.5G RJ45,2 x QSFP+ |
| Number of Ports | 24-Ports |
| Port Speed | 10G,2.5G,40G |
| Switching Capacity | 480 Gbps |
| Switch Forwarding Rate | 937.5 Mpps (64-byte frames) |
| DRAM | 4 GB |
| Flash Memory | 1 GB |
| Max VLANs Supported | 4094 |
| Connector Type | SFP+,RJ45,QSFP+ |
| Performance | |
|---|---|
| Jumbo Frame Support | Up To 9216 Bytes |
| MAC Address Table Size | 32,000 |
| Management and Configuration | |
|---|---|
| Management Type | CLI, Web GUI, SNMP (v1/v2c/v3), RMON, SSH, Telnet |
| Remote Management Protocol | SNMPv1/v2c/v3,SSH,Telnet,HTTP/HTTPS |
| Routing Protocol | Static routing, RIPv2, OSPF, BGP, VRRP |
| Power & Cooling | |
|---|---|
| Fans | Front-to-back, variable-speed fans (redundant/fail-over) |
| Power | AC 100-240V 50-60Hz; PoE budget 1440W |
| Power Supply | Dual hot-swappable AC power supplies (redundant) |
| Physical Characteristics | |
|---|---|
| Dimensions | 1.73 x 17.5 x 16.9 in (44 x 445 x 430 mm) |
| Weight | 4.00 |
| Operating Temperature | 0°C to 45°C |
| Miscellaneous | |
|---|---|
| Compliance Standards | WEEE, RoHS, CE, FCC, UL |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3ad, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1D, IEEE 802.1w, IEEE 802.1X, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt |
| Product Description |
|---|
The ICX7550-24ZP-E2 is a versatile network switch designed for environments that require high bandwidth and power over ethernet capabilities. It is often found in enterprise networks, data centers, and campus infrastructures where reliable, fast, and flexible connectivity is essential. Built for network administrators and IT professionals, this switch supports advanced Layer 3 management features while providing ample PoE++ power to connected devices such as access points, cameras, and phones. Its stackable design allows seamless scaling as network demands grow. Key Features
This switch is typically deployed in rack-mounted setups within enterprise wiring closets or data centers. Its PoE++ capability powers demanding devices directly through network cables, reducing the need for extra power supplies. Network teams rely on it for its balance of speed, power, and manageability in complex network environments. |
