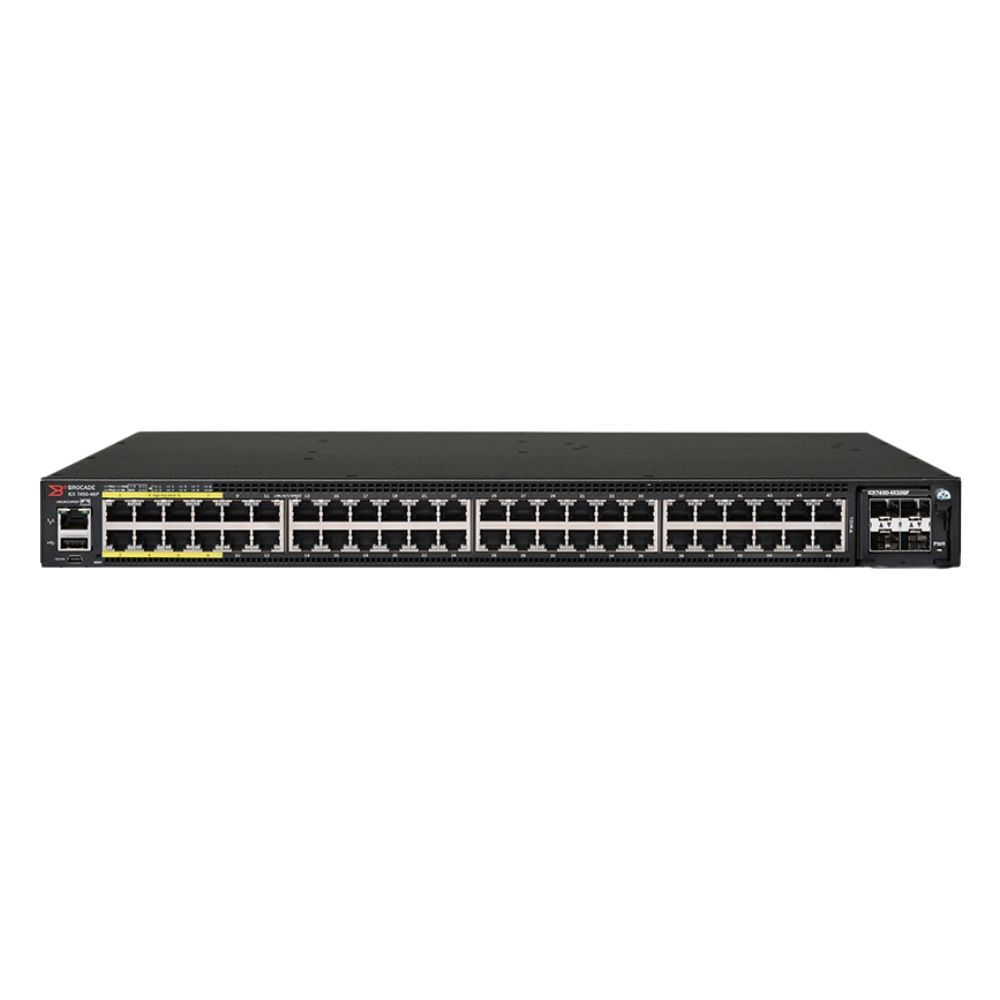

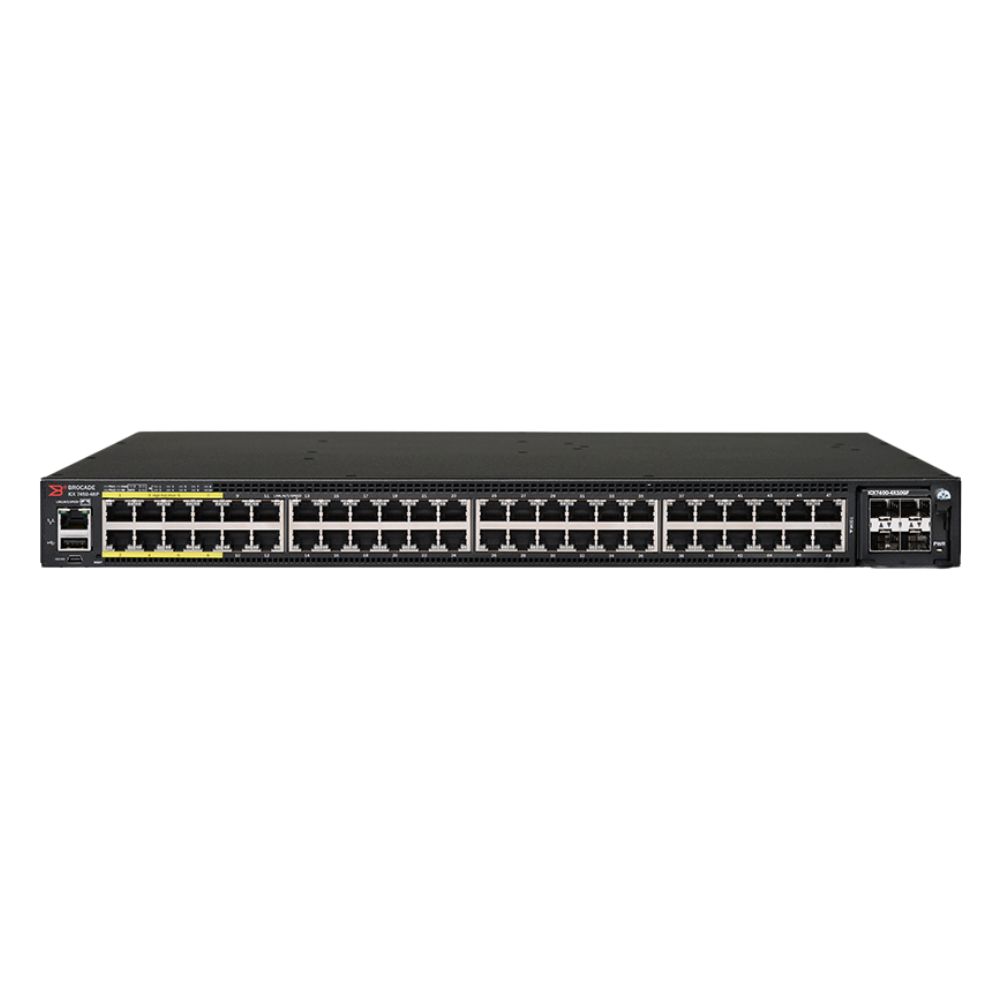

Name: ICX7450-48P Ruckus 48x1GbE PoE+ 4x10G SFP+ Managed L3 Switch
Brand: Ruckus
SKU: ICX7450-48P
Price: 1367.00 USD
Availability: InStock
Rating: 4.8 (124 reviews)

Product Overview
The Ruckus ICX7450-48P is a managed Layer 3 switch that provides 48 1GbE ports with PoE+ capabilities, enabling power delivery over Ethernet cables. It includes 4 10G SFP+ uplink ports for faster backbone connections and supports advanced Layer 3 functions suitable for enterprise network environments.

General Information
Brand	Ruckus
Condition	Refurbished

Technical Information
Switch Type	Layer 3, Managed Switch, Stackable Switch, PoE Switch, Gigabit Switch
Form Factor	Rack-Mountable
Mount Type	1U Rack
Switch Ports	48
Number of Ports	48-Ports
Port Type	10/100/1000Base-T, 10G SFP+
Port Speed	1 Gbps,10 Gbps
UpLink Ports	4 x 10G SFP+
POE Support	PoE+
Switching Capacity	176 Gbps
Switch Forwarding Rate	343.75 Mpps
VLAN Support	Yes
Max VLANs Supported	1-4094
Stackable	Yes
Layer Support	Layer 3
Connector Type	RJ-45,SFP+

Performance
Jumbo Frame Support	Up To 9216 Bytes

Management and Configuration
Routing Protocols	Static, RIP, RIPng, OSPF, OSPFv3, BGP, VRRP, HSRP, PIM-SM, IGMP
Remote Protocols	Yes
Management Interfaces	Web UI,CLI (Console/SSH),SNMP,Telnet
Security Features	802.1X,Access Control Lists (ACLs),RADIUS,TACACS+,DHCP Snooping,IP Source Guard,Dynamic ARP Inspection,Storm Control
Management Type	Managed
Security	802.1X,ACL,RADIUS,TACACS+
Remote Management Protocol	SNMPv1/v2c/v3,SSH,HTTPS,Telnet
Routing Protocol	Static,RIP,OSPF,BGP,VRRP,HSRP

Power & Cooling
Fans	Internal variable-speed fans

Physical Characteristics
Weight	3.00
Operating Temperature	0°C to 45°C

Miscellaneous
Eco Friendly	Yes
Assembly Required	No
Compliance Standards	RoHS, CE, FCC, UL

Product Description
The Ruckus ICX7450-48P is a managed Layer 3 switch designed to deliver high-performance connectivity in enterprise and campus networks. It features 48 1GbE ports with Power over Ethernet Plus (PoE+) functionality, allowing network administrators to power devices such as IP phones, wireless access points, and security cameras directly through the Ethernet cabling. Equipped with 4 10GbE SFP+ uplink ports, the ICX7450-48P supports high-speed data transfer and uplink aggregation to core network devices or servers. Its Layer 3 capabilities enable routing and advanced network management features, giving IT teams flexibility and control over their network topology. Key Features 48 ports of 1 Gigabit Ethernet with PoE+ for device power delivery 4 SFP+ ports supporting 10 Gigabit Ethernet uplinks Layer 3 switching with routing protocols support Managed switch with configurable network policies Suitable for enterprise campus and branch deployments This switch is typically deployed in network environments requiring both data connectivity and power to edge devices. Its Layer 3 management features support scalable network designs and segmentation, helping administrators optimize traffic and enforce policies. The ICX7450-48P serves as a robust access layer switch capable of integrating into larger network infrastructures.

Use Cases
The ICX7450-48P is commonly utilized in enterprise and campus networks where there is a need to connect numerous end devices while providing power through PoE+. Its Layer 3 management makes it fit for environments requiring network segmentation and routing capabilities. How It's Used: Powering and connecting IP phones and wireless access points in office environments Aggregation switch in campus network access layers Connecting and powering security cameras in enterprise surveillance systems Supporting routing and VLAN segmentation in medium to large networks Uplink to core switches or data center equipment via 10GbE SFP+ ports Overall, this switch provides both connectivity and power to a variety of network devices, fitting into the access layer of enterprise and campus networks. It helps manage traffic efficiently while enabling centralized control of network segments through Layer 3 features.

FAQ's
What does PoE+ mean on the ICX7450-48P? PoE+ indicates the switch can deliver power over Ethernet cables to connected devices, supporting up to 30 watts per port, suitable for devices like IP phones and wireless access points. How many 10G uplink ports does the ICX7450-48P have? This switch includes 4 SFP+ ports that support 10 Gigabit Ethernet for uplink connections to aggregation or core switches. What Layer 3 capabilities does the ICX7450-48P support? The ICX7450-48P offers Layer 3 managed switch features including routing protocols, which allow for network segmentation and inter-VLAN routing within enterprise environments. Is the ICX7450-48P suitable for campus networks? Yes, its port density, PoE+ support, and Layer 3 routing make it well-suited for access or aggregation layers in campus and enterprise networks. Can the ICX7450-48P power security cameras? Yes, the PoE+ ports can supply power to security cameras and other compatible devices, reducing the need for separate power sources. What type of devices typically connect to the 1GbE PoE+ ports? Common devices include IP phones, wireless access points, VoIP endpoints, and surveillance cameras that require both data connectivity and power over a single cable.
