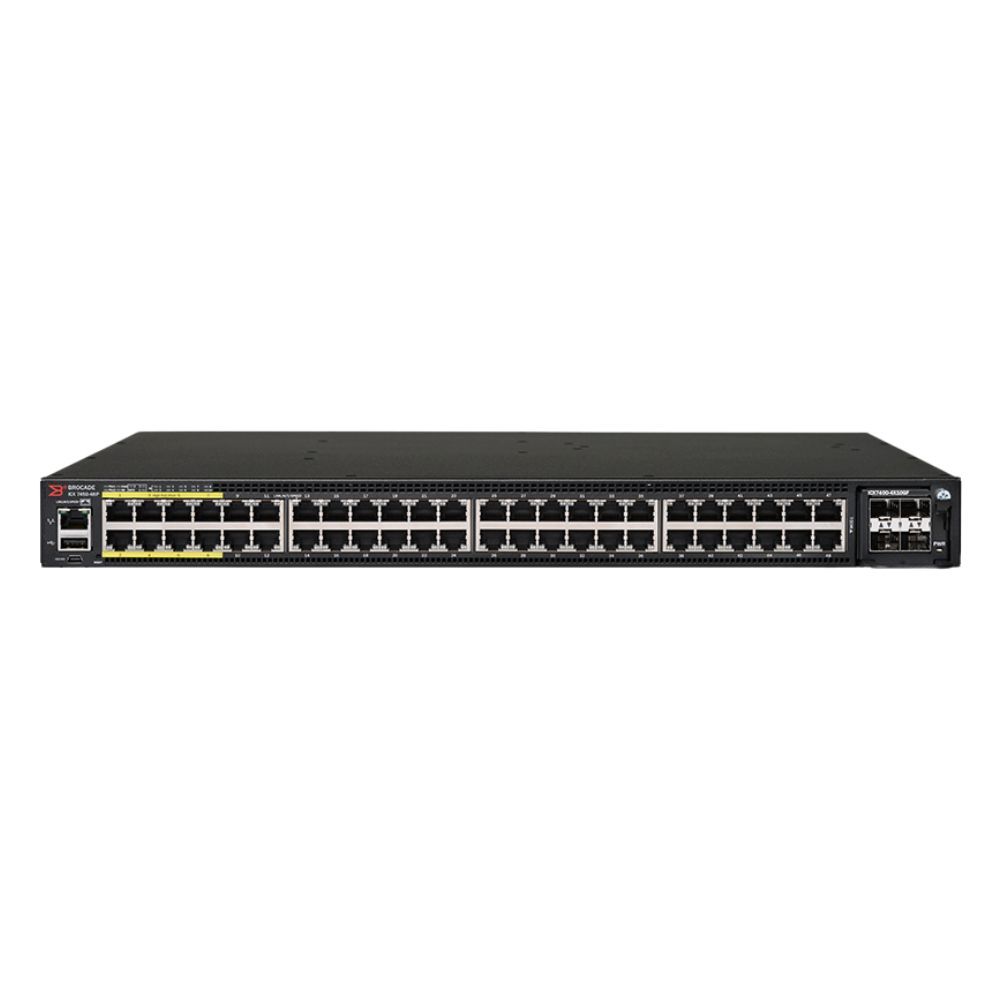

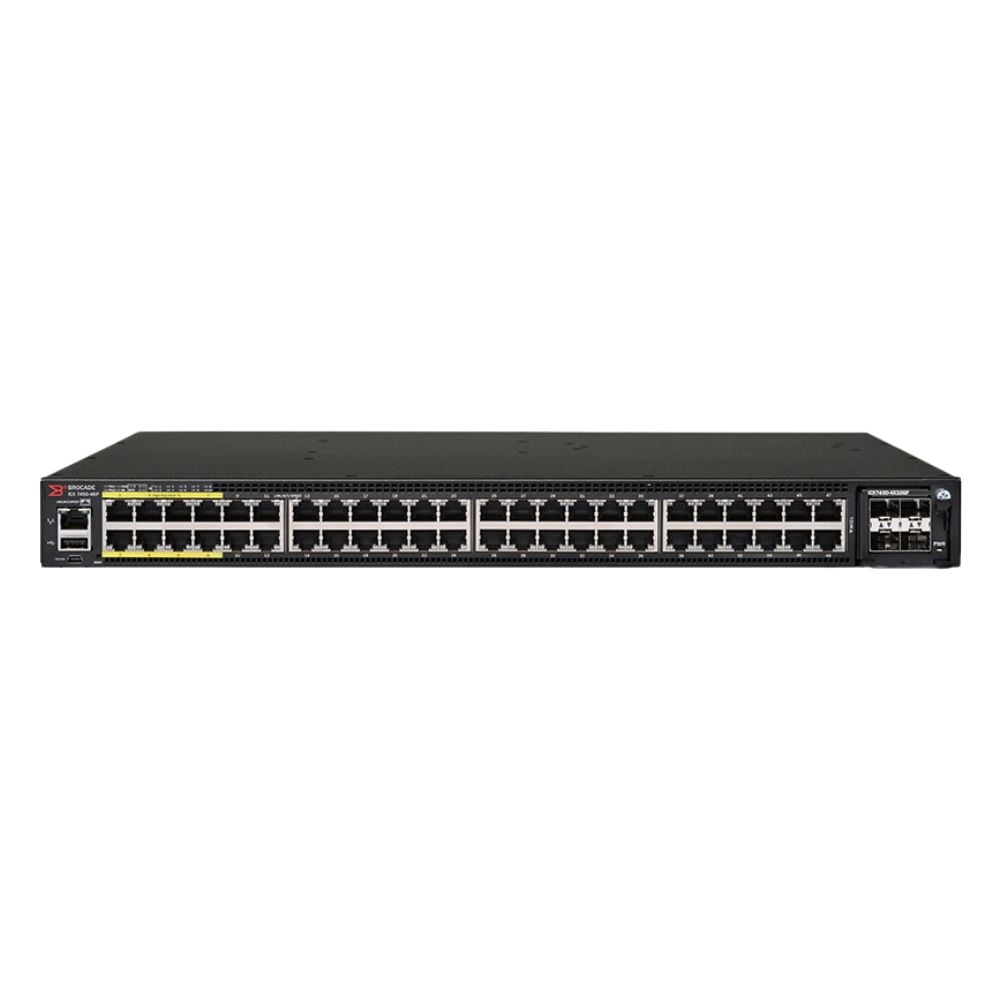

Name: ICX7450-48P-STK-E Ruckus 48x1GbE PoE+ 2x40GbE Stackable L3 Switch
Brand: Ruckus
SKU: ICX7450-48P-STK-E
Price: 814.00 USD
Availability: InStock
Rating: 4.8 (124 reviews)

Product Overview
The ICX7450-48P-STK-E switch from Ruckus delivers 48 1GbE PoE+ ports combined with 2x 40GbE uplink ports designed for stacking and Layer 3 switching. It fits in enterprise network environments where power delivery and routing capabilities are required within a stackable form factor.

General Information
Brand	Ruckus
Condition	Refurbished

Technical Information
Switch Type	Layer 3, Managed Switch, Stackable Switch, PoE Switch, Gigabit Switch
Form Factor	Rack-Mountable
Mount Type	1U Rack
Switch Ports	48
Number of Ports	48-Ports
Port Type	10/100/1000Base-T, 40G QSFP+, RJ-45, USB Console, Serial Console (RJ-45)
Port Speed	1GbE
UpLink Ports	2 x 40GbE (QSFP+)
POE Support	PoE+
Switching Capacity	176 Gbps
Switch Forwarding Rate	130.95 Mpps
VLAN Support	Yes
Max VLANs Supported	1-4094
Stackable	Yes
Layer Support	Layer 3
Connector Type	RJ-45,QSFP+

Performance
Jumbo Frame Support	Up To 9216 Bytes
MAC Address Table Size	32,000

Management and Configuration
Routing Protocols	Static, RIP, OSPF, OSPFv3, VRRP, PIM-SM, IGMP
Remote Protocols	Yes
Management Interfaces	CLI,Web GUI,SNMP (v1/v2/v3),SSH,Telnet,RMON
Security Features	802.1X,ACLs,MAC authentication,Port security,DHCP snooping,IP Source Guard,Dynamic ARP Inspection,Storm control
Management Type	Managed
Security	802.1X,ACLs,DHCP Snooping,MAC Authentication,IP Source Guard,Dynamic ARP Inspection
Remote Management Protocol	SNMP,SSH,Telnet,HTTP/HTTPS
Routing Protocol	Static,RIP,OSPF,OSPFv3,VRRP

Power & Cooling
Fans	Yes (internal, field-replaceable)
Power	AC 100-240V, 50-60Hz; PoE budget up to 740W
Power Supply	Internal AC power supply (single)

Physical Characteristics
Weight	3.00
Operating Temperature	0°C to 40°C

Miscellaneous
Eco Friendly	Yes
Assembly Required	No
Compliance Standards	WEEE, RoHS, CE, FCC, UL
Compliant Standards	IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3z,IEEE 802.3ae,IEEE 802.3af,IEEE 802.3at,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1D,IEEE 802.1w,IEEE 802.1s,IEEE 802.3ad,IEEE 802.3x,IEEE 802.1X

Product Description
The Ruckus ICX7450-48P-STK-E is a Layer 3 stackable switch equipped with 48 1GbE PoE+ ports and dual 40GbE uplinks. It is designed to provide network connectivity with power delivery in enterprise environments requiring robust switching and routing features. IT professionals deploy this switch in mid-sized networks to support devices such as IP phones, wireless access points, and security cameras. This switch supports stacking, allowing multiple units to be managed as a single entity, simplifying network expansion and management tasks. Its Layer 3 functionality enables routing between VLANs and supports advanced network segmentation. Key Features 48 1GbE PoE+ ports supplying power to connected devices 2 40GbE uplink ports for high-speed stacking and network uplink Layer 3 routing capabilities for inter-VLAN communication Stackable chassis for scalable network deployments Designed for enterprise access and aggregation layers The ICX7450-48P-STK-E plays a critical role in consolidating network infrastructure while providing power and data on a single connection. Its stacking feature enhances network resilience and scalability, supporting growing organizational needs without requiring complex management.

Use Cases
This switch is typically deployed in enterprise access and aggregation networks where there is a need to power connected devices such as IP telephones and wireless access points. Its stacking and Layer 3 routing features support environments demanding scalability and segmented traffic management. How It's Used: Providing power and network connectivity to IP phones in office environments Connecting and powering wireless access points in campus networks Stacking multiple switches for simplified management and increased port density Routing traffic between VLANs in segmented enterprise networks Aggregation of user access switches to uplink to core network devices Supporting security camera deployments requiring PoE power Overall, the ICX7450-48P-STK-E assists in consolidating network infrastructure while offering routing and power over Ethernet in a scalable stackable design, which is suitable for growing enterprise networks.

FAQ's
What network speeds do the ports support? The switch provides 48 ports with 1 Gigabit Ethernet speed each and 2 uplink ports at 40 Gigabit Ethernet. What does PoE+ mean on this switch? PoE+ indicates that the 48 Ethernet ports can supply power to connected devices following the IEEE 802.3at standard. Can the ICX7450-48P-STK-E be stacked with other switches? Yes, it supports stacking via the 40GbE ports to operate multiple switches as a single unit. Does this switch support Layer 3 routing? Yes, it includes Layer 3 switching capabilities to route traffic between VLANs. What types of devices can connect to the PoE+ ports? Devices like IP phones, wireless access points, and security cameras that require power over Ethernet can connect to these ports. Is the ICX7450-48P-STK-E suitable for enterprise networks? Yes, it is designed to meet enterprise access and aggregation layer requirements with power delivery and routing features.
