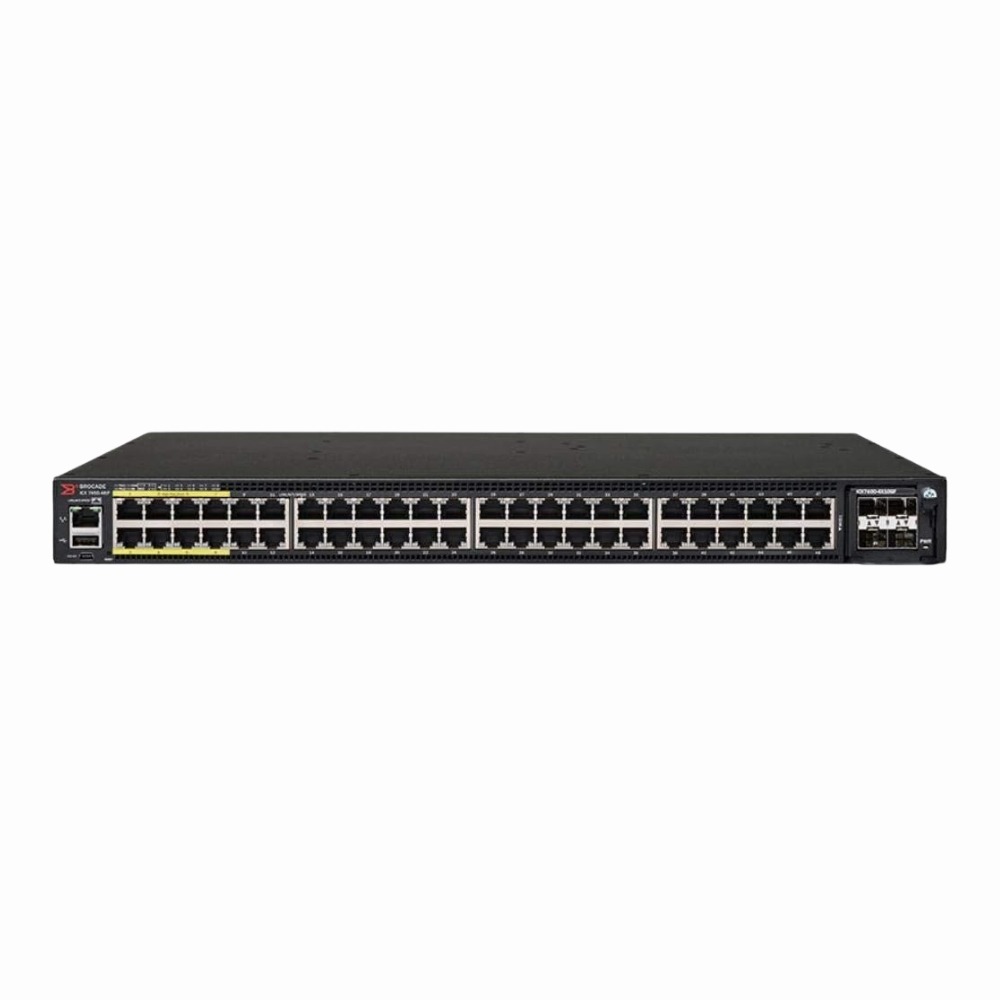

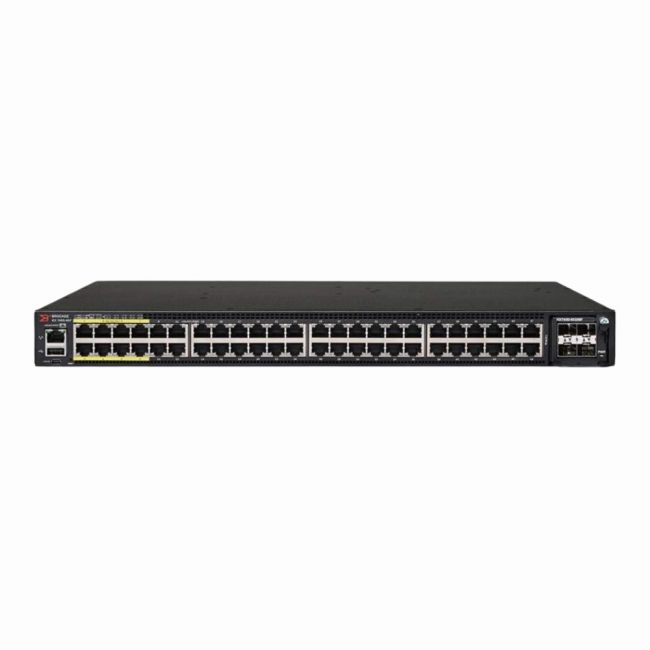

Name: ICX7450-48P-E Brocade ICX 7450 Series 48 x Ports 1000Base-T PoE+ Layer 3 Managed Gigabit Ethernet Switch
Brand: Brocade
SKU: ICX7450-48P-E
Price: 689.00 USD
Availability: InStock
Rating: 4.8 (130 reviews)

Product Overview
The ICX7450-48P-E is a Layer 3 managed Gigabit switch that provides 48 PoE+ ports, allowing it to power connected devices while managing network traffic efficiently. It fits well in enterprise or campus networks where high-speed connectivity and flexible device powering are needed without adding extra power infrastructure.

General Information
Brand	Brocade
Part Number	ICX7450-48P-E
Condition	Refurbished

Technical Information
Switch Ports	48
Number of Ports	48-Ports
Port Type	10/100/1000Base-T, 10G SFP+
Port Speed	1 Gbps
UpLink Ports	4 x 10Gb SFP+
POE Support	PoE+
Switching Capacity	176 Gbps
Switch Forwarding Rate	130.95 Mpps
DRAM	1 GB
Flash Memory	512 MB
VLAN Support	Yes
Max VLANs Supported	1-4094
Stackable	Yes
Layer Support	Layer 3
Connector Type	RJ-45,SFP+

Performance
Jumbo Frame Support	Up To 9216 Bytes
MAC Address Table Size	32K

Management and Configuration
Routing Protocols	Static, RIP, OSPF, BGP, VRRP, HSRP, PIM-SM, IGMP
Remote Protocols	Yes
Management Interfaces	CLI (Console/SSH/Telnet), Web GUI, SNMP, Serial Console (RJ-45), USB Console
Remote Management Protocol	SNMPv1/v2c/v3, SSH, Telnet, HTTP/HTTPS
Routing Protocol	Static,RIP,OSPF,BGP,VRRP

Power & Cooling
Fans	2 (field-replaceable, variable-speed)
Power	AC 100-240V, 50-60Hz; Max PoE budget 740W

Physical Characteristics
Dimensions	1.72 x 17.40 x 15.60 in
Weight	5.00
Operating Temperature	0°C to 40°C (32°F to 104°F)

Miscellaneous
Compliance Standards	WEEE, RoHS, CE, FCC, UL, TUV, cULus
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ae, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.1X, IEEE 802.3x

Product Description
The ICX7450-48P-E from the Brocade ICX 7450 Series is a Layer 3 managed switch that combines robust performance with flexible power over Ethernet functionality. It is often found in enterprise networks where both data and power need to be delivered over a single cable to devices like IP phones, wireless access points, and security cameras. Built for IT professionals managing medium to large networks, this switch simplifies infrastructure by supporting advanced networking protocols and PoE+ power delivery, making it a practical choice for modern, connected workspaces. Key Features Supports up to 48 PoE+ enabled Gigabit Ethernet ports for powering network devices Offers Layer 3 routing functionalities to manage complex network traffic Equipped with 1000Base-T interfaces ensuring stable, high-speed connectivity Includes management tools for easy network configuration and monitoring Designed to integrate seamlessly into enterprise and campus network setups This switch is commonly deployed in office buildings, campuses, and data centers where reliable network performance and power delivery over Ethernet are essential. It helps reduce cable clutter and simplifies deploying and maintaining networked devices.

Use Cases
The ICX7450-48P-E switch is commonly deployed in enterprise and campus environments where dense device connectivity and power delivery are critical. IT teams managing complex networks benefit from its combined Layer 3 routing and PoE+ capabilities, enabling streamlined infrastructure in spaces like office buildings, educational institutions, and branch locations. How It's Used: Supporting VoIP phone systems and wireless access points in corporate office networks requiring centralized power and data management. Enabling network segmentation and inter-VLAN routing in campus networks with diverse traffic profiles and security policies. Providing scalable edge connectivity in remote branch offices where limited rack space and power outlets necessitate integrated PoE+ support. Integrating with virtualization hosts and storage arrays in mid-sized data centers to maintain high throughput and facilitate network segmentation. Powering security cameras and access control devices in smart building deployments with minimal additional cabling or power infrastructure. By combining robust Layer 3 management and PoE+ functionality, this switch supports operational efficiency through simplified network topology and reduced hardware footprint. Its design accommodates growth and evolving network demands without sacrificing performance or manageability.
