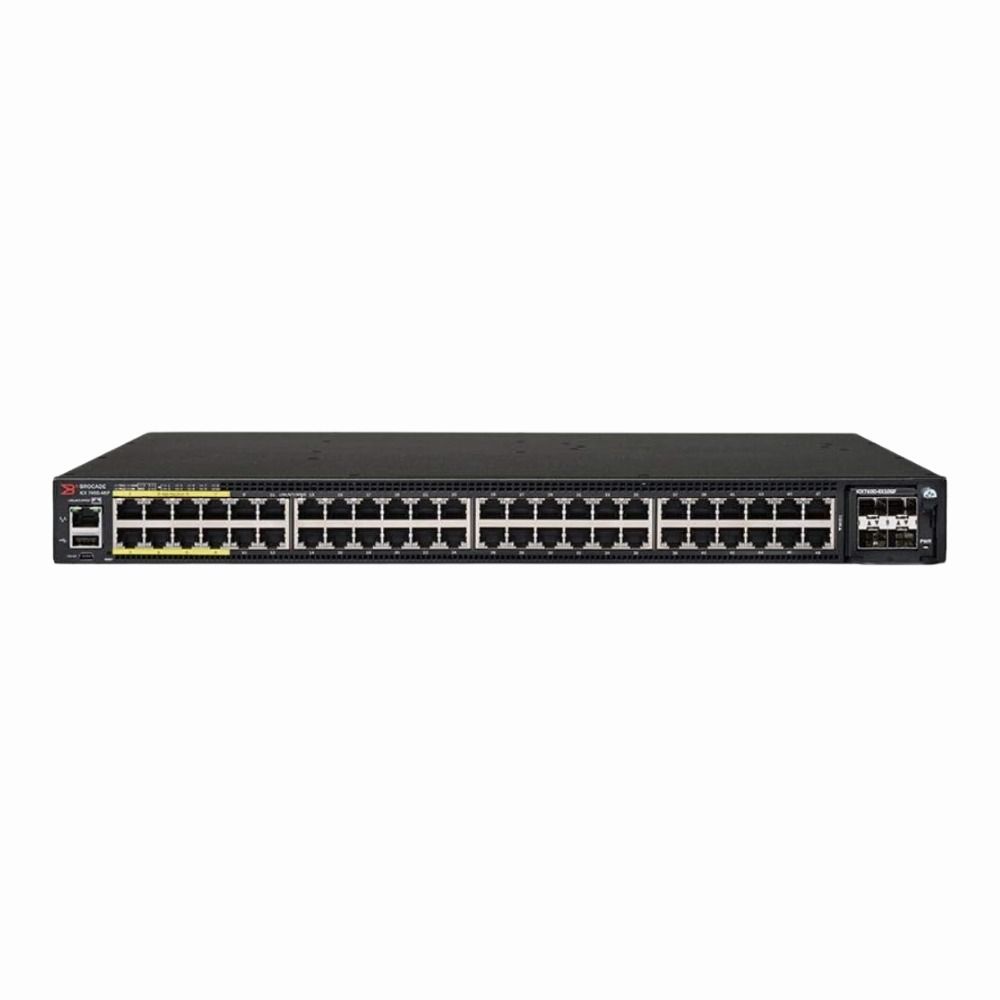

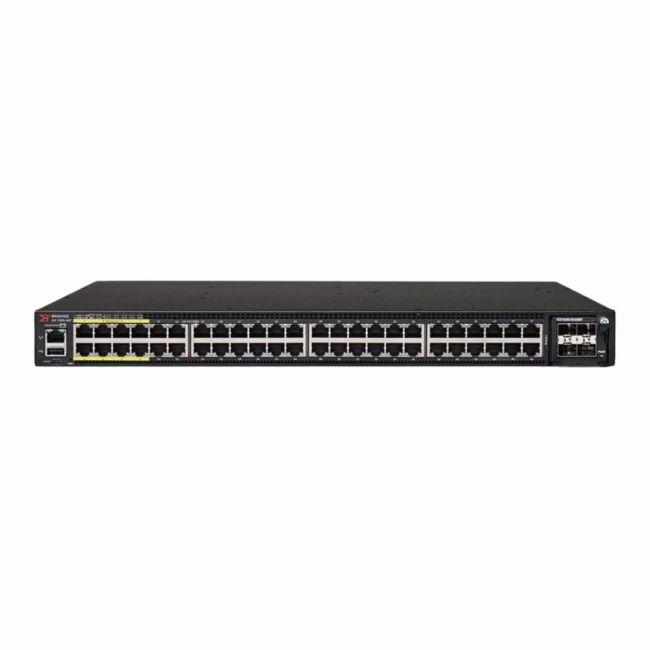

ICX7450-48 Brocade ICX 7450 Series 24 x Ports 1000Base-T Layer 3 Managed Gigabit Ethernet Switch

SKU:
ICX7450-48
Weight: 5.00 lbs
Condition: Refurbished
  • 48-port Gigabit Ethernet switch with 24 ports supporting 1000Base-T
  • Layer 3 managed switch enabling advanced routing capabilities
  • High-performance design suitable for enterprise network environments
  • Robust management features for flexible network control
In stock

$271.00

Product Overview

The Brocade ICX7450-48 is a Layer 3 managed Gigabit switch that fits well in enterprise networks needing solid port density and robust routing. It handles routing and switching tasks in environments like data centers and campus networks, providing both speed and flexibility without unnecessary complexity.

General Information

Brand Brocade
Part Number ICX7450-48
Condition Refurbished

Technical Information

Switch Ports 48
Number of Ports 48-Ports
Port Type 10/100/1000Base-T, SFP+
Port Speed 1 Gbps
UpLink Ports 4
POE Support No
Switching Capacity 176 Gbps
Switch Forwarding Rate 130.95 Mpps
DRAM 1 GB
Flash Memory 512 MB
VLAN Support Yes
Max VLANs Supported 4094
Stackable Yes
Layer Support Layer 3
Connector Type RJ-45,SFP+

Performance

Jumbo Frame Support Up To 9216 Bytes
MAC Address Table Size 32K

Management and Configuration

Routing Protocols Static, RIP, OSPF, BGP, VRRP, PIM-SM, IGMP
Remote Protocols Yes
Management Interfaces Serial Console (RJ-45), USB Console, RJ-45 (out-of-band), SNMP, Web GUI, CLI
Security Features 802.1X,ACLs,Port Security,RADIUS,TACACS+,SSH,IP Source Guard,DHCP Snooping,BPDU Guard,Storm Control
Security 802.1X
Remote Management Protocol SNMP,SSH,Telnet,HTTP/HTTPS
Routing Protocol Static,RIP,OSPF,BGP,VRRP,IGMP,PIM-SM

Power & Cooling

Fans 2 (variable speed, front-to-rear)
Power Max 65 W

Physical Characteristics

Dimensions 1.73 x 17.32 x 16.93 in
Weight 5.00
Operating Temperature 0°C to 40°C

Miscellaneous

Compliance Standards CE, FCC, UL, TUV, cULus
Compliant Standards IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3ae,IEEE 802.1Q,IEEE 802.1p,IEEE 802.3ad,IEEE 802.3x


Product Description

The Brocade ICX7450-48 is a versatile managed switch designed to handle demanding network tasks with ease. It provides 48 ports, including 24 that support 1000Base-T, making it ideal for high-speed data transfer within enterprise setups. Commonly used in data centers, campuses, and large office networks, this switch supports Layer 3 routing to optimize network traffic and improve overall performance.

Network administrators and IT professionals often rely on this switch for its balance of port density and advanced features. Its management capabilities help streamline network operations and enhance control over traffic flows, making it suitable for medium to large scale network deployments.

Key Features

  • Integrated Layer 3 routing for efficient traffic management
  • High port density with 48 total ports including 24 Gigabit Ethernet
  • Supports advanced network protocols for flexibility
  • Enables scalable and reliable network architecture
  • Designed for simplified configuration and monitoring

Typically found in enterprise LAN environments, the ICX7450-48 supports both access and aggregation layers. Its reliability and scalability make it a solid choice for organizations looking to maintain smooth network operations. The device helps to minimize bottlenecks and ensure data flows where it’s needed without interruption.


Use Cases

The Brocade ICX7450-48 switch is commonly deployed in enterprise campus environments and mid-sized data centers where high port density and advanced routing capabilities are essential. Network administrators benefit from its Layer 3 management features to efficiently handle dynamic traffic flows and segmentation within complex network topologies.

How It's Used:

  • Facilitates core switching and inter-VLAN routing in campus LANs supporting faculty and staff connectivity.
  • Serves as an aggregation switch in data centers consolidating server access and storage traffic.
  • Supports network segmentation and routing in enterprise branch offices with mixed wired device deployments.
  • Enables scalable edge computing deployments by managing diverse endpoints and IoT devices.
  • Integrates with virtualization platforms to provide traffic isolation and optimized routing for virtual machines.

This switch enhances operational efficiency by providing flexible Layer 3 routing within dense port environments, allowing for network segmentation and traffic prioritization. Its scalability and management capabilities make it suitable for evolving enterprise infrastructures requiring reliable and high-performance connectivity.
