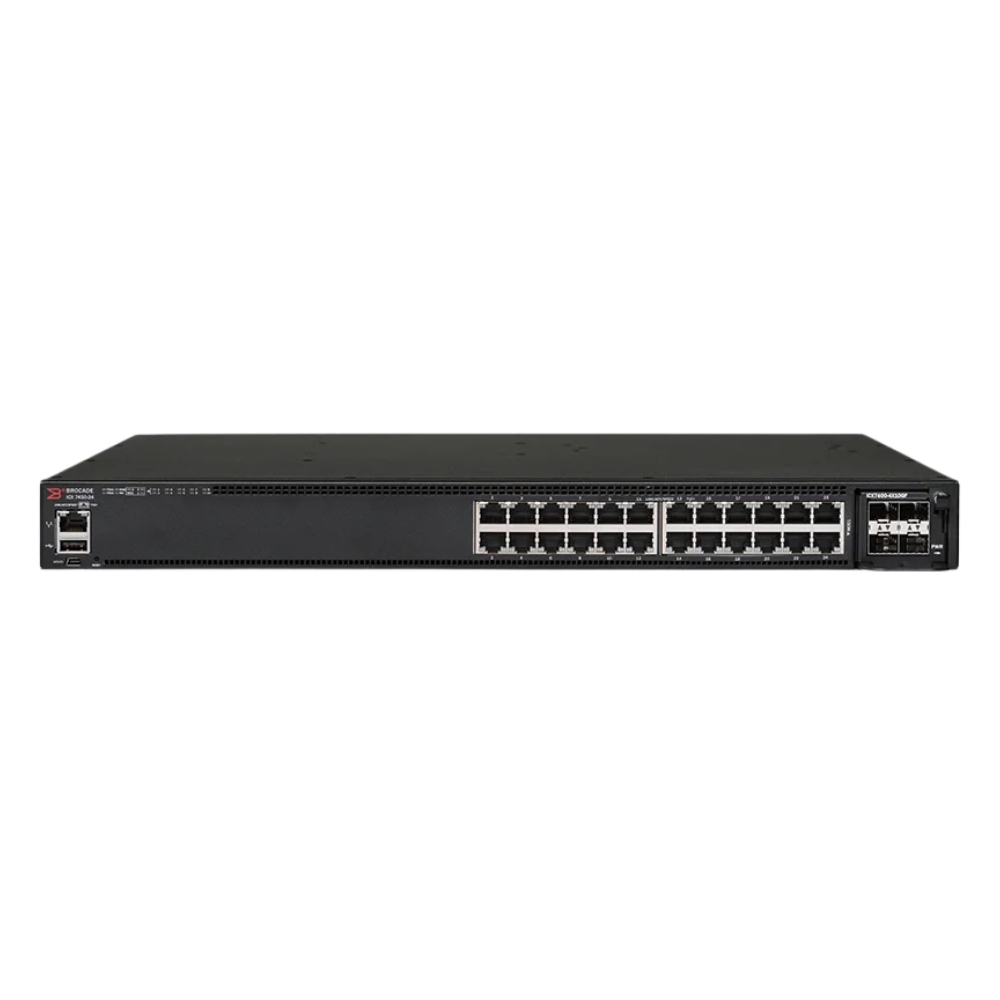

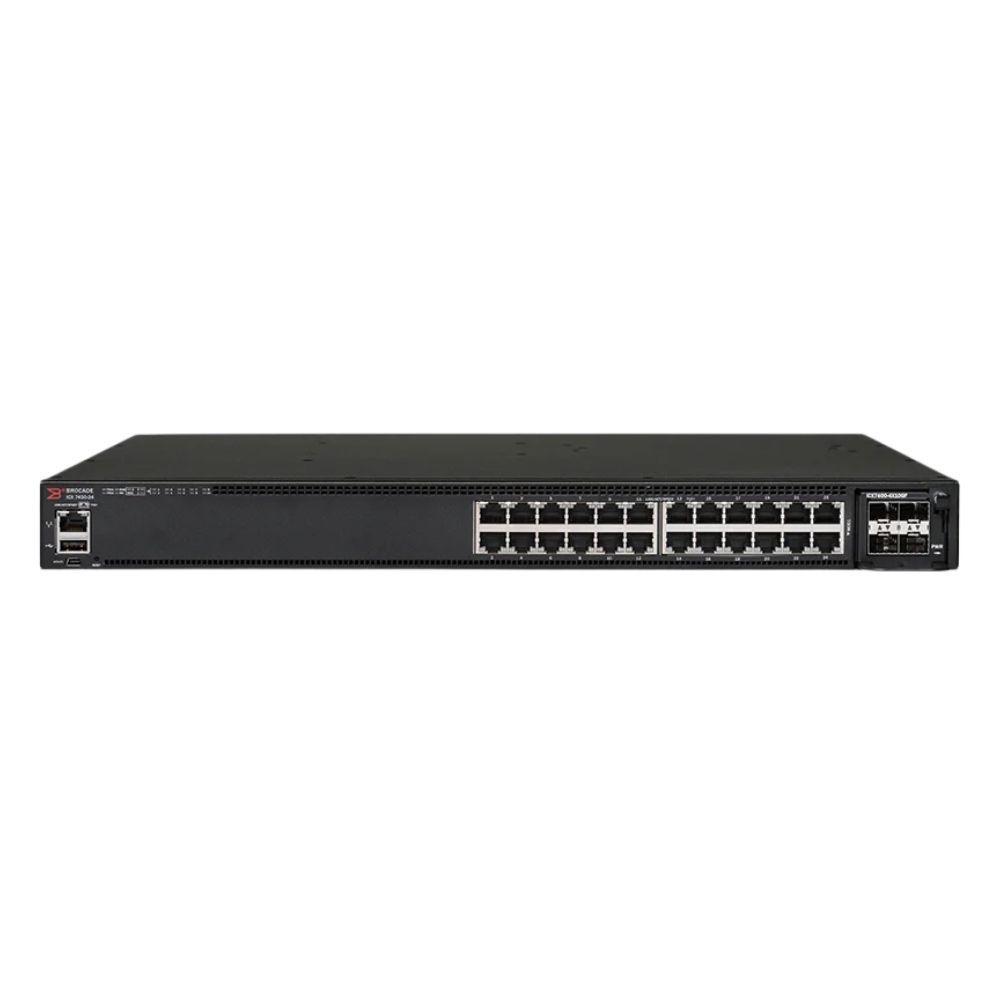

Name: ICX7450-24-E Brocade 24-Port 1000Base-T Layer 3 Gigabit Switch
Brand: Brocade
SKU: ICX7450-24-E
Price: 1050.95 USD
Availability: InStock
Rating: 4.8 (118 reviews)

Product Overview
The ICX7450-24-E is a versatile Layer 3 switch that integrates 24 Gigabit Ethernet ports designed for seamless network performance and routing. It fits well in medium to large network environments where dependable switching and routing capabilities are needed alongside redundancy and scalability.

General Information
Brand	Brocade
Condition	Refurbished

Technical Information
Switch Type	Layer 3, Managed Switch, Stackable Switch, Gigabit Switch
Form Factor	Rack-Mountable
Mount Type	1U Rack
Switch Ports	24
Number of Ports	24-Ports
Port Type	10/100/1000Base-T, 10G SFP+
Port Speed	1 Gbps,10 Gbps
UpLink Ports	4 x 10G SFP+
POE Support	No
Switching Capacity	128 Gbps
Switch Forwarding Rate	95.2 Mpps
DRAM	1 GB
Flash Memory	512 MB
VLAN Support	Yes
Max VLANs Supported	1-4094
Stackable	Yes
Layer Support	Layer 3
Connector Type	RJ-45,SFP+,USB Console,Serial Console (RJ-45)

Performance
Latency	< 10 microseconds
Jumbo Frame Support	Up To 9216 Bytes
MAC Address Table Size	32000

Management and Configuration
Routing Protocols	Static, RIP, RIPng, OSPF, OSPFv3, VRRP, PIM-SM, IGMP
Remote Protocols	Yes
Management Interfaces	Web GUI,CLI (SSH/Telnet),SNMP,Console (Serial),USB
Security Features	802.1X,RADIUS,TACACS+,ACLs,DHCP Snooping,IP Source Guard,ARP Inspection,Storm Control,DoS Protection,SSH,SSL
Management Type	In-Band and Out-of-Band
Security	802.1X,RADIUS,TACACS+,ACLs,DHCP Snooping,IP Source Guard,ARP Inspection
Remote Management Protocol	SNMPv1/v2c/v3,SSH,Telnet,HTTP,HTTPS
Routing Protocol	Static,RIP,OSPF,VRRP,PIM-SM

Power & Cooling
Fans	2 (variable speed)
Power	90 W (max)
Power Supply	Internal, 100-240 VAC, 50/60 Hz

Physical Characteristics
Dimensions	1.7 x 17.4 x 16.9 in
Weight	3.00
Operating Temperature	0°C to 40°C

Miscellaneous
Eco Friendly	Yes
Assembly Required	No
Compliance Standards	RoHS, CE, FCC, cULus
Compliant Standards	IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1D,IEEE 802.1w,IEEE 802.1X,IEEE 802.3ad

Product Description
The ICX7450-24-E is a Layer 3 Gigabit Ethernet switch designed to deliver robust connectivity and routing capabilities. It is commonly used in enterprise networks and data centers where reliable and scalable network infrastructure is essential. Network administrators and IT professionals benefit from its advanced feature set and flexible deployment options. Key Features Offers wire-speed Gigabit Ethernet switching with comprehensive Layer 3 features Supports IPv4 and IPv6 routing protocols including OSPF and RIP Equipped with 24 copper ports for easy integration into existing networks Features redundant power supplies and fans to enhance uptime Provides extensive QoS and security features to manage traffic efficiently This switch plays a key role in maintaining efficient network operations by balancing performance and reliability. Its design ensures consistent throughput and the ability to handle complex routing tasks without compromising stability.

Use Cases
The ICX7450-24-E is typically deployed in enterprise campus networks and data center aggregation layers. It suits environments that require robust Layer 3 routing combined with high-density Gigabit Ethernet connectivity. IT teams managing growing network demands find this switch practical for enhancing network segmentation and traffic management. How It's Used: Aggregating traffic in enterprise campus networks with mixed workloads Providing Layer 3 routing and segmentation for mid-sized data centers Supporting virtualized environments that demand consistent low-latency switching Deploying in edge computing setups where reliability and redundancy are critical Enhancing network security through advanced access control and QoS policies By integrating this switch into various network architectures, organizations improve operational efficiency and achieve scalable performance. Its reliability and feature set contribute to smoother network management and traffic handling.
