ICX7150-C10ZP-2X10GR

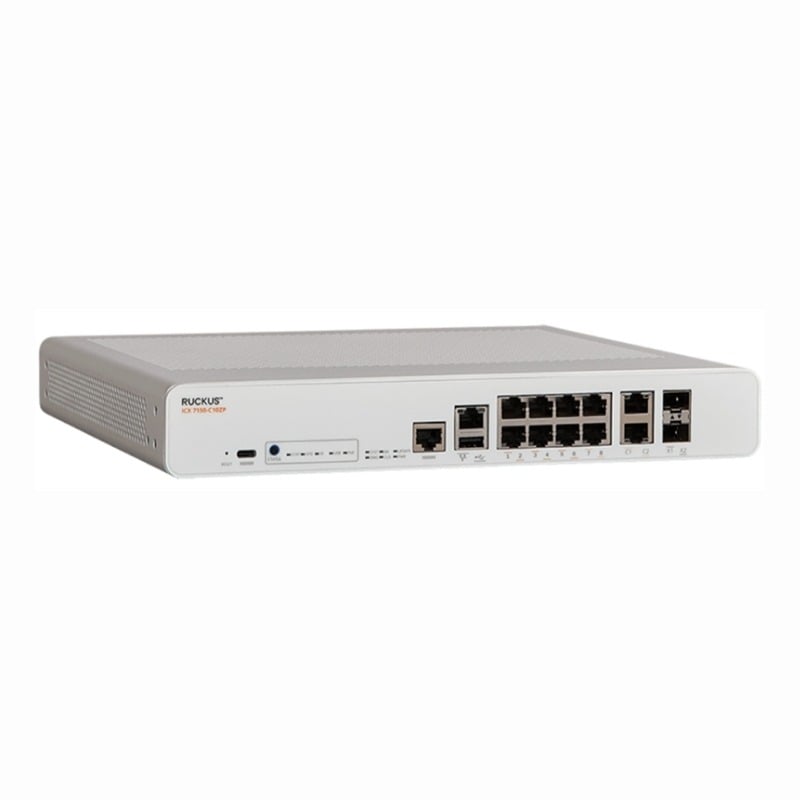

The Ruckus ICX7150-C10ZP-2X10GR is a powerful and compact managed switch designed to meet the growing bandwidth and power demands of modern enterprise networks. This Layer 2/3 switch features 10 multigigabit RJ-45 ports, including 8× 2.5 GbE and 2× 2.5/5/10 GbE ports, providing flexibility and high-speed connectivity for demanding access applications. With support for Power over Ethernet (PoE) across all ports and up to 90W on four 802.3bt-ready PoH ports, it enables simplified deployments of power-hungry devices like wireless access points and surveillance cameras.

It includes 2 x 1/10 GbE SFP/SFP+ uplink or stacking ports, allowing for seamless integration into larger networks or stacking with other ICX switches. A switching capacity of 120 Gbps and forwarding rate of 89 Mpps ensure fast, efficient data handling. With robust management interfaces, including out-of-band Ethernet, USB Type-C, serial console, and USB storage support, this switch is built for operational efficiency in enterprise environments.

Key Features

• 10 x RJ-45 multigigabit ports: 8× 2.5 GbE and 2× 2.5/5/10 GbE

• 2 x 1/10 GbE SFP/SFP+ uplink or stacking ports

• PoE across all ports with 90W max per port on 4 PoH ports

• 240W total PoE power budget

• Switching capacity of 120 Gbps and 89 Mpps forwarding rate

• Jumbo frame support up to 9,216 bytes

• 16,384 MAC address table entries for large-scale deployments

• Out-of-band management with multiple interface options including USB and RJ-45

This switch delivers scalable performance, advanced PoE capabilities, and reliable networking for edge access in enterprise environments, making it ideal for campuses, offices, and branch deployments.
