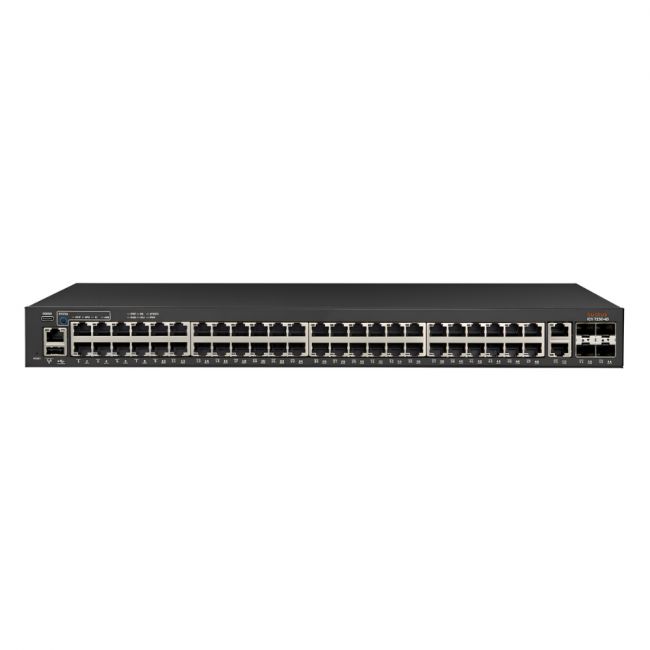

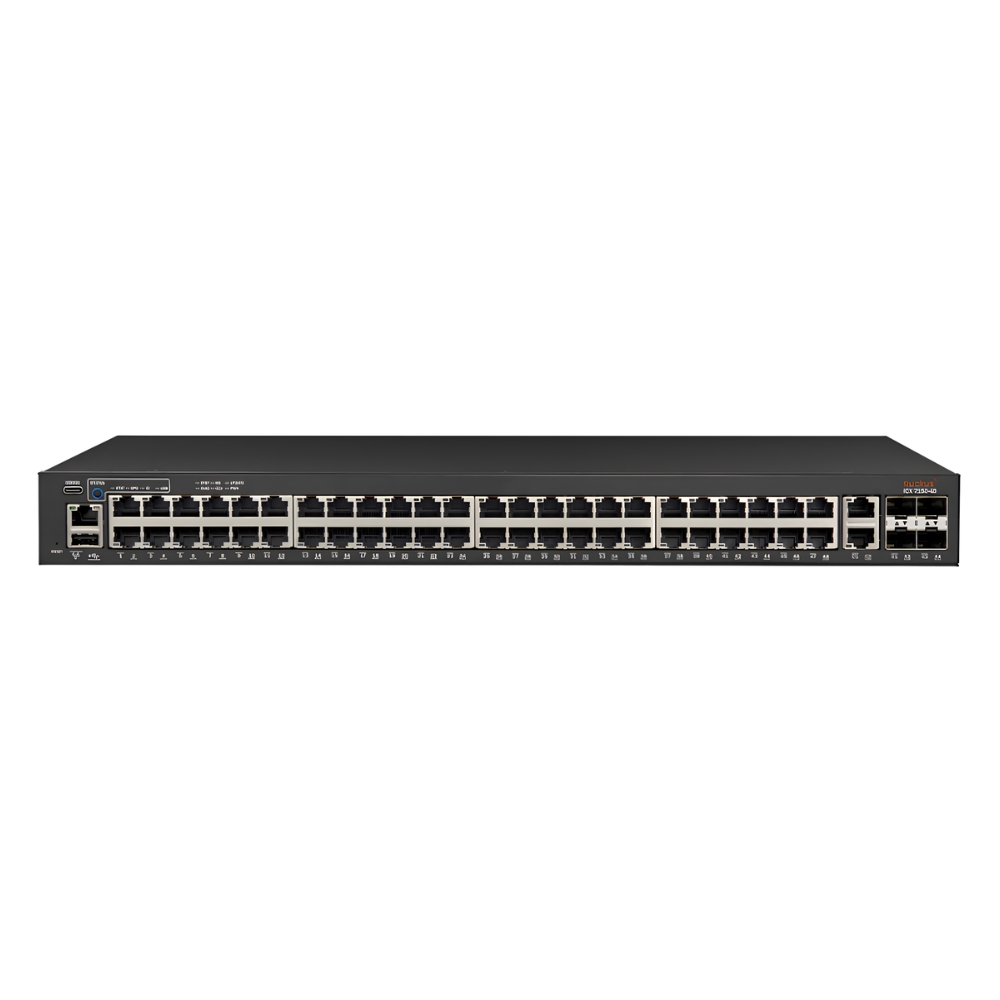

Name: ICX7150-48-4X10GR Brocade 48-Port Gigabit RJ45 4x 10GbE SFP+ Switch
Brand: Brocade
SKU: ICX7150-48-4X10GR
Price: 2498.15 USD
Availability: InStock
Rating: 4.8 (118 reviews)

Product Overview
The ICX7150-48-4X10GR switch integrates 48 Gigabit Ethernet RJ45 ports alongside 4 SFP+ 10 Gigabit uplinks, enabling flexible network architectures. It fits efficiently in rack setups and supports a range of Layer 2 and Layer 3 functionalities, making it a versatile component for modern enterprise networks.

General Information
Brand	Brocade
Condition	Refurbished

Technical Information
Switch Type	Layer 2, Layer 3, Managed Switch, Stackable Switch, Gigabit Switch
Form Factor	Rack-Mountable
Mount Type	1U Rack
Switch Ports	48
Number of Ports	48-Ports
Port Type	10/100/1000Base-T, RJ-45, SFP+, USB Console, Serial Console (RJ-45)
Port Speed	1 Gbps,10 Gbps
UpLink Ports	4 x 10G SFP+
POE Support	No
Switching Capacity	176 Gbps
Switch Forwarding Rate	130.95 Mpps
DRAM	1 GB
Flash Memory	128 MB
VLAN Support	Yes
Max VLANs Supported	4094
Stackable	Yes
Layer Support	Layer 2, Layer 3 Lite
Connector Type	RJ-45,SFP+,USB Console,Serial Console (RJ-45)

Performance
Jumbo Frame Support	Up To 9216 Bytes
MAC Address Table Size	16000

Management and Configuration
Routing Protocols	Static, RIP, OSPF, VRRP, IGMP
Remote Protocols	Yes
Management Interfaces	Web GUI,Command Line (SSH/Telnet),SNMP
Security Features	802.1X,RADIUS/TACACS+,ACLs,Port Security,SSH,SSL,DHCP Snooping,IP Source Guard,ARP Inspection
Management Type	CLI,Web GUI
Remote Management Protocol	SNMP,SSH,Telnet,HTTP,HTTPS
Routing Protocol	Static,RIP

Power & Cooling
Fans	Fanless
Power	45 W
Power Supply	Internal AC 100-240V

Physical Characteristics
Dimensions	1.73 x 17.32 x 9.84 inches
Weight	3.00
Operating Temperature	0°C to 40°C

Miscellaneous
Eco Friendly	Yes
Assembly Required	No
Compliance Standards	RoHS, CE, FCC, cULus
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1X, IEEE 802.1D, IEEE 802.3x

Product Description
The ICX7150-48-4X10GR is a high-performance network switch designed to deliver reliable and scalable connectivity. It is commonly found in enterprise and data center networks where consistent, high-speed access and uplink are essential. Built for IT professionals managing medium to large networks, it supports a blend of RJ45 and SFP+ ports to meet diverse connection needs. Key Features Offers 48 RJ45 ports supporting 1 Gigabit Ethernet connections with PoE options Includes 4 SFP+ ports providing 10 Gigabit uplinks for backbone or server connections Supports advanced networking protocols for flexible Layer 2 and Layer 3 routing Features energy-efficient design to reduce power consumption in dense deployments Designed with a compact form factor suitable for rack installations This switch plays a critical role in ensuring network reliability and smooth data flow across multiple segments. Its balanced port configuration and built-in intelligence offer dependable performance without sacrificing efficiency. The ICX7150-48-4X10GR is well-suited to environments requiring consistent throughput and manageable network growth.

Use Cases
The ICX7150-48-4X10GR switch is typically deployed in enterprise and data center contexts where a combination of high port density and uplink speed is necessary. Network administrators and IT teams benefit from its adaptability and performance features in managing complex, high-traffic environments. How It's Used: Aggregating multiple access-layer switches in medium to large campus networks Providing high-speed uplinks in data center top-of-rack deployments Supporting virtualization infrastructure with reliable 10GbE connections Connecting server clusters and storage arrays requiring robust bandwidth Facilitating network segmentation with advanced Layer 3 routing in enterprise LANs Its combination of port types and performance capabilities makes the ICX7150-48-4X10GR a practical choice for environments requiring scalable and efficient network infrastructure. It supports operational stability and throughput demands typical of evolving IT landscapes.
