Product Overview |
|---|

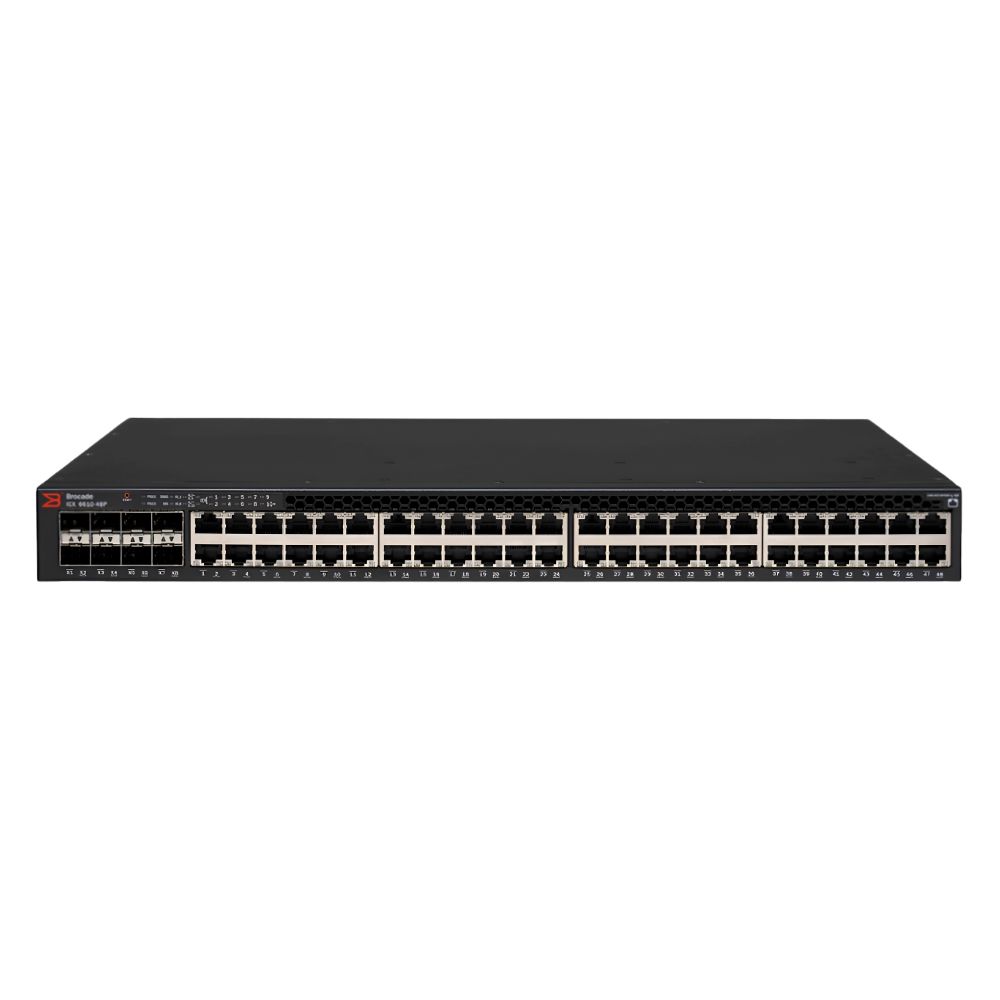

The ICX6610-48-PE Brocade ICX 6610 Switch provides a balanced solution of PoE+ power delivery and high-speed network connectivity. It fits into enterprise and mid-sized network setups where both power and data throughput are priorities, offering Layer 3 routing and energy-efficient operation without unnecessary complexity. |
General Information |
|
|---|---|
| Brand | Brocade |
| Condition | Refurbished |
Technical Information |
|
|---|---|
| Switch Type | Layer 3, Managed Switch, Stackable Switch, PoE Switch, Gigabit Switch |
| Form Factor | Rack-Mountable |
| Mount Type | 1U Rack |
| Switch Ports | 48 |
| Number of Ports | 48-Ports |
| Port Type | 10/100/1000Base-T, 10G SFP+, RJ-45 |
| Port Speed | 10/100/1000Base-T |
| UpLink Ports | 4 x 10G SFP+ |
| POE Support | PoE+ |
| Switching Capacity | 176 Gbps |
| Switch Forwarding Rate | 130.95 Mpps |
| DRAM | 512 MB |
| Flash Memory | 128 MB |
| VLAN Support | Yes |
| Max VLANs Supported | 1-4094 |
| Stackable | Yes |
| Layer Support | Layer 3 |
| Connector Type | RJ-45,SFP+ |
Performance |
|
|---|---|
| Jumbo Frame Support | Up To 9216 Bytes |
| MAC Address Table Size | 32000 |
Management and Configuration |
|
|---|---|
| Routing Protocols | Static, RIP, RIPng, OSPF, OSPFv3, VRRP, IGMP |
| Remote Protocols | Yes |
| Management Interfaces | CLI (Console/SSH),Web GUI,SNMPv1/v2c/v3,RMON,Telnet |
| Security Features | ACLs,802.1X,MAC Authentication,Port Security,DHCP Snooping,IP Source Guard,Storm Control |
| Management Type | Managed |
| Remote Management Protocol | SNMPv1/v2c/v3,SSH,Telnet,HTTPS |
| Routing Protocol | Static,RIP,OSPF,VRRP |
Power & Cooling |
|
|---|---|
| Fans | Variable-speed internal fans (field-replaceable), 2 |
| Power | 740W PoE budget (internal AC power) |
| Power Supply | Internal 100-240VAC, 50/60Hz |
Physical Characteristics |
|
|---|---|
| Dimensions | 1.73 x 17.32 x 15.59 in |
| Weight | 3.00 |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
Miscellaneous |
|
|---|---|
| Assembly Required | No |
| Compliance Standards | WEEE, RoHS, CE, FCC, UL |
| Compliant Standards | IEEE 802.1Q,IEEE 802.1p,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3at,IEEE 802.3az |
Product Description |
|---|
The ICX6610-48-PE Brocade ICX 6610 Switch is built for high-capacity network environments requiring reliable connectivity and power delivery over Ethernet. Often found in enterprise and campus setups, it delivers advanced Layer 3 features to support complex routing and switching tasks. Commonly deployed where both data and power are needed simultaneously, this switch is suited for network administrators and IT teams managing scalable infrastructures. It supports seamless integration with existing network architectures and offers flexibility through its multiple uplink options. Key Features
This switch plays a critical role in environments where dependable power and data transport are essential. Its design emphasizes reliable performance under continuous operation, ensuring consistent network availability. With its combination of power capabilities and advanced networking features, the ICX6610-48-PE supports efficient network scaling and stable operation across a variety of IT infrastructures. |
Use Cases |
|---|
The ICX6610-48-PE switch is typically used in enterprise campuses, branch offices, and data aggregation points where both power and network connectivity are required on a large scale. IT teams benefit from its ability to support power-hungry devices alongside high-speed data traffic. How It's Used:
This switch helps maintain operational efficiency by combining power delivery and advanced switching features. Its scalability and protocol support enable smooth network growth and keep performance steady as demands increase. |
