Name: ICX6610-24-E Brocade 24x1GbE 8xSFP+ 1U Layer 3 Stackable Switch
Brand: Brocade
SKU: ICX6610-24-E
Price: 230.88 USD
Availability: InStock
Rating: 4.8 (124 reviews)

Product Overview

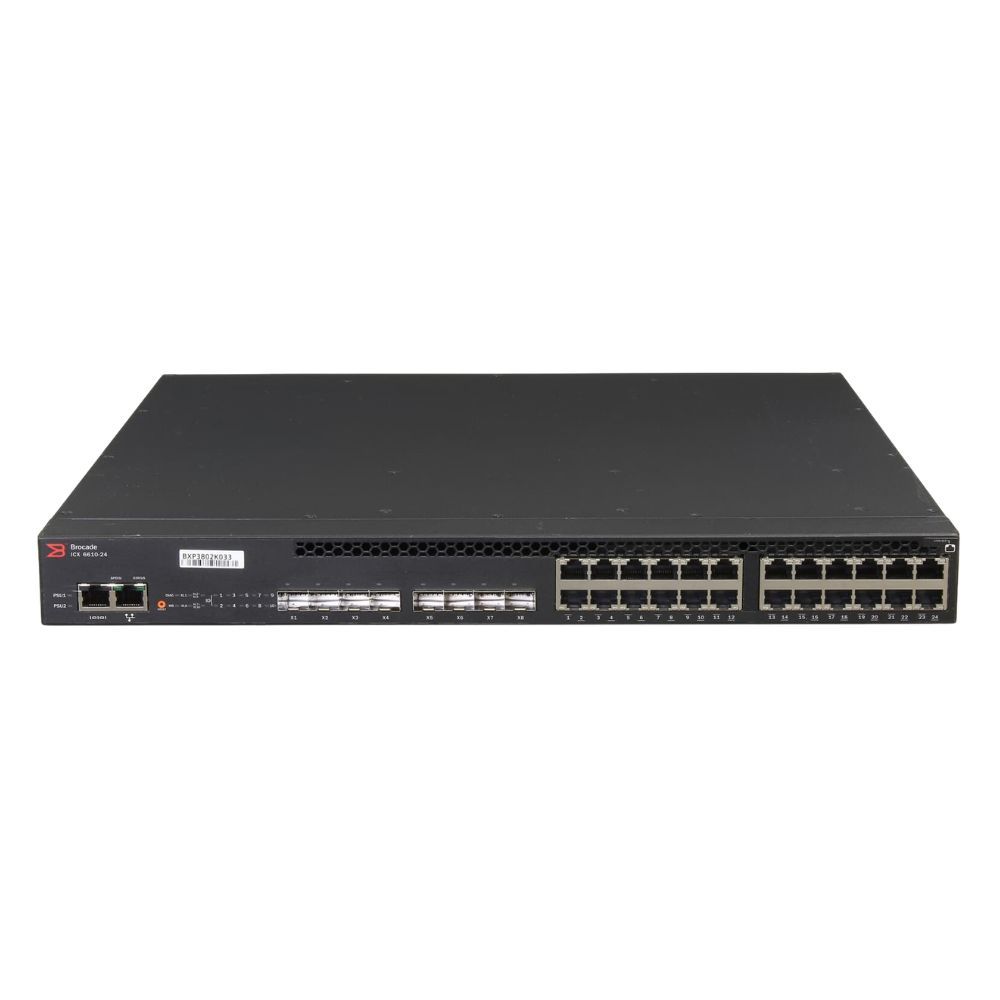

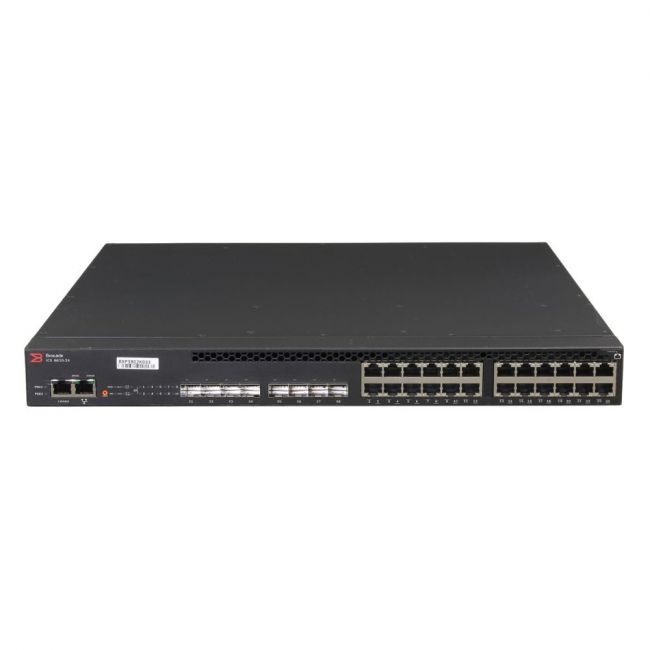

The Brocade ICX6610-24-E switch delivers a combination of 24 1GbE ports and 8 10GbE SFP+ ports within a 1U rack-mountable chassis. It supports Layer 3 switching and stacking, making it suitable for network environments requiring scalable, high-density connectivity and routing capabilities.

General Information
Brand	Brocade
Condition	Refurbished

Technical Information
Switch Type	Layer 3, Managed Switch, Stackable Switch, Gigabit Switch
Form Factor	Rack-Mountable
Mount Type	1U Rack
Number of Ports	24-Ports
Port Type	10/100/1000Base-T, 10G SFP+, RJ-45, USB Console, Serial Console (RJ-45)
Port Speed	1Gbps,10Gbps
UpLink Ports	8
POE Support	No
VLAN Support	Yes
Max VLANs Supported	1-4094
Stackable	Yes
Layer Support	Layer 2, Layer 3
Connector Type	RJ-45,SFP+,USB Console,Serial Console (RJ-45)

Performance
Jumbo Frame Support	Up To 9216 Bytes

Management and Configuration
Routing Protocols	Static, RIP, RIPng, OSPF, OSPFv3, VRRP, HSRP, PIM-SM, IGMP
Remote Protocols	Yes
Management Interfaces	CLI (SSH/Telnet), Web GUI (HTTP/HTTPS), Serial Console, SNMP
Security Features	802.1X, Access Control Lists (ACLs), Port Security, MAC Authentication, DHCP Snooping, IP Source Guard, Storm Control
Management Type	CLI, Web-Based (GUI), SNMP
Remote Management Protocol	SNMPv1,SNMPv2c,SNMPv3,SSH,Telnet,HTTP,HTTPS
Routing Protocol	Static,RIP,OSPF,VRRP,HSRP

Power & Cooling
Power Supply	Internal AC 100-240V, 50/60Hz

Physical Characteristics
Weight	3.00
Operating Temperature	0°C to 40°C

Miscellaneous
Eco Friendly	Yes
Assembly Required	No
Compliance Standards	RoHS, CE, FCC, UL

Product Description
The Brocade ICX6610-24-E is a stackable Layer 3 switch designed to provide versatile network connectivity with a combination of 24 1GbE ports and 8 10GbE SFP+ ports. It fits into standard 1U rack spaces, making it suitable for enterprise and campus network deployments where space efficiency and scalability are important. This switch is typically used by network administrators in environments requiring flexible port configurations and advanced Layer 3 features. Its stackable design allows aggregation of multiple units for simplified management and enhanced capacity. Key Features 24 10/100/1000 Mbps Ethernet ports for standard network connections 8 SFP+ ports supporting 10 Gigabit Ethernet uplinks or stacking Layer 3 switching functionality for routing and traffic management 1U form factor optimized for rack installation in networking closets or data centers Stackable architecture for combining multiple switches into a single logical unit This switch serves as a flexible building block for mid-sized to large networks, offering a mix of port speeds and routing capabilities. Its stacking feature supports scalable network growth and simplified operations by enabling management of multiple switches as one device.

Use Cases
The Brocade ICX6610-24-E is commonly deployed in enterprise campus networks, data centers, and branch offices where a balance of 1GbE and 10GbE connections is needed. It supports environments that require Layer 3 routing and scalable switch stacking to simplify management. How It's Used: Providing access layer connectivity in campus buildings with mixed 1GbE and 10GbE device requirements Aggregation switch in data center environments connecting servers and uplinks Stacking multiple switches for simplified management in medium-sized enterprises Layer 3 routing for inter-VLAN traffic and network segmentation Rack-mount deployment in network closets or server rooms with limited space By integrating multiple port speeds and stacking functionality, this switch supports network expansion and operational efficiency. It helps manage traffic routing and device connectivity in structured networks without requiring separate routing devices.

FAQ's
What types of ports does the ICX6610-24-E include? This switch includes 24 1 Gigabit Ethernet ports and 8 SFP+ ports that support 10 Gigabit Ethernet connections for uplinks or stacking. Can the ICX6610-24-E be stacked with other switches? Yes, the ICX6610-24-E supports stacking, allowing multiple units to operate as a single logical switch for simplified management. What is the physical size of the ICX6610-24-E switch? The switch has a 1U rack-mount form factor designed for installation in standard network racks or server cabinets. Does the switch support Layer 3 routing functions? Yes, the ICX6610-24-E offers Layer 3 switching capabilities suitable for routing and managing traffic between VLANs. What environments are suitable for deploying this switch? It is suited for enterprise campuses, data centers, and branch offices requiring a mix of 1GbE and 10GbE connectivity with routing features. Are the SFP+ ports compatible with standard 10G modules? The SFP+ ports support 10 Gigabit Ethernet modules compatible with standard SFP+ transceivers used for uplink or stacking connections.
