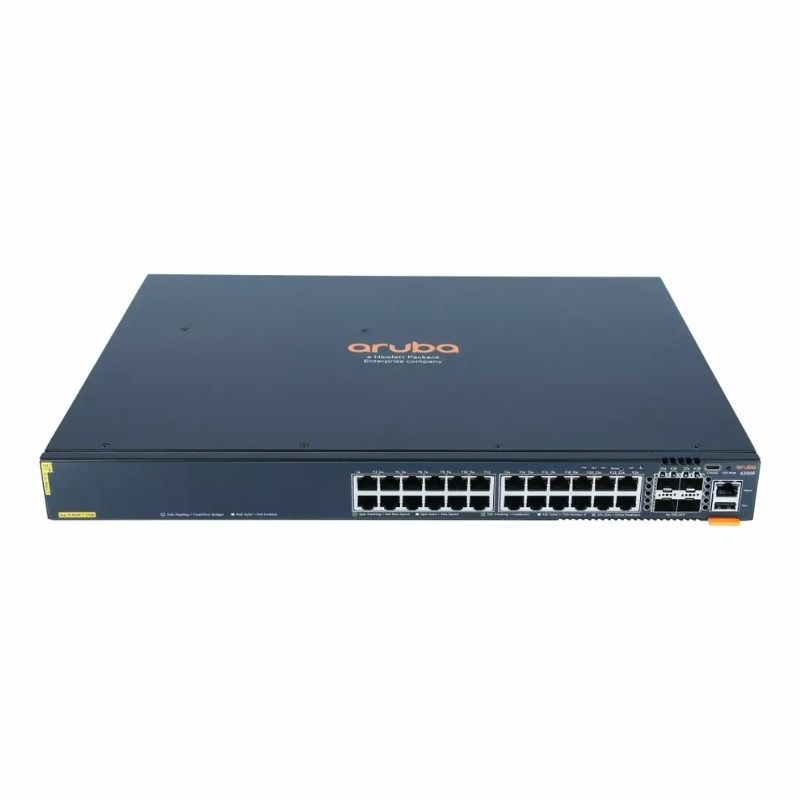

Name: JL725A HP Aruba 6200F Series 6200F 24G Class4 PoE 4SFP+ 24 x RJ-45 Ports PoE 10/100/1000Base-T + 4 x SFP+ Ports Layer 3 Managed Rack-mountable Gigabit Ethernet Network Switch
Brand: Aruba Networks
SKU: JL725A
Price: 1192.00 USD
Availability: InStock
Rating: 4.9 (108 reviews)

Product Overview
The HP Aruba 6200F Series 24G switch offers a balanced mix of power, speed, and manageability. It's designed to support enterprise needs for PoE connectivity and high-speed uplinks in a rack-mountable form factor. This switch fits well in networks where powering edge devices and handling complex routing are both essential.

General Information
Brand	Aruba Networks
Part Number	JL725A
Condition	Refurbished

Technical Information
Switch Ports	24
Number of Ports	24-Ports
Port Type	10/100/1000Base-T, 10G SFP+
Port Speed	1 Gbps,10 Gbps
UpLink Ports	4 x 10G SFP+
POE Support	PoE+
Switching Capacity	128 Gbps
Switch Forwarding Rate	95.24 Mpps
DRAM	512 MB
Flash Memory	256 MB
VLAN Support	Yes
Max VLANs Supported	1-4094
Stackable	Yes
Layer Support	Layer 3
Connector Type	RJ-45,SFP+

Performance
Latency	Wire‑speed, low latency switching (typical < 5 µs for Gigabit ports)
Jumbo Frame Support	Up To 9216 Bytes
MAC Address Table Size	32K

Management and Configuration
Routing Protocols	Static, RIP, OSPF, BGP, VRRP, HSRP, PIM-SM, IGMP
Remote Protocols	Yes
Management Interfaces	Web GUI (HTTP/HTTPS), CLI (SSH, Console), SNMP, REST API
Security Features	802.1X, ACLs, SSH, HTTPS, RADIUS, TACACS+, DHCP Snooping, IP Source Guard, Storm Control, DoS protection, Port security
Remote Management Protocol	SNMPv1/v2c/v3, SSH, HTTP/HTTPS, Telnet, REST API
Routing Protocol	Static, OSPF, BGP

Power & Cooling
Power	AC 100-240V, 50/60Hz; PoE budget: 370W

Physical Characteristics
Dimensions	1.73 in x 17.5 in x 12.12 in (44 x 444 x 308 mm)
Weight	5.00
Operating Temperature	0°C to 45°C

Miscellaneous
Eco Friendly	Yes
Compliance Standards	WEEE, RoHS, CE, FCC, UL, cULus
Compliant Standards	IEEE 802.3,802.3u,802.3ab,802.3z,802.3x,802.1Q,802.1p,802.1D,802.1w,802.1s,802.3af,802.3at,802.3ad,802.3az

Product Description
The HP Aruba 6200F Series switch is built for mid-sized to large networks requiring reliable, high-performance connectivity. It provides power over Ethernet to compatible devices, making it ideal for powering IP phones, cameras, and access points directly through the network cable. Often found in enterprise campuses and data centers, this switch supports advanced Layer 3 routing features, helping network admins manage traffic efficiently and securely. IT professionals looking for a flexible, manageable switch benefit from its robust capabilities and streamlined installation. Key Features Class 4 PoE delivers up to 30W per port for powering devices without extra cabling Four 10 GbE SFP+ ports enable high-speed uplinks or stacking options Comprehensive Layer 3 features support routing protocols like OSPF and RIP Supports IPv4 and IPv6 for future-proof network scalability Rack-mountable metal chassis fits standard 19-inch racks This switch is typically deployed in office wiring closets or network aggregation points where both power and data delivery are needed. It helps simplify infrastructure by combining data and power into a single device while providing the routing capabilities required to segment and secure networks.
