| Product Overview |
|---|

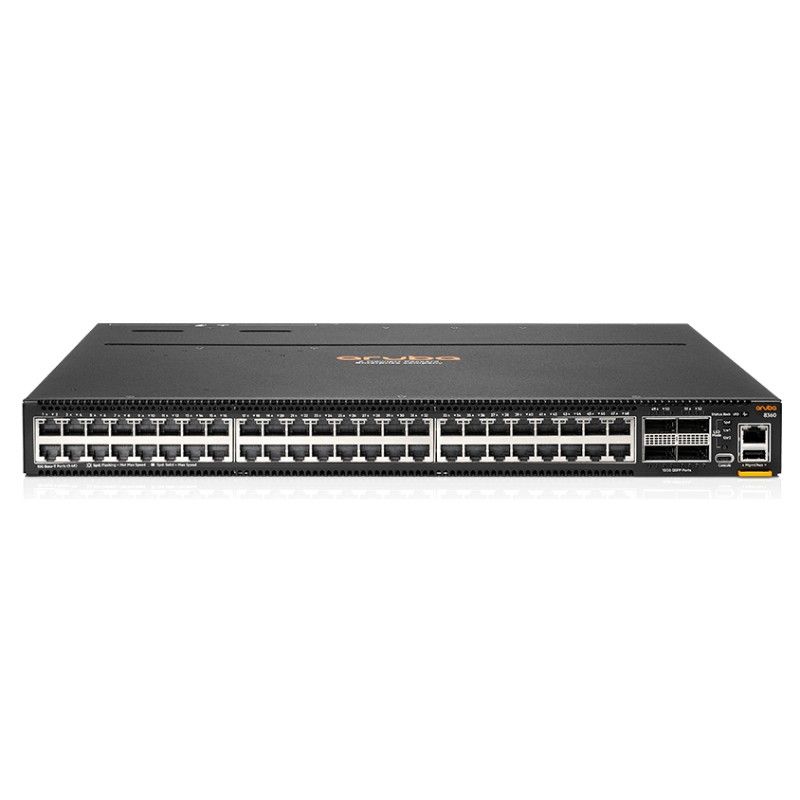

The HPE JL707A 8360-48XT4C Layer 3 Switch combines high-density 10/25GbE ports with 100GbE uplink capabilities, making it a solid choice for enterprise and data center networks needing flexible, fast routing and switching. It fits well in setups that require both advanced Layer 3 features and scalable performance. |
| General Information | |
|---|---|
| Brand | Aruba Networks |
| Part Number | JL707A |
| Condition | Refurbished |
| Technical Information | |
|---|---|
| Switch Ports | 48 |
| Number of Ports | 48-Ports |
| Port Type | 10GBase-T, 100G QSFP28, RJ-45 |
| Port Speed | 10GBase-T |
| UpLink Ports | 4 x QSFP28 (100G) |
| POE Support | No |
| Switching Capacity | 1.76 Tbps |
| DRAM | 8 GB |
| Flash Memory | 16 GB |
| VLAN Support | Yes |
| Max VLANs Supported | 1-4094 |
| Stackable | Yes |
| Layer Support | Layer 3 |
| Connector Type | RJ-45,QSFP28 |
| Performance | |
|---|---|
| Jumbo Frame Support | Up To 9216 Bytes |
| MAC Address Table Size | 256K |
| Management and Configuration | |
|---|---|
| Routing Protocols | Static, OSPF, OSPFv3, BGP, VRRP, PIM-SM, IGMP |
| Remote Protocols | Yes |
| Management Interfaces | CLI (SSH/Console),Web GUI (HTTP/HTTPS),SNMP,REST API,USB Console,Serial Console (RJ-45) |
| Security Features | ACLs,802.1X,MAC Authentication,SSH,HTTPS,Role-based Access Control (RBAC),Secure Boot |
| Management Type | On-box (ArubaOS-CX),Cloud (Aruba Central),CLI |
| Security | 802.1X,MAC Authentication,Access Control Lists (ACLs),RADIUS, TACACS+ |
| Remote Management Protocol | SSH,HTTPS,SNMPv3,REST API |
| Routing Protocol | Static,OSPF,OSPFv3,BGP,VRRP,IGMP,PIM-SM |
| Power & Cooling | |
|---|---|
| Fans | Hot-swappable fans (front-to-back), 4 |
| Physical Characteristics | |
|---|---|
| Weight | 5.00 |
| Operating Temperature | 0°C to 45°C |
| Miscellaneous | |
|---|---|
| Eco Friendly | Yes |
| Compliance Standards | RoHS, CE, FCC, UL, TUV, cULus |
| Product Description |
|---|
The HPE JL707A 8360-48XT4C is a robust Layer 3 switch built to manage high-bandwidth network traffic with precision. It is often found in data centers and large enterprise networks where fast, reliable routing and switching are critical. Network professionals and IT teams rely on this switch to support complex network architectures and enhance overall performance. Key Features
This switch is commonly deployed in environments where network speed and reliability are paramount, including data centers and campus core networks. It helps organizations maintain smooth data flow and supports the increased traffic demands of modern applications without compromise. |
