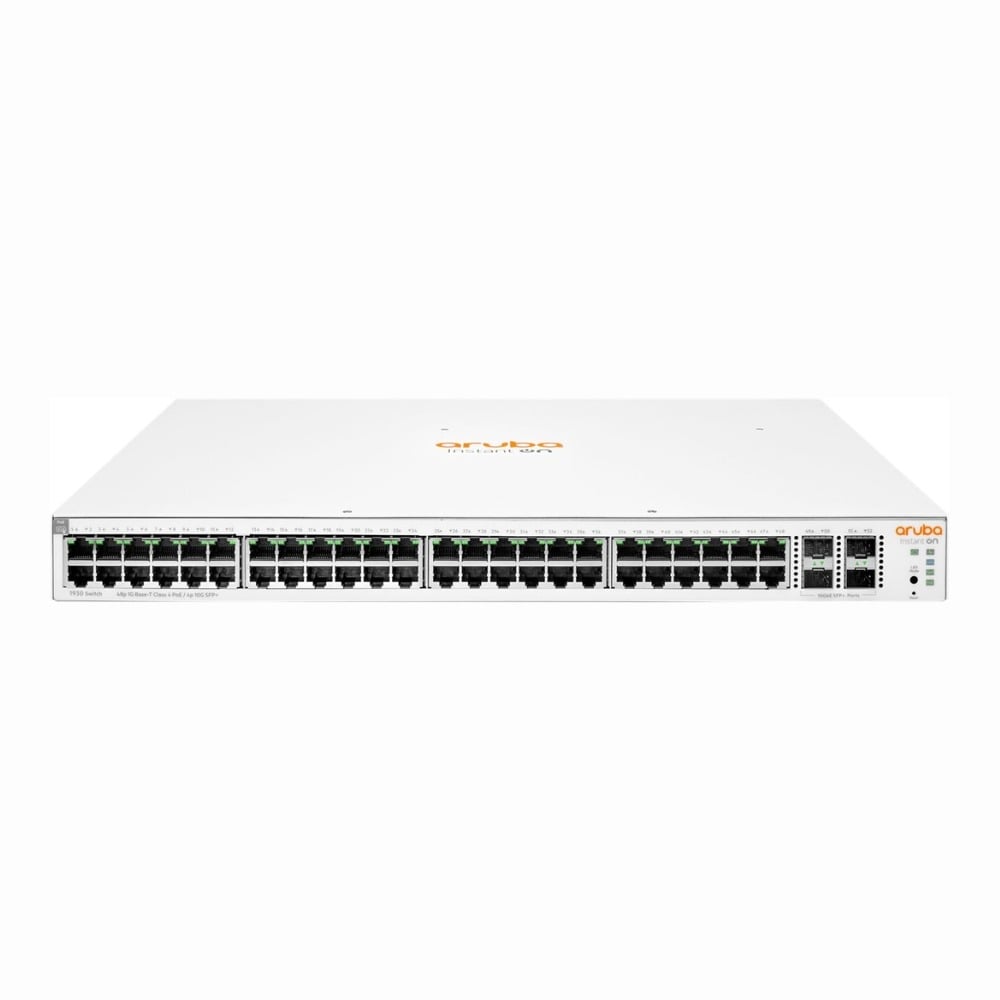

Name: JL686A HP Instant On 1930 48G Class4 48 x Ports 1000Base-T PoE+ + 4 x Ports SFP+ Rack-mountable Layer 2 Managed Gigabit Ethernet Network Switch
Brand: Aruba Networks
SKU: JL686A
Price: 880.00 USD
Availability: InStock
Rating: 4.9 (108 reviews)

Product Overview
The HP Instant On 1930 48G Class4 switch delivers a solid layer 2 managed experience with plenty of Gigabit PoE+ ports and high-speed uplinks. It’s well-suited for medium-sized business networks that require dependable device powering and flexible connectivity options, fitting neatly into standard rack setups for easy integration.

General Information
Brand	Aruba Networks
Part Number	JL686A
Condition	Refurbished

Technical Information
Switch Ports	48 x 10/100/1000Base-T PoE+ ports, 4 x SFP+ 10GbE uplink ports
Number of Ports	52-Ports
Port Type	10/100/1000Base-T, RJ-45, SFP+
Port Speed	10/100/1000 Mbps, 10 Gbps
UpLink Ports	4
POE Support	PoE+
Switching Capacity	176 Gbps
Switch Forwarding Rate	343.75 Mpps (176 Gbps switching capacity)
DRAM	256 MB
Flash Memory	128 MB
VLAN Support	Yes
Max VLANs Supported	1-4094
Stackable	No
Layer Support	Layer 2
Connector Type	RJ-45,SFP+

Performance
Jumbo Frame Support	Up To 9216 Bytes
MAC Address Table Size	16,000

Management and Configuration
Routing Protocols	Static
Remote Protocols	Yes
Management Interfaces	Web GUI (HTTP/HTTPS), CLI (serial console), SNMPv1/v2c/v3, SSH, RMON
Security Features	802.1X (port-based), MAC-based authentication, RADIUS, TACACS+, SSH v2, SSL/HTTPS, Access Control Lists (ACLs), DoS protection, Storm control, BPDU guard, Port security
Management Type	Web GUI (Instant On), Command Line (serial), SNMP v1/v2c/v3, REST/Cloud (Instant On app), RMON
Remote Management Protocol	SNMP,HTTP,HTTPS,SSH
Routing Protocol	Layer 2 with Static routing (basic L3)

Power & Cooling
Power	AC 100-240V, 50/60 Hz; PoE budget ~370W

Physical Characteristics
Dimensions	44 x 440 x 303 mm (1.73 x 17.32 x 11.93 in)
Weight	5.00
Operating Temperature	0°C to 40°C

Miscellaneous
Eco Friendly	Yes
Assembly Required	Yes
Compliance Standards	WEEE, RoHS, CE, FCC, UL
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1D, IEEE 802.1W, IEEE 802.1X, IEEE 802.3af, IEEE 802.3at

Product Description
The HP Instant On 1930 48G Class4 is a managed network switch designed to handle high-demand environments with ease. Often found in small to medium-sized businesses, it provides reliable connectivity and power to various network devices such as IP phones, cameras, and wireless access points. Built for IT professionals and network administrators, the switch supports advanced network management tools to optimize performance and security. Its rack-mountable form factor makes it a practical choice for data centers and network closets. Key Features Comprehensive Layer 2 features including VLAN support and traffic prioritization PoE+ on all 48 ports to power network devices without extra cabling Four SFP+ ports for flexible, high-speed uplink connections Intuitive web interface for easy setup and monitoring Energy-efficient design helps reduce operating costs This switch is typically deployed in office networks, retail stores, and other environments needing reliable gigabit connectivity combined with PoE capabilities. It helps simplify network infrastructure by consolidating power and data, making network management more straightforward.
