| Product Overview |
|---|

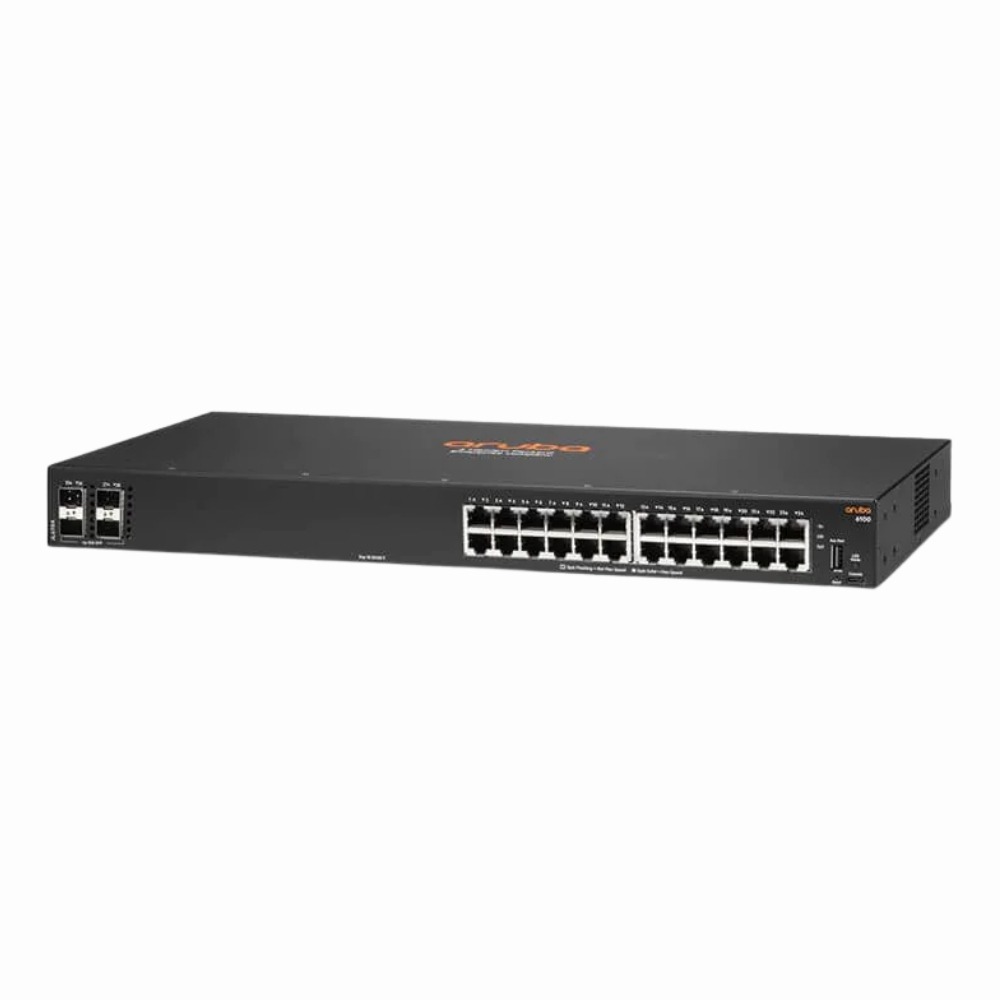

The HP Aruba 6100 Series 24G 4SFP+ switch provides a balance of gigabit access and 10Gbps uplinks within a compact 1U rack-mount chassis. It fits well in enterprise networks requiring managed Layer 3 capabilities, offering routing, security, and flexible connectivity suited for various business environments. |
| General Information | |
|---|---|
| Brand | Aruba Networks |
| Part Number | JL678A |
| Condition | Refurbished |
| Technical Information | |
|---|---|
| Switch Ports | 24 |
| Number of Ports | 24-Ports |
| Port Type | 10/100/1000Base-T, 10G SFP+, SFP+, USB Console, Serial Console (RJ-45) |
| Port Speed | 10/100/1000Base-T,10G SFP+ |
| UpLink Ports | 4 x SFP+ (10GbE) |
| POE Support | No |
| Switching Capacity | 128 Gbps |
| Switch Forwarding Rate | 128 Gbps / 250 Mpps (line-rate, 64-byte packets) |
| VLAN Support | Yes |
| Max VLANs Supported | 4094 |
| Stackable | No |
| Layer Support | Layer 3 |
| Connector Type | RJ-45,SFP+,USB Console,Serial Console (RJ-45) |
| Performance | |
|---|---|
| Latency | <= 2 µs (typical, 64-byte frames) |
| Jumbo Frame Support | Up To 9216 Bytes |
| Management and Configuration | |
|---|---|
| Routing Protocols | Static, VRRP |
| Remote Protocols | Yes |
| Management Interfaces | Web GUI, CLI (SSH), SNMPv1/2/3, REST API, HTTP/HTTPS |
| Security | 802.1X, RADIUS, MAC authentication, ACLs, SSH, SNMPv3 |
| Remote Management Protocol | SNMP, SSH, HTTPS, Telnet, REST |
| Routing Protocol | Static |
| Power & Cooling | |
|---|---|
| Fans | Side-to-Side Airflow |
| Physical Characteristics | |
|---|---|
| Weight | 5.00 |
| Operating Temperature | 0°C to 45°C (32°F to 113°F) |
| Miscellaneous | |
|---|---|
| Compliance Standards | WEEE, RoHS, CE, FCC, UL |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x |
| Product Description |
|---|
The HP Aruba 6100 Series switch is built for mid-sized enterprise networks needing reliable, high-performance connectivity. It’s commonly found in wiring closets and data centers where 1U rack-mounted equipment is preferred. Network administrators and IT teams benefit from its Layer 3 routing features, which enable smarter traffic management and segmentation. Key Features
This switch is typically deployed in corporate networks, branch offices, and enterprise edge environments. Its mix of Gigabit and 10Gbps ports lets organizations handle growing bandwidth demands without replacing hardware frequently. The side-to-side airflow design also helps maintain reliable operation in standard rack configurations. |
