| Product Overview |
|---|

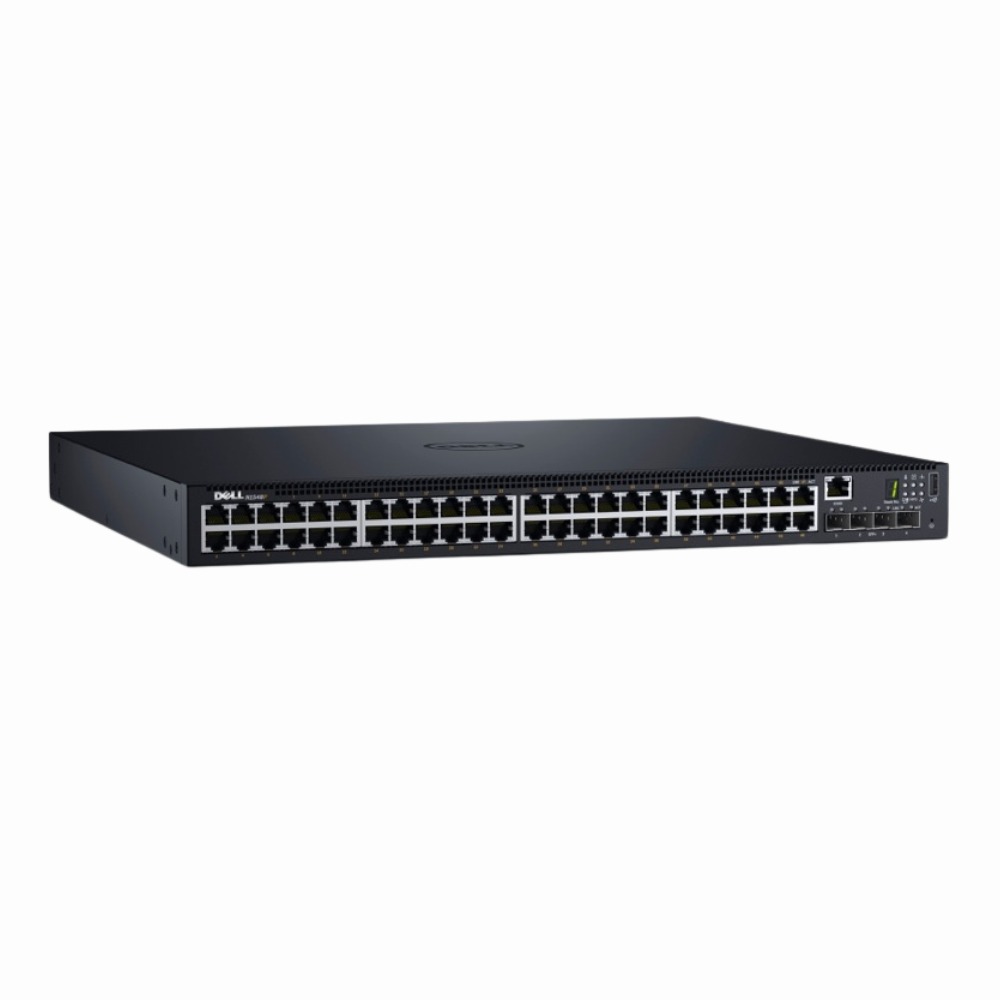

The HPC2V Dell PowerSwitch N1548 combines a high port count of Gigabit Ethernet connections with a handful of 10GbE uplink slots, fitting neatly into a 1U rack space. It’s a Layer 3 managed switch designed to meet the needs of medium to large business networks, balancing speed and flexibility without unnecessary complexity. |
| General Information | |
|---|---|
| Brand | Dell |
| Part Number | HPC2V |
| Condition | Refurbished |
| Technical Information | |
|---|---|
| Switch Ports | 48 |
| Number of Ports | 48-Ports |
| Port Type | 10/100/1000Base-T, 10G SFP+ |
| Port Speed | 10/100/1000 Mbps,10 Gbps |
| UpLink Ports | 4 |
| POE Support | No |
| Switching Capacity | 176 Gbps |
| Switch Forwarding Rate | 130.95 Mpps |
| DRAM | 512 MB |
| Flash Memory | 256 MB |
| VLAN Support | Yes |
| Max VLANs Supported | 1-4094 |
| Layer Support | Layer 3 |
| Connector Type | RJ-45,SFP+ |
| Performance | |
|---|---|
| Latency | <5 microseconds |
| Jumbo Frame Support | Up To 9216 Bytes |
| MAC Address Table Size | 16000 |
| Management and Configuration | |
|---|---|
| Routing Protocols | Static, RIP, OSPF, VRRP, IGMP |
| Remote Protocols | Yes |
| Management Interfaces | Web GUI (HTTPS), CLI (SSH/Telnet), SNMP v1/v2/v3, RMON, Serial Console (RJ-45), USB Console |
| Security Features | 802.1X, ACLs, Port Security, RADIUS, TACACS+, SSH, SSL, Storm Control, ARP Inspection, DHCP Snooping |
| Remote Management Protocol | SNMP, SSH, Telnet, HTTP/HTTPS, RMON |
| Routing Protocol | Static,RIP,OSPF,VRRP,IGMP |
| Physical Characteristics | |
|---|---|
| Dimensions | 1.73 x 17.32 x 16.93 in (44 x 440 x 430 mm) |
| Weight | 5.00 |
| Operating Temperature | 0°C to 40°C |
| Miscellaneous | |
|---|---|
| Eco Friendly | Yes |
| Compliance Standards | WEEE, RoHS, CE, FCC, UL, TUV, cULus |
| Compliant Standards | IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3z,IEEE 802.3ae,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1D,IEEE 802.1w,IEEE 802.1s,IEEE 802.1X,IEEE 802.3ad |
| Product Description |
|---|
The HPC2V Dell PowerSwitch N1548 is designed to provide reliable and scalable network connectivity in enterprise and data center environments. It combines a large number of Gigabit ports with high-speed 10GbE uplinks, making it suitable for handling demanding network traffic. Often found in medium to large networks, this switch supports advanced Layer 3 features like static routing and dynamic routing protocols, which help optimize network performance and management. It's built for IT professionals who need a flexible and robust solution to connect servers, storage, and end-user devices. Key Features
This switch is typically deployed in enterprise wiring closets, branch offices, and small data centers. It delivers consistent performance for high-bandwidth applications and supports network segmentation to enhance security and efficiency. Its combination of speed, manageability, and port density makes it a practical choice for growing IT infrastructures. |
