| Product Overview |
|---|

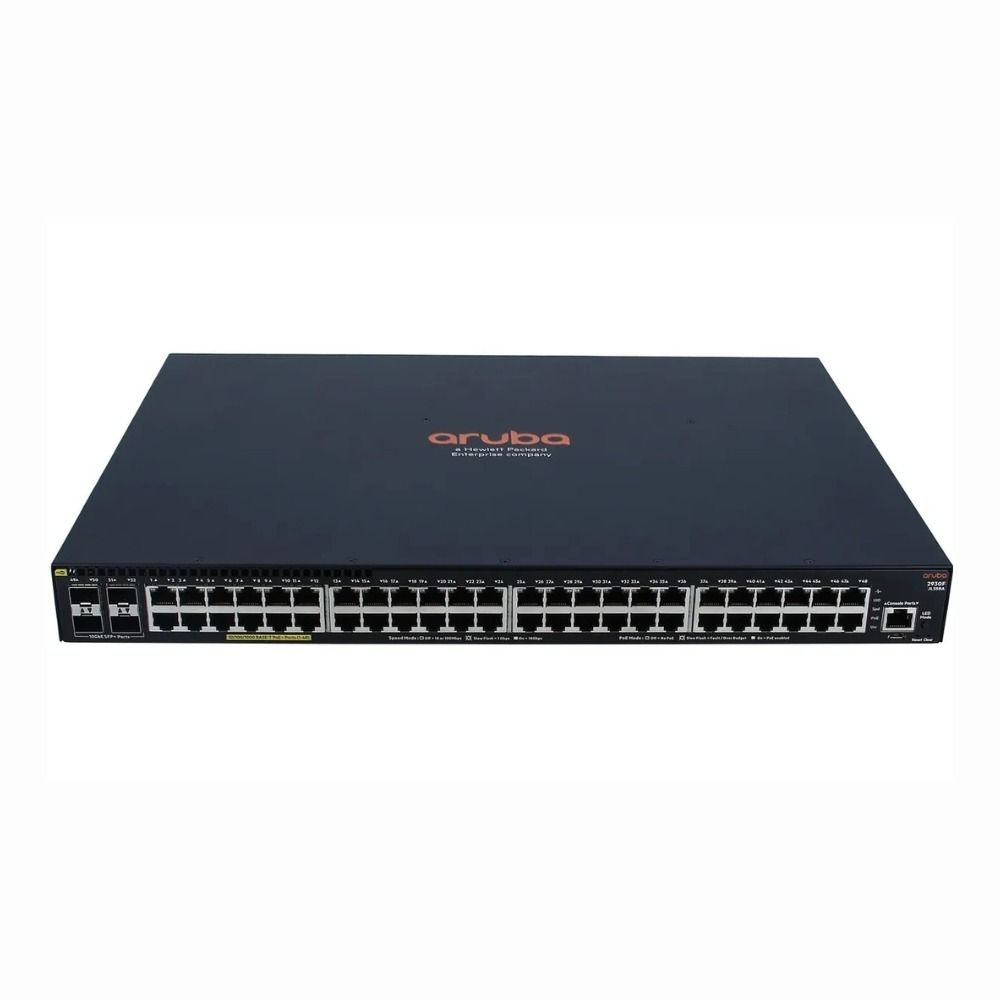

The HP Aruba 2930F Series 48G PoE+ switch offers 48 PoE-enabled Gigabit Ethernet ports and 4 SFP+ slots for uplinks, designed to manage data and power efficiently in business networks. It fits well into office or campus setups that require both high-speed connectivity and the ability to power devices directly, making network deployment cleaner and more streamlined. |
| General Information | |
|---|---|
| Brand | Aruba |
| Part Number | JL558A |
| Condition | Refurbished |
| Technical Information | |
|---|---|
| Switch Ports | 48 |
| Number of Ports | 48-Ports |
| Port Type | 10/100/1000Base-T, SFP+, USB Console, Serial Console (RJ-45) |
| Port Speed | 10/100/1000 Mbps (1 Gbps) |
| UpLink Ports | 4 x SFP+ (10 Gbps) |
| POE Support | PoE+ |
| Switching Capacity | 176 Gbps |
| Switch Forwarding Rate | 343.75 Mpps (theoretical, 64-byte packets) |
| DRAM | 512 MB |
| Flash Memory | 256 MB |
| VLAN Support | Yes |
| Max VLANs Supported | 1-4094 |
| Stackable | Yes |
| Layer Support | Layer 3 |
| Connector Type | RJ-45,SFP+ |
| Performance | |
|---|---|
| Jumbo Frame Support | Up To 9216 Bytes |
| MAC Address Table Size | 32,000 |
| Management and Configuration | |
|---|---|
| Routing Protocols | Static, RIP, VRRP, IGMP |
| Remote Protocols | Yes |
| Management Interfaces | Web GUI, CLI (SSH, Telnet), SNMP v1/v2/v3, RMON, REST API |
| Management Type | Web-based GUI, Command Line Interface (CLI) via Console/SSH, SNMP v1/v2c/v3, RMON, Aruba AirWave, Aruba Central |
| Security | Yes |
| Remote Management Protocol | SNMP,SSH,HTTPS,HTTP,Telnet,REST |
| Routing Protocol | Static,RIP |
| Power & Cooling | |
|---|---|
| Power | AC 100-240V; PoE budget 740W |
| Power Supply | Built-in 740W power supply (PoE budget) |
| Physical Characteristics | |
|---|---|
| Dimensions | 43.6 x 440 x 375 mm |
| Weight | 8.00 |
| Operating Temperature | 0°C to 45°C |
| Miscellaneous | |
|---|---|
| Compliance Standards | WEEE, RoHS, CE, FCC, cULus |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3at (PoE+), IEEE 802.1Q, IEEE 802.1p, IEEE 802.1X, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.3ad, IEEE 802.3az |
| Product Description |
|---|
The HP Aruba 2930F Series 48G PoE+ switch is built for reliable network connectivity in enterprise environments. It provides a mix of high-speed copper and fiber ports, making it suitable for various network setups. This switch is often found in office networks, data centers, and campus environments where both speed and power delivery to devices like IP phones, cameras, and access points are crucial. Network administrators and IT professionals benefit from its Layer 3 routing features, which simplify network management and improve overall efficiency. The integrated PoE+ functionality allows powering connected devices without the need for separate power adapters, streamlining installations. Key Features
This switch is typically deployed in medium to large office networks where a combination of high bandwidth and power over Ethernet is needed. It handles network traffic efficiently while powering devices directly through the network cable, reducing clutter and installation complexity. It's a practical choice for organizations needing dependable network infrastructure that supports both data and power delivery in one package. |
