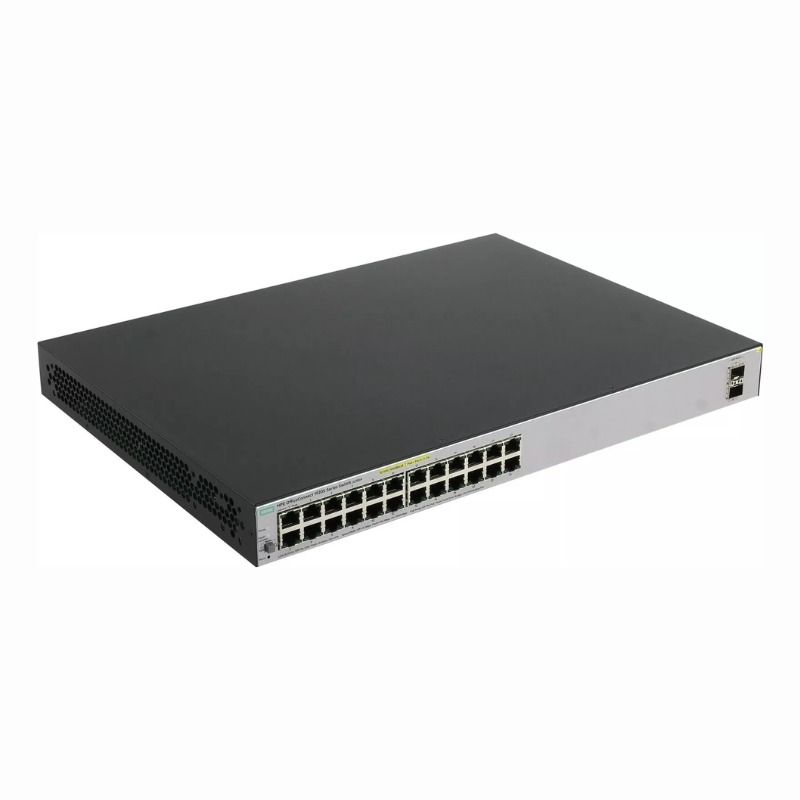

HP OfficeConnect 1920S 24G 2SFP PoE+ 12-Port PoE+ 10/100/1000Base-T + 12-Port 10/100/1000Base-T + 2x SFP Layer 3 Managed Rack-Mountable Gigabit Ethernet Network Switch

SKU:
JL385A
Weight: 3.00 lbs
Condition: Refurbished
  • 24 Gigabit Ethernet ports with PoE+ support on 12 ports
  • 2 SFP slots for fiber uplink flexibility
  • Layer 3 managed switch with advanced routing features
  • Rack-mountable design suitable for business networks
In stock

$249.00

Product Overview

The HP OfficeConnect 1920S 24G 2SFP PoE+ switch combines gigabit connectivity with powered Ethernet ports, designed to support business networks with both data and power delivery needs. It fits well in office networks needing flexible, managed switching with fiber uplink options and routing capabilities.

General Information

Brand HP
Part Number JL385A
Condition Refurbished

Technical Information

Switch Ports 24
Number of Ports 24-Ports
Port Type 10/100/1000Base-T, SFP
Port Speed 10/100/1000Base-T
UpLink Ports 2 SFP
POE Support PoE+
Switching Capacity 52 Gbps
Switch Forwarding Rate 101.56 Mpps
DRAM 256 MB
Flash Memory 128 MB
VLAN Support Yes
Max VLANs Supported 4094
Stackable No
Layer Support Layer 3
Connector Type RJ-45,SFP

Performance

Jumbo Frame Support Up To 9216 Bytes
MAC Address Table Size 8000

Management and Configuration

Routing Protocols Static, RIP
Remote Protocols Yes
Management Interfaces Web GUI, Command Line (SSH), Serial Console (RJ-45), SNMP v1/v2/v3, HTTP/HTTPS, RMON
Remote Management Protocol SNMP, SSH, HTTPS, HTTP, RMON
Routing Protocol Static,RIP

Power & Cooling

Power 370 W (PoE budget)

Physical Characteristics

Dimensions 1.73 x 17.32 x 10.63 inches (44 x 440 x 270 mm)
Weight 3.00
Operating Temperature 0°C to 40°C (32°F to 104°F)

Miscellaneous

Compliance Standards WEEE, RoHS, CE, FCC, cULus
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1X, IEEE 802.3af, IEEE 802.3at


Product Description

This HP OfficeConnect 1920S switch provides reliable gigabit connectivity and power over Ethernet (PoE+) capabilities, ideal for small to medium business networks. It's commonly used to connect computers, IP phones, wireless access points, and other network devices while supplying power through the same cables.

Built for network administrators who need flexible management and advanced Layer 3 routing options, this switch simplifies traffic control and improves network efficiency.

Key Features

  • Supports up to 12 PoE+ ports delivering power to compatible devices
  • Includes 2 SFP slots to connect fiber uplinks or extend network reach
  • Provides Layer 3 static and RIP routing for better traffic management
  • Equipped with web and CLI management interfaces for easy configuration
  • Designed for rack mounting to integrate cleanly into server rooms or wiring closets

You’ll often find these switches deployed in office environments, branch locations, and meeting rooms where wired and powered connections are essential. Their combination of power delivery and routing makes them practical for deploying VoIP systems and wireless access points without extra power adapters.

This model balances performance and management features, making it a dependable choice for growing networks that require more than basic switching.


Use Cases

The HP OfficeConnect 1920S 24G 2SFP PoE+ switch is ideally deployed in SMB and branch office environments requiring flexible power and data delivery over a single infrastructure. It benefits network administrators managing medium-sized networks that demand reliable gigabit connectivity combined with advanced Layer 3 routing capabilities for segmented traffic management.

How It's Used:

  • Supporting IP telephony and wireless access points in enterprise branch offices with PoE+ power delivery to reduce cabling complexity.
  • Enabling fiber uplink connections in campus closets or wiring rooms to aggregate multiple gigabit Ethernet segments for efficient inter-building communication.
  • Facilitating VLAN segmentation and routing in multi-department SMB networks to improve security and traffic isolation.
  • Deploying in edge computing scenarios where local routing and power supply to IoT devices are required in manufacturing or retail locations.
  • Integrating into rack-mounted network setups in data centers providing power and data to access layer devices while managing routing for internal subnet traffic.

This switch enhances operational efficiency by consolidating power and data delivery, reducing infrastructure complexity while supporting scalable network segmentation and routing. Its managed features enable IT teams to optimize performance and security across diverse office and edge network deployments.
