| Product Overview |
|---|

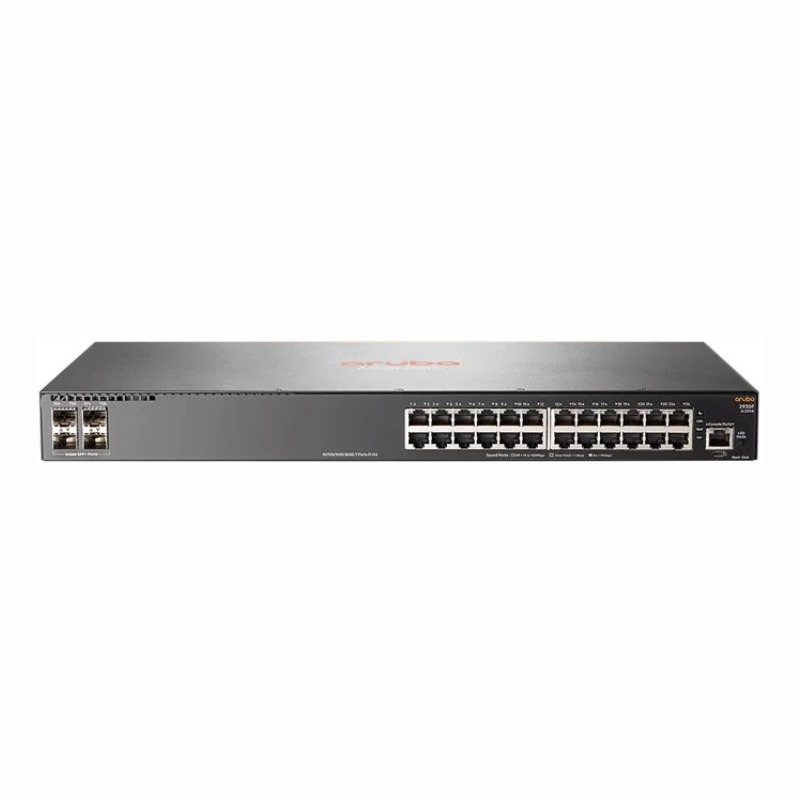

The HP Aruba 2930F Series 24G 4SFP switch offers a solid mix of gigabit Ethernet connectivity and Layer 3 capabilities, fitting well in business networks that need both performance and manageability. It's a dependable choice for IT teams looking to handle growing data traffic with a switch that balances copper and fiber connections efficiently. |
| General Information | |
|---|---|
| Brand | HP |
| Part Number | JL259A |
| Condition | Refurbished |
| Technical Information | |
|---|---|
| Switch Ports | 24 |
| Number of Ports | 24-Ports |
| Port Type | 10/100/1000Base-T, SFP, USB Console, Serial Console (RJ-45) |
| Port Speed | 10/100/1000Base-T |
| UpLink Ports | 4 SFP |
| POE Support | No |
| Switching Capacity | 128 Gbps |
| Switch Forwarding Rate | 95.2 Mpps |
| DRAM | 512 MB |
| Flash Memory | 128 MB |
| VLAN Support | Yes |
| Max VLANs Supported | 1-4094 |
| Stackable | Yes |
| Layer Support | Layer 3 |
| Connector Type | RJ-45,SFP |
| Performance | |
|---|---|
| Latency | < 3 µs (typical wire-speed latency for 64-byte frames) |
| Jumbo Frame Support | Up To 9216 Bytes |
| MAC Address Table Size | 16,000 entries (approx. 16K MAC address table) |
| Management and Configuration | |
|---|---|
| Routing Protocols | Static, RIP, VRRP, IGMP |
| Remote Protocols | Yes |
| Management Interfaces | Web UI (HTTP/HTTPS), CLI (Console/SSH/Telnet), SNMP v1/v2c/v3, RMON, USB |
| Security Features | 802.1X, ACLs, MAC Authentication, DHCP Snooping, SSH, RADIUS, TACACS+, Storm Control, Port Security |
| Management Type | Layer 3; CLI (SSH/telnet), Web GUI, SNMP v1/v2c/v3, RMON, REST (ARUBAOS-Switch APIs) |
| Remote Management Protocol | SNMPv1/v2c/v3,SSH,Telnet,HTTP,HTTPS,RMON |
| Routing Protocol | Static,RIP |
| Power & Cooling | |
|---|---|
| Fans | Fanless |
| Power | AC 100-240 V, 50/60 Hz; typical consumption ~15-25 W (non-PoE model), maximum ~35 W |
| Physical Characteristics | |
|---|---|
| Dimensions | 4.45 x 44.0 x 25.4 cm (1.75 x 17.32 x 10.0 in) |
| Weight | 6.10 |
| Operating Temperature | 0°C to 45°C |
| Miscellaneous | |
|---|---|
| Eco Friendly | Yes |
| Compliance Standards | WEEE, RoHS, CE, FCC, UL |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1D, IEEE 802.1w |
| Product Description |
|---|
The HP Aruba 2930F Series switch is built to deliver efficient and scalable network connectivity for small to medium-sized business environments. It is often found in office networks and branch setups where reliable wired connections and manageable routing are essential. Engineered for IT professionals and network administrators, this switch offers both simplicity and flexibility to support growing network demands. Its combination of RJ-45 ports and SFP slots allows for versatile deployment in mixed copper and fiber infrastructures. Key Features
This switch is typically deployed in enterprise access layers or aggregation points where both speed and routing flexibility are required. It helps maintain network stability and streamlines management in dynamic environments. |
