Product Overview |
|---|

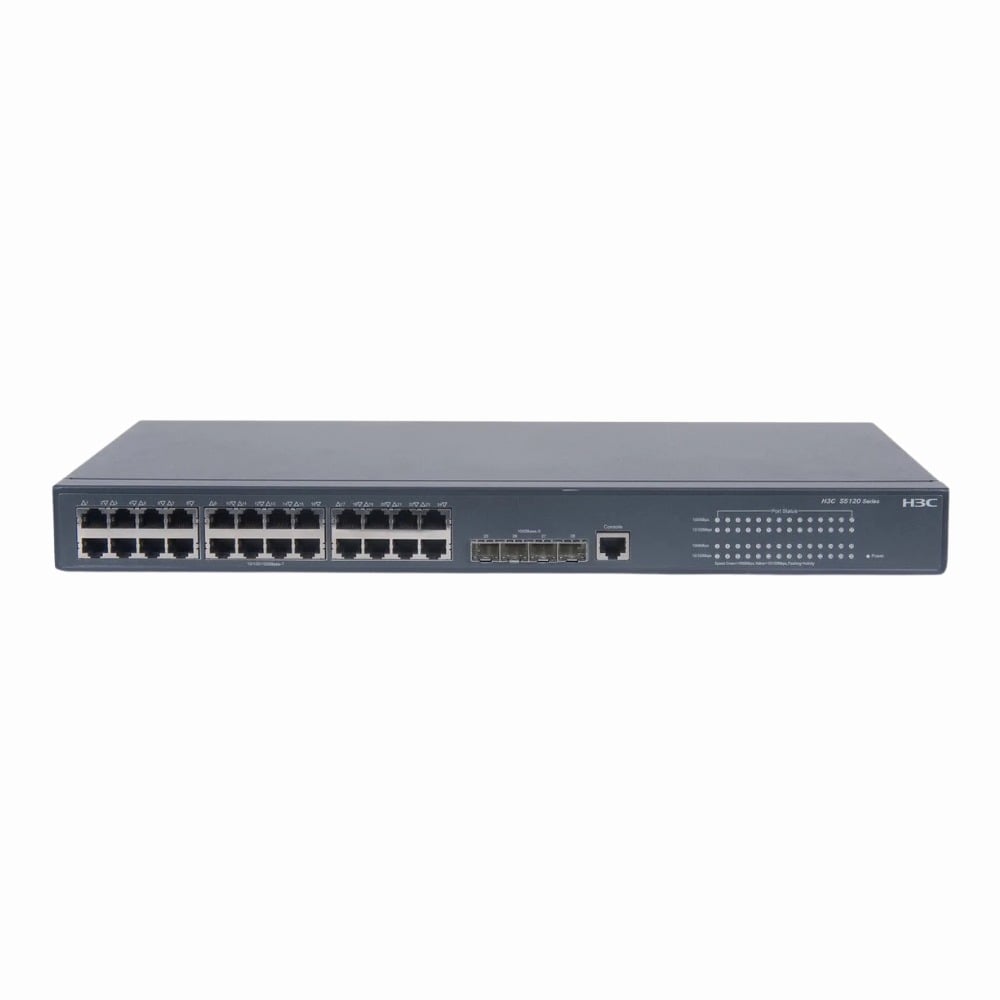

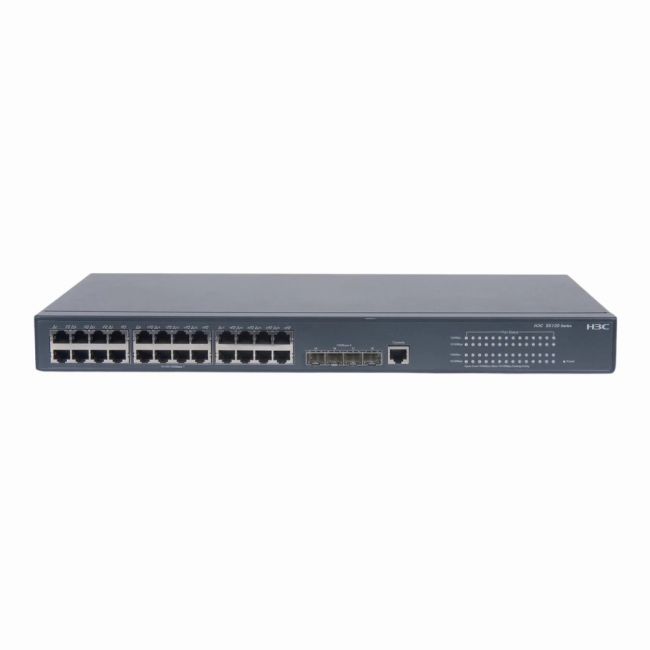

The HP A5120-24G-PoE+ switch combines 24 Gigabit PoE+ ports with 4 SFP slots to serve business networks requiring both data connectivity and device power. It's often used in office or campus settings where reliable network performance and flexible uplink options are essential. This managed switch provides Layer 4 capabilities that help manage traffic and security, fitting neatly into a standard 1U rack space in data closets or server rooms. |
General Information |
|
|---|---|
| Brand | HP |
| Part Number | JG092A |
| Condition | Refurbished |
Technical Information |
|
|---|---|
| Switch Ports | 24 |
| Number of Ports | 24-Ports |
| Port Type | 10/100/1000Base-T, RJ-45, SFP |
| Port Speed | 10/100/1000Base-T |
| UpLink Ports | 4 |
| POE Support | PoE+ |
| Switching Capacity | 56 Gbps |
| Switch Forwarding Rate | 41.7 Mpps |
| DRAM | 256 MB |
| Flash Memory | 64 MB |
| VLAN Support | Yes |
| Max VLANs Supported | 1-4094 |
| Stackable | No |
| Layer Support | Layer 4 |
| Connector Type | RJ-45,SFP (mini-GBIC) |
Performance |
|
|---|---|
| Jumbo Frame Support | Up To 9216 Bytes |
| MAC Address Table Size | 8192 |
Management and Configuration |
|
|---|---|
| Routing Protocols | Static, RIP |
| Remote Protocols | Yes |
| Management Interfaces | Web GUI (HTTP/HTTPS), CLI (Console/SSH/Telnet), SNMP, RMON |
| Security Features | ACLs, 802.1X authentication, Port security, DHCP Snooping, ARP Inspection, IP Source Guard, Storm control, BPDU Guard |
| Security | 802.1X |
| Remote Management Protocol | SNMPv1/v2c/v3, SSH, Telnet, HTTP, HTTPS, RMON |
| Routing Protocol | Static,RIP |
Power & Cooling |
|
|---|---|
| Fans | 2 |
| Power | 370W PoE budget, AC 100-240V |
Physical Characteristics |
|
|---|---|
| Weight | 3.00 |
| Operating Temperature | 0°C to 45°C |
Miscellaneous |
|
|---|---|
| Compliance Standards | RoHS, CE, FCC, UL |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1X, IEEE 802.3ad |
Product Description |
|---|
The HP A5120-24G-PoE+ switch is built to connect and power various network devices such as IP phones, wireless access points, and security cameras. Its combination of 24 Gigabit PoE+ ports and 4 SFP uplink ports makes it ideal for mid-sized networks that require both high-speed connectivity and power over Ethernet. Often found in enterprise branch offices, campus networks, and small data centers, this switch provides network administrators with robust Layer 4 management capabilities. These features allow better control over traffic flows, prioritization, and network security policies to ensure smooth operations. Key Features
This switch is typically deployed in environments where both data and power need to be delivered over a single infrastructure, such as office networks with VoIP phones or wireless access points. It helps reduce clutter and installation time by eliminating separate power supplies for connected devices. In practice, it plays a key role in maintaining reliable and efficient connectivity while giving IT teams the tools to manage bandwidth and security effectively. |
Use Cases |
|---|
The JG092A HP 24-Port PoE+ Switch is ideal for business environments requiring robust network connectivity combined with device power delivery. It suits medium-sized enterprise networks, campus infrastructures, and branch offices that demand efficient traffic management and flexible fiber uplink options for scalability and reliability. How It's Used:
This switch enhances operational efficiency by consolidating power and data delivery, while its Layer 4 management capabilities enable precise traffic handling and security enforcement. The rack-mountable form factor ensures easy integration into existing network racks, supporting scalable deployments and future network growth. |
