| Product Overview |
|---|

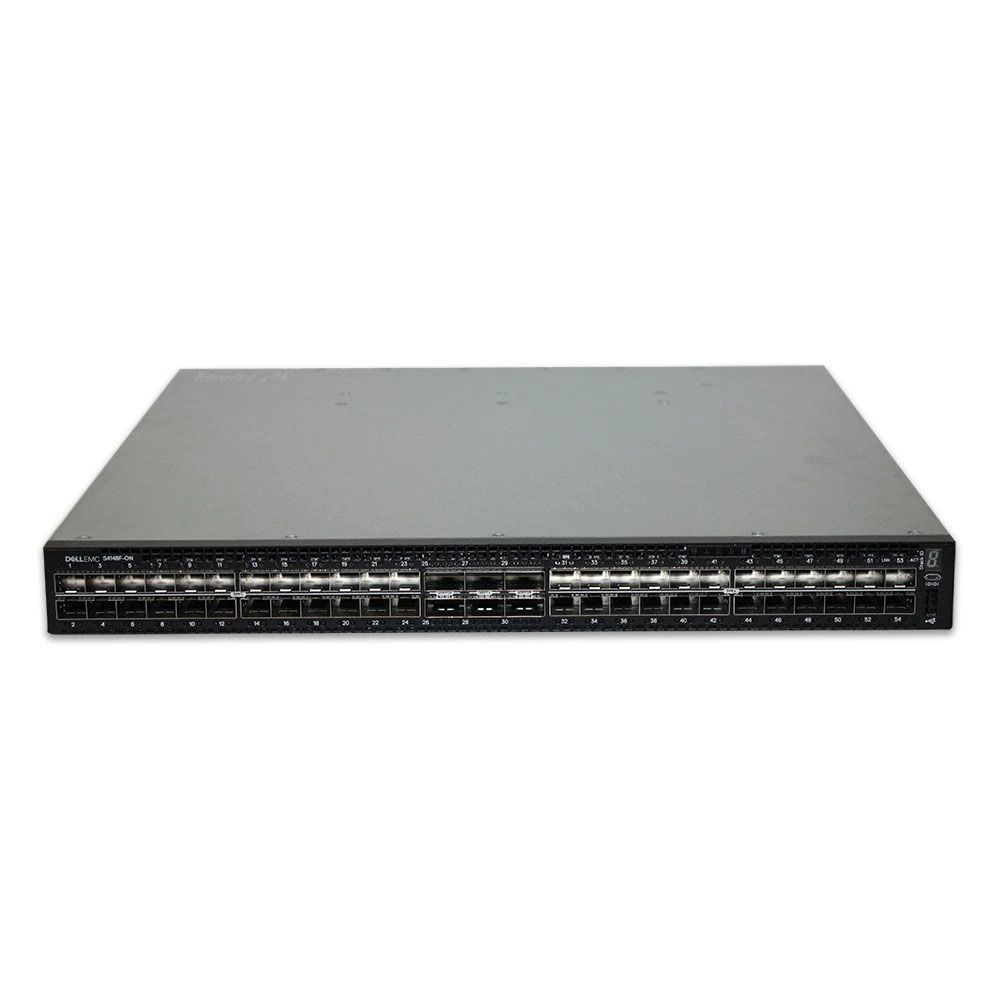

The Dell S4148F-ON delivers a powerful combination of port density and speed, designed for modern network infrastructures. It fits well in data centers that require a mix of 10Gbps, 40Gbps, and 100Gbps connections to meet diverse networking demands without adding complexity. |
| General Information | |
|---|---|
| Brand | Dell |
| Part Number | HF9GR |
| Condition | Refurbished |
| Technical Information | |
|---|---|
| Switch Ports | 48 x 10G SFP+ |
| Number of Ports | 48-Ports |
| Port Type | 40G QSFP+, 100G QSFP28, SFP+, USB Console, Serial Console (RJ-45) |
| Port Speed | 10 Gbps,40 Gbps,100 Gbps |
| UpLink Ports | 4 x 100G QSFP28, 2 x 40G QSFP+ (6 total uplink ports) |
| POE Support | No |
| Switching Capacity | 1.92 Tbps |
| VLAN Support | Yes |
| Max VLANs Supported | 1-4094 |
| Stackable | No |
| Layer Support | Layer 3 |
| Connector Type | SFP+,QSFP28,QSFP+ |
| Performance | |
|---|---|
| Jumbo Frame Support | Up To 9216 Bytes |
| Management and Configuration | |
|---|---|
| Routing Protocols | Static, RIP, OSPF, OSPFv3, BGP, VRRP, PIM-SM, IGMP |
| Remote Protocols | Yes |
| Management Interfaces | CLI,Web GUI,SNMP,SSH,Serial Console,USB Console |
| Security Features | ACLs,802.1X,RADIUS,TACACS+,SSH,SNMPv3,DHCP Snooping,IP Source Guard,Port Security |
| Security | Yes |
| Remote Management Protocol | SSH,Telnet,SNMPv2,SNMPv3,HTTP/HTTPS |
| Power & Cooling | |
|---|---|
| Fans | 4 (redundant, hot-swappable, variable-speed) |
| Physical Characteristics | |
|---|---|
| Dimensions | 1.72 x 17.32 x 20.51 in |
| Weight | 5.00 |
| Operating Temperature | 0°C to 40°C |
| Miscellaneous | |
|---|---|
| Eco Friendly | Yes |
| Compliance Standards | WEEE, RoHS, CE, FCC, UL, TUV, cULus |
| Product Description |
|---|
The Dell S4148F-ON network switch offers a robust solution for environments demanding high bandwidth and low latency. It’s commonly used in data centers and enterprise networks where fast, reliable connections are essential. Built for network administrators and IT professionals, this switch supports a range of speeds to accommodate various traffic loads and application needs. Key Features
This switch is often found in large-scale switching environments where multiple high-speed connections are a must. Its mix of port speeds allows for a versatile deployment, handling everything from server access to core network aggregation. This makes it a practical choice for organizations aiming to balance performance with flexibility. |
