| Product Overview |
|---|

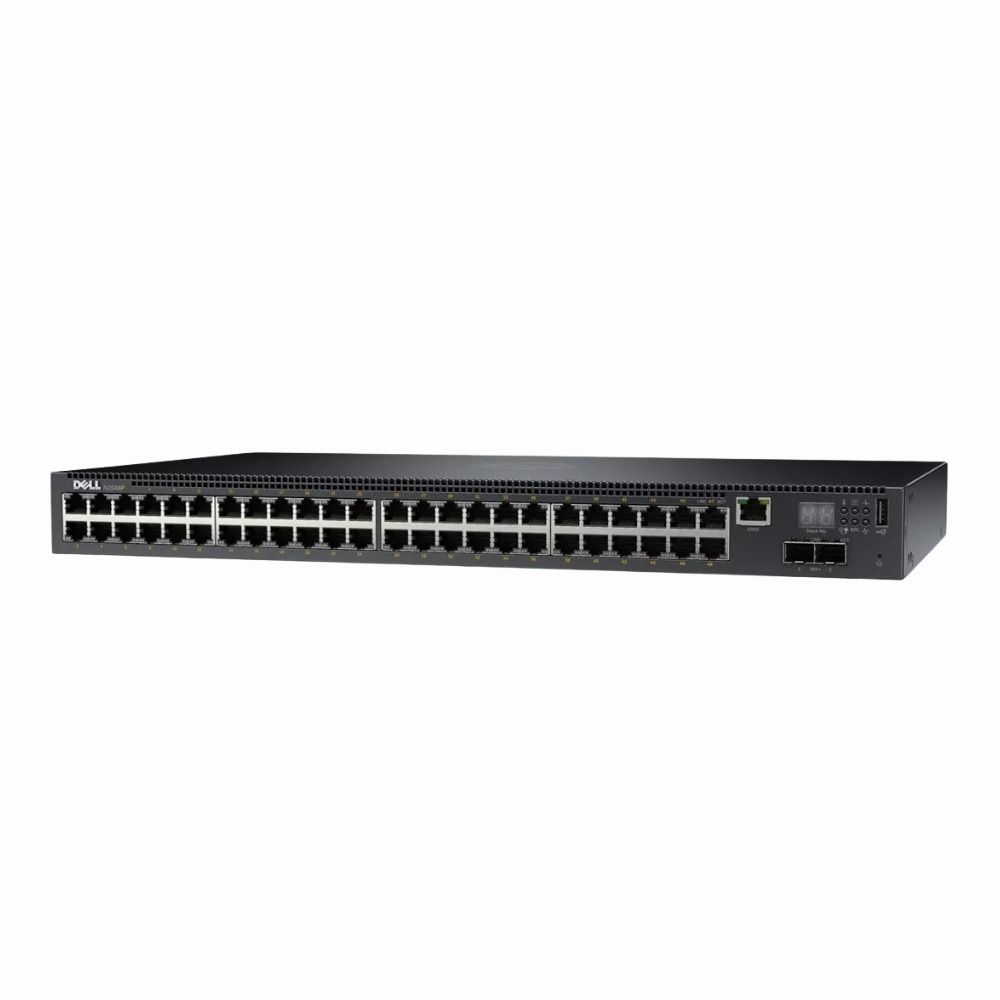

The H3MDW Dell Networking N2000 Series N2048P is a managed Layer 3 switch offering 48 PoE+ Ethernet ports and two high-speed SFP+ uplinks. It fits into a 1U rack space and is designed to handle medium to large network environments, combining power delivery and advanced routing in a compact, reliable package. |
| General Information | |
|---|---|
| Brand | Dell |
| Part Number | H3MDW |
| Condition | Refurbished |
| Technical Information | |
|---|---|
| Switch Ports | 48 |
| Number of Ports | 48-Ports |
| Port Type | 10/100/1000Base-T, 10G SFP+ |
| Port Speed | 10/100/1000Base-T |
| UpLink Ports | 2 |
| POE Support | PoE+ |
| Switching Capacity | 176 Gbps |
| Switch Forwarding Rate | 130.95 Mpps |
| DRAM | 256 MB |
| Flash Memory | 128 MB |
| VLAN Support | Yes |
| Max VLANs Supported | 1-4094 |
| Layer Support | Layer 3 |
| Connector Type | RJ-45,SFP+ |
| Performance | |
|---|---|
| Jumbo Frame Support | Up To 9216 Bytes |
| MAC Address Table Size | 32K |
| Management and Configuration | |
|---|---|
| Routing Protocols | Static, RIP, OSPF, VRRP, IGMP |
| Remote Protocols | Yes |
| Management Interfaces | CLI,Web GUI,Serial Console (RJ-45),SSH,Telnet,SNMPv1/v2/v3,RMON |
| Security Features | Access Control Lists (ACLs), 802.1X port-based authentication, Port security, MAC authentication, DHCP snooping, Storm control, IP Source Guard |
| Remote Management Protocol | SNMP,SSH,Telnet,HTTP,HTTPS |
| Routing Protocol | Static,RIP,OSPF,VRRP |
| Power & Cooling | |
|---|---|
| Fans | 2 (hot-swappable, redundant, variable speed) |
| Physical Characteristics | |
|---|---|
| Dimensions | 1.72 x 17.32 x 17.64 in |
| Weight | 5.00 |
| Operating Temperature | 0°C to 40°C |
| Miscellaneous | |
|---|---|
| Compliance Standards | RoHS, CE, FCC, cULus |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1D, IEEE 802.1w, IEEE 802.3ad (LACP), IEEE 802.1X, IEEE 802.3at, IEEE 802.3af |
| Product Description |
|---|
The H3MDW Dell Networking N2000 Series N2048P is designed to deliver reliable and scalable network performance across enterprise environments. It supports Power over Ethernet Plus (PoE+) on all 48 RJ-45 ports, making it suitable for powering devices like IP phones, wireless access points, and surveillance cameras without additional cabling. Often found in medium to large networks, this switch is built for IT professionals who need robust Layer 3 features such as routing and traffic management. Its 1U rack-mountable form factor fits neatly into standard network racks, optimizing space while maintaining high throughput. Key Features
This switch is commonly deployed in corporate offices, campus networks, and data centers where reliable PoE and advanced networking features are essential. It plays a key role in connecting numerous devices, simplifying network management, and ensuring smooth data flow across various segments. |
