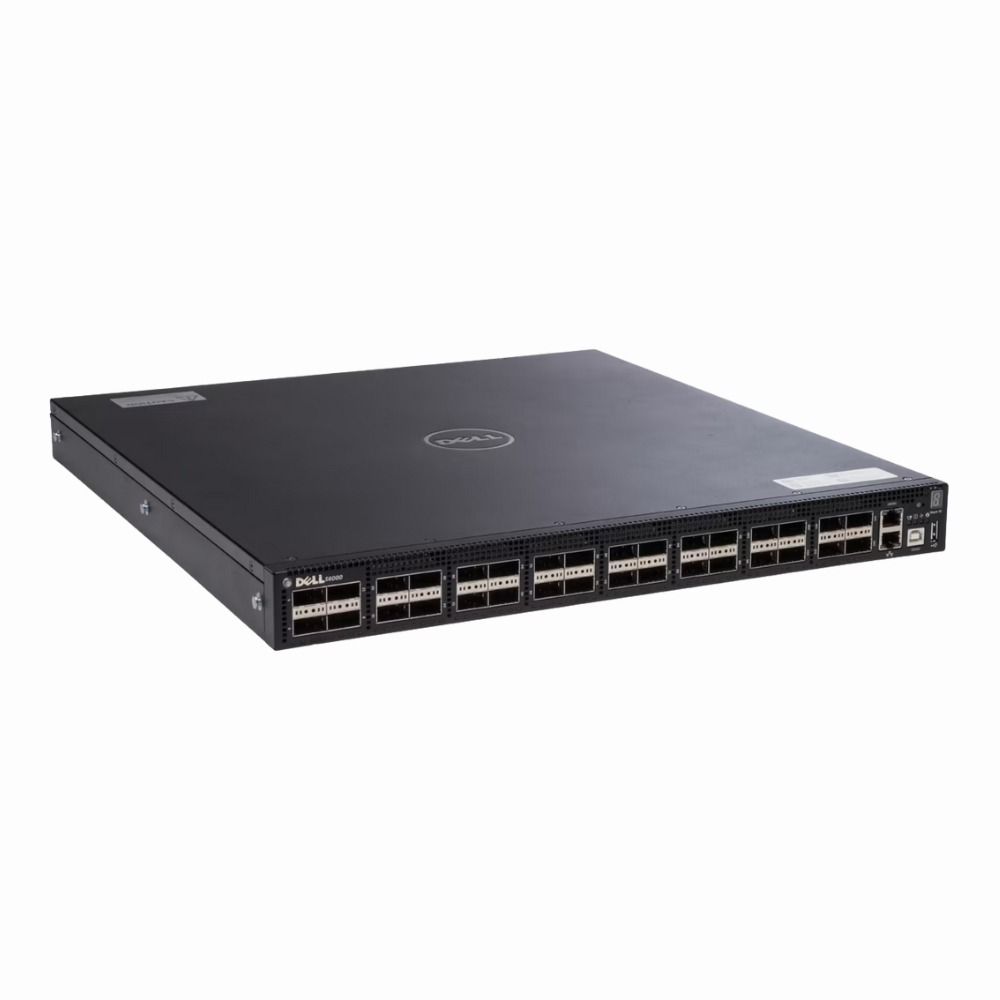

Name: GM8J7 Dell Networking S-Series S6000-ON 32 x QSFP+ Ports 40GBase-X Layer 3 Managed Rack-mountable Gigabit Ethernet Network Switch
Brand: Dell
SKU: GM8J7
Price: 419.00 USD
Availability: InStock
Rating: 4.8 (130 reviews)

Product Overview
The Dell Networking S-Series S6000-ON is a 1U rack-mount switch designed to provide dense 40GbE connectivity with 32 QSFP+ ports. It fits into core or aggregation layers of data center networks, delivering Layer 3 management features to handle routing and traffic efficiently without adding unnecessary complexity.

General Information
Brand	Dell
Part Number	GM8J7
Condition	Refurbished

Technical Information
Switch Ports	32
Number of Ports	32-Ports
Port Type	40G QSFP+
Port Speed	40Gbps (40GBase-X)
UpLink Ports	32 x QSFP+ (40GbE)
POE Support	No
Switching Capacity	2.56 Tbps
Switch Forwarding Rate	1,904,761,904 pps (approx. 1,904.76 Mpps)
VLAN Support	Yes
Max VLANs Supported	1-4094
Stackable	No
Layer Support	Layer 3
Connector Type	QSFP+

Performance
Jumbo Frame Support	Up To 9216 Bytes

Management and Configuration
Routing Protocols	Static, RIP, OSPF, OSPFv3, BGP, VRRP, PIM-SM, IGMP
Remote Protocols	Yes
Security Features	ACLs, 802.1X authentication, RADIUS, TACACS+, DHCP Snooping, ARP Inspection, Storm Control, Port Security
Security	Yes
Remote Management Protocol	SSH, SNMPv1/v2/v3, Telnet, RMON, HTTP/HTTPS
Routing Protocol	Static,RIP,OSPF,OSPFv3,BGP,VRRP,PIM-SM,IGMP

Power & Cooling
Fans	Hot-swappable cooling fans (front-to-back)

Physical Characteristics
Dimensions	1.72 x 17.24 x 17.20 inches
Weight	5.00
Operating Temperature	0°C to 40°C

Miscellaneous
Compliance Standards	WEEE, RoHS, CE, FCC, UL, TUV
Compliant Standards	IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ae (40GbE), IEEE 802.3ad (LACP), IEEE 802.3x

Product Description
This Dell Networking S-Series S6000-ON switch delivers high-performance 40Gbps connectivity through 32 QSFP+ ports, making it ideal for data centers and enterprise core networks. It's commonly used to aggregate large amounts of traffic and supports advanced Layer 3 routing features for efficient network management. Often found in environments that require dense 40GbE connections, the S6000-ON is built for network administrators and IT teams managing complex, high-throughput infrastructures. It ensures smooth data flow and scalability in demanding setups. Key Features Provides 32 high-speed 40Gbps QSFP+ ports for ample bandwidth Includes robust Layer 3 switching for routing between subnets Designed for 1U rack mounting, saving space in server racks Supports a variety of network protocols to fit diverse environments Offers low latency and high throughput for performance-sensitive tasks This switch is typically deployed in data centers, cloud environments, and enterprise networks where reliable, high-speed aggregation is essential. Its capabilities help maintain efficient network traffic and support growth without frequent hardware changes.

Use Cases
The Dell Networking S-Series S6000-ON switch is primarily deployed in high-performance data center settings where dense 40Gbps connectivity is essential. Network architects and IT teams managing core and aggregation layers benefit from its robust Layer 3 routing capabilities and compact rack-mount form factor. How It's Used: Connecting hyper-scale virtualization environments requiring high throughput and low latency for east-west traffic in data centers. Serving as an aggregation switch in enterprise campus networks to efficiently route multi-gigabit traffic between distribution and core layers. Supporting high-density 40G connectivity for storage area networks (SANs) in large-scale storage clusters. Implementing high-capacity interconnects in cloud service provider infrastructures where scalability and performance are critical. Facilitating edge computing deployments that demand compact, rack-mountable switches with advanced Layer 3 features. By delivering high-density 40G ports combined with advanced routing, this switch enhances network scalability and operational efficiency in demanding environments. It enables IT teams to streamline traffic flow and maintain performance as workloads and data center complexity grow.
