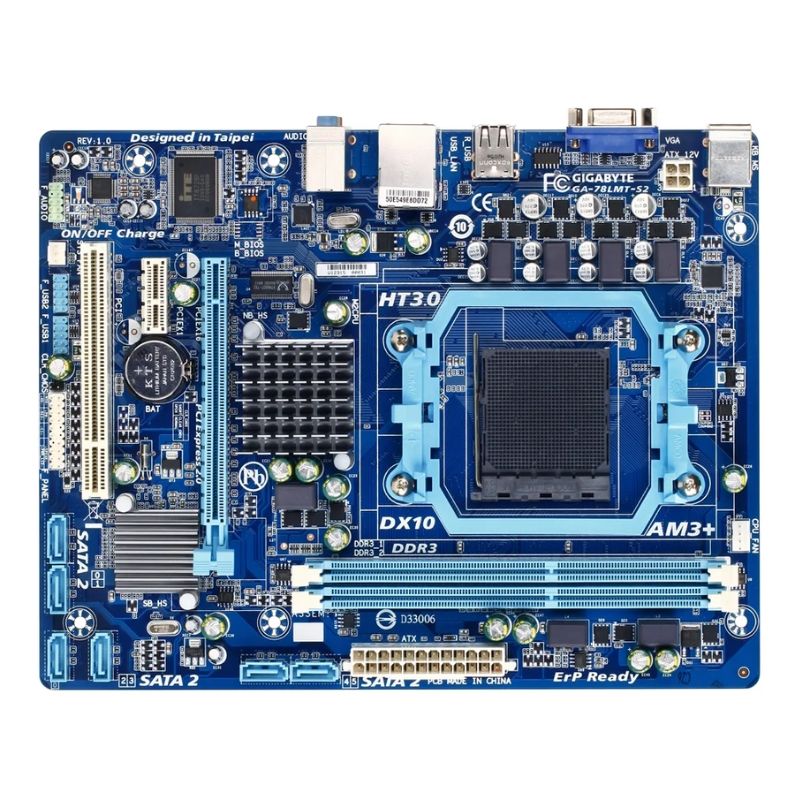

GA-78LMT-S2

The GIGABYTE GA-78LMT-S2 Ultra Durable Motherboard is designed to deliver stable performance and reliable features for users looking to build a system with AMD processors. This motherboard supports AMD AM3+ FX, AM3 Phenom™ II, and Athlon™ II series processors, offering flexibility for various CPU configurations. With a chipset combination of AMD 760G + SB710, it provides excellent performance and robust capabilities for both general computing and gaming.

The GA-78LMT-S2 supports up to 16 GB of DDR3 memory through 2 DIMM slots, with support for DDR3 1333+ (O.C.)/1066 MHz memory modules. Integrated ATI Radeon HD 3000 graphics allow for DirectX 10 support, perfect for basic graphical needs. Expansion options include one PCI Express x16 slot, one PCI Express x1 slot, and one PCI slot, giving flexibility for additional devices and graphics cards.

With 6 SATA 3Gb/s connectors, this motherboard supports RAID 0, RAID 1, RAID 10, and JBOD configurations, ensuring fast and secure data storage. It also offers up to 8 USB 2.0/1.1 ports for enhanced connectivity, with both rear panel and internal USB headers available.

Key Features

• Compatible with AMD AM3+ FX, AM3 Phenom™ II & Athlon™ II series processors
• Up to 16 GB DDR3 memory support with DDR3 1333+ (O.C.)/1066 MHz modules
• Integrated ATI Radeon HD 3000 graphics (DirectX 10)
• 1 x PCI Express x16, 1 x PCI Express x1, and 1 x PCI slot for expansion
• 6 SATA 3Gb/s connectors supporting RAID configurations (RAID 0, 1, 10, JBOD)
• Realtek ALC887 codec for high-definition 2/4/5.1-channel audio
• Realtek GbE LAN chip (10/100/1000 Mbit) for reliable networking
• 8 USB 2.0/1.1 ports (4 rear, 4 internal headers)
