| Product Overview |
|---|

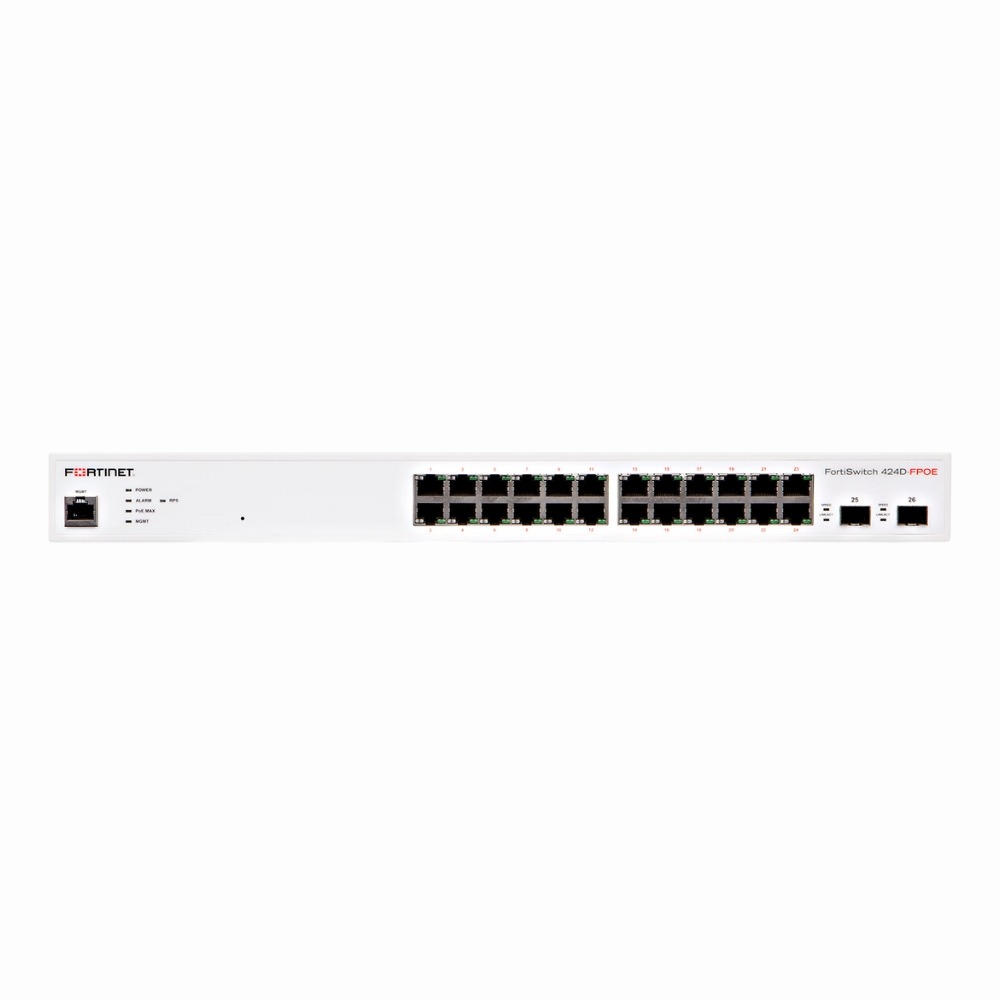

The FS-424D-POE Fortinet FortiSwitch combines 24 PoE-enabled Gigabit ports with 10GbE SFP+ uplinks, offering a balance of power delivery and high-speed connectivity. It’s designed to fit into a 1U rack space, making it suitable for enterprise and campus environments that need managed Layer 3 switching without occupying much room. This switch fits in as a core or access layer device, helping networks handle both data and power needs efficiently. |
| General Information | |
|---|---|
| Brand | Fortinet |
| Part Number | FS-424D-POE |
| Condition | Refurbished |
| Technical Information | |
|---|---|
| Switch Ports | 24 |
| Number of Ports | 24-Ports |
| Port Type | 10/100/1000Base-T, 10G SFP+, RJ-45, USB Console, Serial Console (RJ-45) |
| Port Speed | 1 Gbps,10 Gbps |
| UpLink Ports | 2 x 10G SFP+ |
| POE Support | PoE+ |
| Switching Capacity | 88 Gbps |
| VLAN Support | Yes |
| Max VLANs Supported | 1-4094 |
| Layer Support | Layer 3 |
| Connector Type | RJ-45,SFP+,USB Console,Serial Console (RJ-45) |
| Performance | |
|---|---|
| Jumbo Frame Support | Up To 9216 Bytes |
| MAC Address Table Size | 16000 |
| Management and Configuration | |
|---|---|
| Routing Protocols | Static, RIP, RIPng, OSPF, OSPFv3, EIGRP, BGP, IS-IS, VRRP, HSRP, GLBP, PIM-SM, PIM-DM, IGMP, MLD, Policy-Based Routing (PBR), Route Maps |
| Remote Protocols | Yes |
| Management Interfaces | Web GUI (HTTPS),CLI (SSH),Console (RJ-45),SNMP v1/v2c/v3,FortiLink |
| Remote Management Protocol | HTTPS,SSH,SNMP (v1/v2c/v3),FortiLink |
| Routing Protocol | Static,RIP,OSPF,OSPFv3,BGP,VRRP,IGMP,PIM-SM |
| Power & Cooling | |
|---|---|
| Power | PoE Budget: 370W (typical); Max Power Draw: up to 550W (including PoE) |
| Physical Characteristics | |
|---|---|
| Dimensions | 1.73 x 17.32 x 11.02 in (44 x 440 x 280 mm) |
| Weight | 4.00 |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Miscellaneous | |
|---|---|
| Eco Friendly | Yes |
| Compliance Standards | WEEE, RoHS, CE, FCC, UL, TUV, cULus |
| Compliant Standards | IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3x,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1D,IEEE 802.1w,IEEE 802.1X |
| Product Description |
|---|
The Fortinet FortiSwitch 424D-PoE is built for robust network environments that require both high-speed data transfer and power over Ethernet. It efficiently combines 24 Gigabit Ethernet ports with PoE to power devices like IP cameras, phones, and access points directly from the switch. Often found in enterprise networks and data centers, this switch supports advanced Layer 3 features that help manage traffic and improve performance. Network administrators benefit from its flexibility and management tools to maintain reliable and secure connections. Key Features
This switch is typically deployed in office networks, campus infrastructures, and branch setups where power and data integration simplify installations. It plays a key role in reducing clutter by powering devices directly and supporting network segmentation through routing. |
