| Product Overview |
|---|

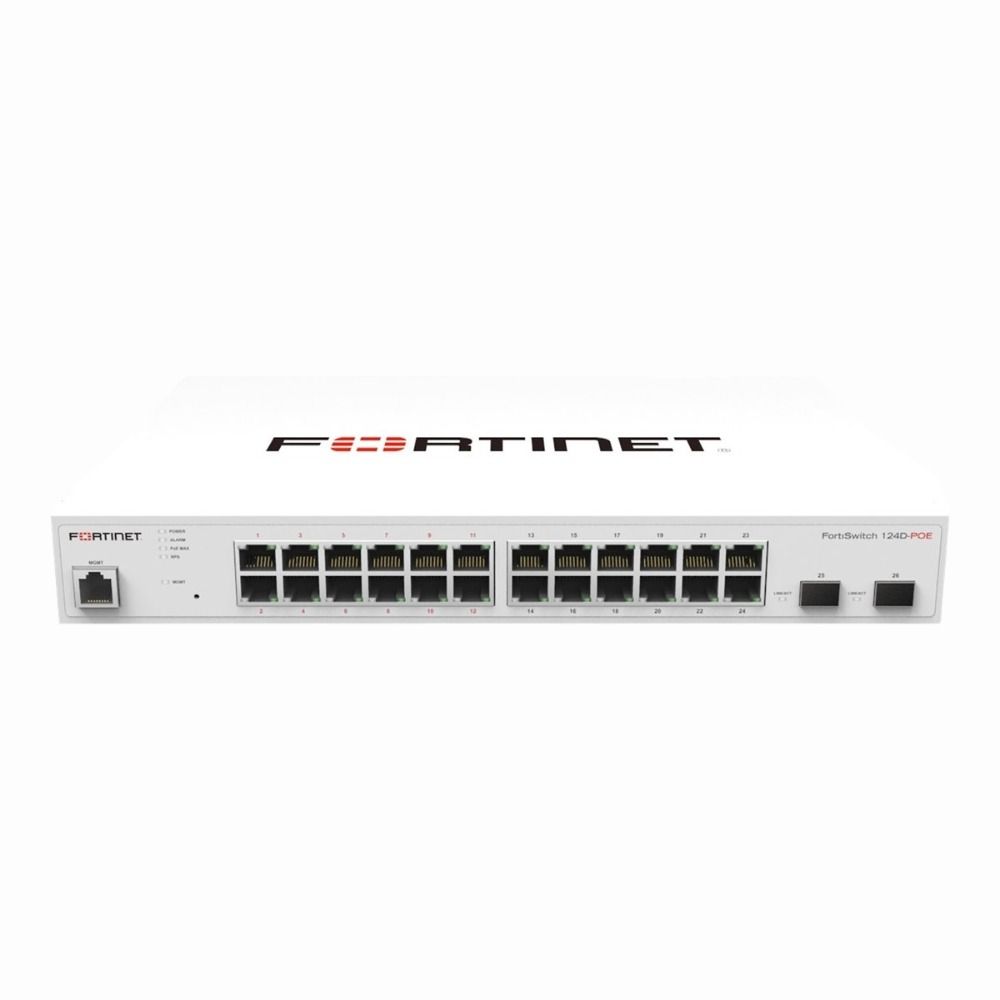

The Fortinet FortiSwitch 124D-PoE-NFR provides a balanced network solution combining PoE and non-PoE Gigabit ports with fiber uplink capabilities. It fits well into mid-sized network setups, delivering power and data efficiently to various devices and supporting centralized network management at the Layer 2 level. |
| General Information | |
|---|---|
| Brand | Fortinet |
| Part Number | FS-124D-POE-NFR |
| Condition | Refurbished |
| Technical Information | |
|---|---|
| Switch Ports | 24 |
| Number of Ports | 12-Ports |
| Port Type | 10/100/1000Base-T, 1000Base-X, RJ-45, SFP, USB Console, Serial Console (RJ-45) |
| Port Speed | 10/100/1000 Mbps |
| UpLink Ports | 2 x SFP (1G) |
| POE Support | PoE+ |
| Switching Capacity | 52 Gbps |
| Switch Forwarding Rate | 101.56 Mpps |
| DRAM | 256 MB |
| Flash Memory | 16 MB |
| VLAN Support | Yes |
| Max VLANs Supported | 4094 |
| Stackable | No |
| Layer Support | Layer 2 |
| Connector Type | RJ-45,SFP,Serial Console (RJ-45),USB Console |
| Performance | |
|---|---|
| Jumbo Frame Support | Up To 9216 Bytes |
| Management and Configuration | |
|---|---|
| Remote Protocols | Yes |
| Management Interfaces | Web GUI (HTTPS), CLI (SSH, Console), SNMP, FortiLink |
| Security Features | 802.1X, ACLs, DHCP Snooping, IP Source Guard, Storm Control, DoS Protection, MAC Limiting |
| Security | Yes |
| Remote Management Protocol | SSH,HTTPS,SNMP,FortiLink |
| Power & Cooling | |
|---|---|
| Power | 370 W PoE budget, AC input 100-240V |
| Physical Characteristics | |
|---|---|
| Weight | 4.00 |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Miscellaneous | |
|---|---|
| Compliance Standards | WEEE, RoHS, CE, FCC, cULus |
| Compliant Standards | IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1X,IEEE 802.3af,IEEE 802.3at,IEEE 802.3x |
| Product Description |
|---|
The Fortinet FortiSwitch 124D-PoE is built for managing mid-sized enterprise networks, providing reliable and flexible connectivity options. It is often found in office environments where diverse devices like IP phones, cameras, and access points require both power and data over a single cable. Network administrators value its mix of Power over Ethernet ports alongside standard Gigabit connections, allowing them to support a wide range of equipment without additional power adapters. Key Features
This switch is typically deployed in business networks that require reliable Ethernet infrastructure with flexible port options. It helps streamline network setups by reducing the need for multiple power sources and supports smooth communication between connected devices. The FortiSwitch 124D-PoE proves its worth in environments that demand consistent uptime and straightforward network expansion. |
