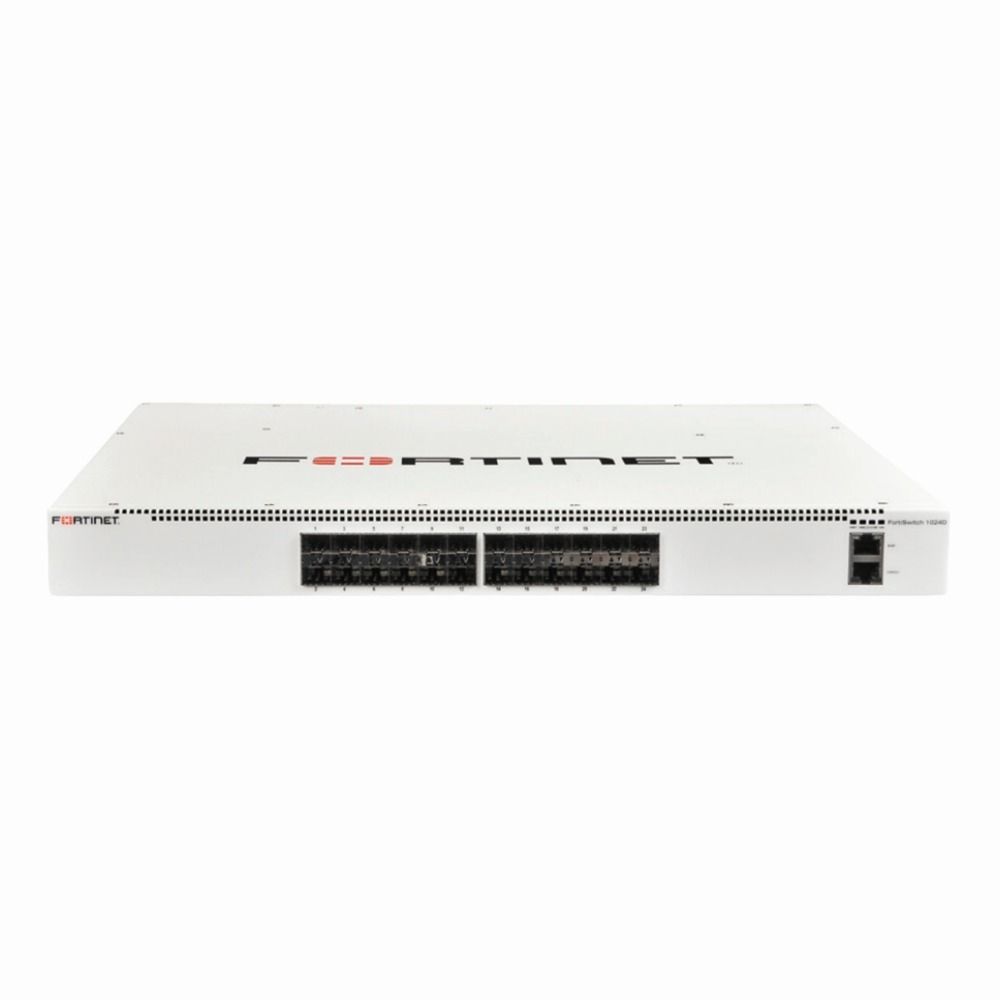

FS-1024D Fortinet FortiSwitch 1024D 24 x Ports 10GBase-X SFP+ Modular 1U Layer 3 Manageable Ethernet Switch
SKU:
FS-1024D
Weight: 4.00 lbs
Condition: Refurbished
- 24 x 10G SFP+ ports for high-speed connectivity
- Layer 3 features enabling advanced routing capabilities
- Modular design in a compact 1U form factor
- Managed Ethernet switch ideal for scalable network environments
In stock
$3,258.74
| Product Overview |
|---|
The FS-1024D Fortinet FortiSwitch 1024D is a manageable Ethernet switch that combines 24 high-speed 10G SFP+ ports with Layer 3 routing capabilities. It fits neatly into a 1U rack space and is built for environments where modularity and performance are critical, such as data centers or large enterprise networks. This switch balances speed and flexibility to support demanding network needs without unnecessary complexity. |
| General Information | |
|---|---|
| Brand | Fortinet |
| Part Number | FS-1024D |
| Condition | Refurbished |
| Technical Information | |
|---|---|
| Switch Ports | 24 |
| Number of Ports | 24-Ports |
| Port Type | RJ-45, SFP+, QSFP / QSFP+, USB Console, Serial Console (RJ-45) |
| Port Speed | 10GBase-X (SFP+) |
| UpLink Ports | 4 x 40G QSFP+ (modular uplink module) |
| POE Support | No |
| Switching Capacity | 480 Gbps |
| Switch Forwarding Rate | 714.28 Mpps |
| VLAN Support | Yes |
| Max VLANs Supported | 4094 |
| Layer Support | Layer 3 |
| Connector Type | SFP+,QSFP / QSFP+,RJ-45,USB Console,Serial Console (RJ-45) |
| Performance | |
|---|---|
| Jumbo Frame Support | Up To 9216 Bytes |
| MAC Address Table Size | 32,000 entries |
| Management and Configuration | |
|---|---|
| Routing Protocols | Static, OSPF, VRRP, IGMP |
| Remote Protocols | Yes |
| Management Interfaces | CLI (Console/SSH), Web GUI (HTTP/HTTPS), SNMP, FortiLink, REST API, Syslog |
| Security | Yes |
| Remote Management Protocol | HTTPS,HTTP,SSH,SNMP,REST API |
| Routing Protocol | Static, OSPF, VRRP |
| Power & Cooling | |
|---|---|
| Fans | Yes (front-to-back, hot-swappable) |
| Power | AC 100-240V, 50-60Hz, up to ~250W depending on configuration |
| Power Supply | Dual AC hot-swappable (redundant) |
| Physical Characteristics | |
|---|---|
| Dimensions | 1.73 x 17.32 x 15.75 in (44 x 440 x 400 mm) |
| Weight | 4.00 |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Miscellaneous | |
|---|---|
| Eco Friendly | Yes |
| Compliance Standards | RoHS, CE, FCC, UL, TUV, cULus |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.1X, IEEE 802.3ad, IEEE 802.3x |
| Product Description |
|---|
The Fortinet FortiSwitch 1024D is designed to provide robust and flexible network switching for enterprise environments. It is commonly found in data centers and high-performance network setups where reliable 10G connectivity is essential. Built for network administrators and IT teams managing complex infrastructures, this switch offers both high capacity and advanced management features. Key Features
This switch is typically deployed in environments that require stable and scalable switching solutions such as enterprise networks, data centers, and service providers. Its combination of speed and manageability helps maintain smooth operations even under heavy network traffic. |
