| Product Overview |
|---|

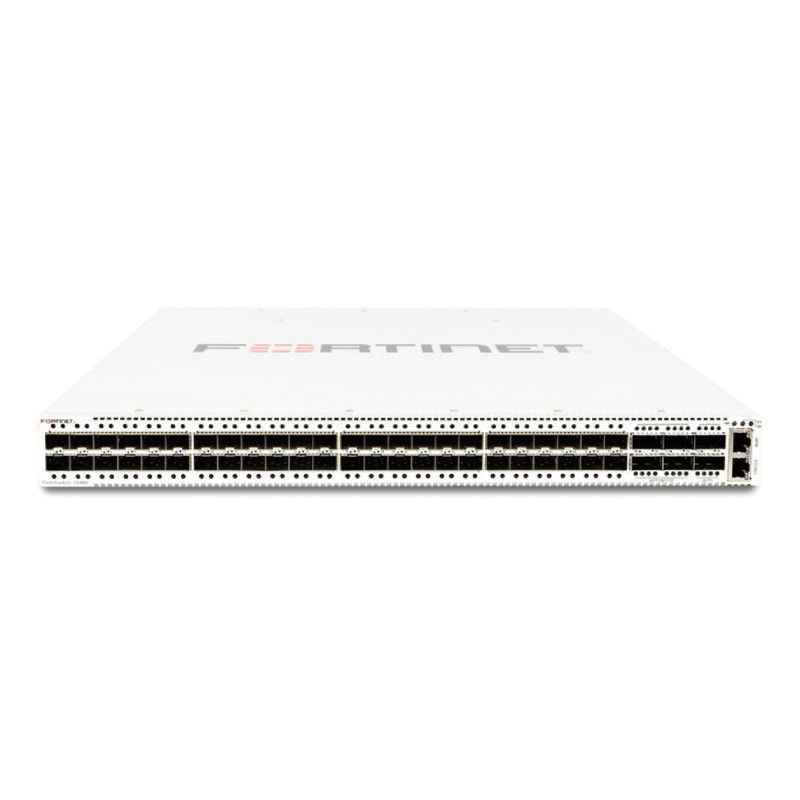

The Fortinet FortiSwitch 1048E is a managed 48-port Ethernet switch designed to support enterprise networking needs by combining high-speed connectivity with integrated security controls. It fits well in environments where network performance and protection must go hand in hand, such as corporate networks and secure data centers. |
| General Information | |
|---|---|
| Brand | Fortinet |
| Part Number | FS-1048E |
| Condition | Refurbished |
| Technical Information | |
|---|---|
| Form Factor | Rack-Mountable |
| Mount Type | 1U Rack |
| Switch Ports | 48 Ports |
| Number of Ports | 48-Ports |
| Port Type | 10/100/1000Base-T, SFP |
| Port Speed | 10/100/1000Base-T |
| UpLink Ports | 4 SFP (1Gb) |
| POE Support | No |
| Switching Capacity | 104 Gbps |
| Switch Forwarding Rate | 203.125 Mpps |
| VLAN Support | Yes |
| Max VLANs Supported | 1-4094 |
| Layer Support | Layer 2, Layer 3 Lite |
| Connector Type | RJ-45,SFP |
| Performance | |
|---|---|
| Jumbo Frame Support | Up To 9216 Bytes |
| MAC Address Table Size | 16000 |
| Management and Configuration | |
|---|---|
| Routing Protocols | Static |
| Remote Protocols | Yes |
| Management Interfaces | Web GUI, CLI (SSH, Telnet), SNMP, RMON, FortiLink |
| Security Features | 802.1X, ACLs, Port security, DHCP snooping, IP Source Guard, Storm control, DoS protection, MAC binding |
| Security | 802.1X, ACLs |
| Remote Management Protocol | HTTP, HTTPS, SSH, Telnet, SNMPv1, SNMPv2c, SNMPv3 |
| Routing Protocol | Static |
| Physical Characteristics | |
|---|---|
| Weight | 5.00 |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Miscellaneous | |
|---|---|
| Compliance Standards | WEEE, RoHS, CE, FCC, cULus |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.3x |
| Product Description |
|---|
The Fortinet FortiSwitch 1048E is built for enterprise networks requiring reliable, high-capacity switching with robust security. It commonly appears in data centers and large office setups where multiple devices need fast, secure connections. This switch is often found in environments that benefit from Fortinet's security ecosystem, helping network admins efficiently manage traffic and enforce policies. Key Features
Typically deployed in enterprise branches, campus networks, and data centers, this switch balances performance with security. It plays a key role in maintaining smooth data flow while providing the safeguards needed in complex network setups. |
