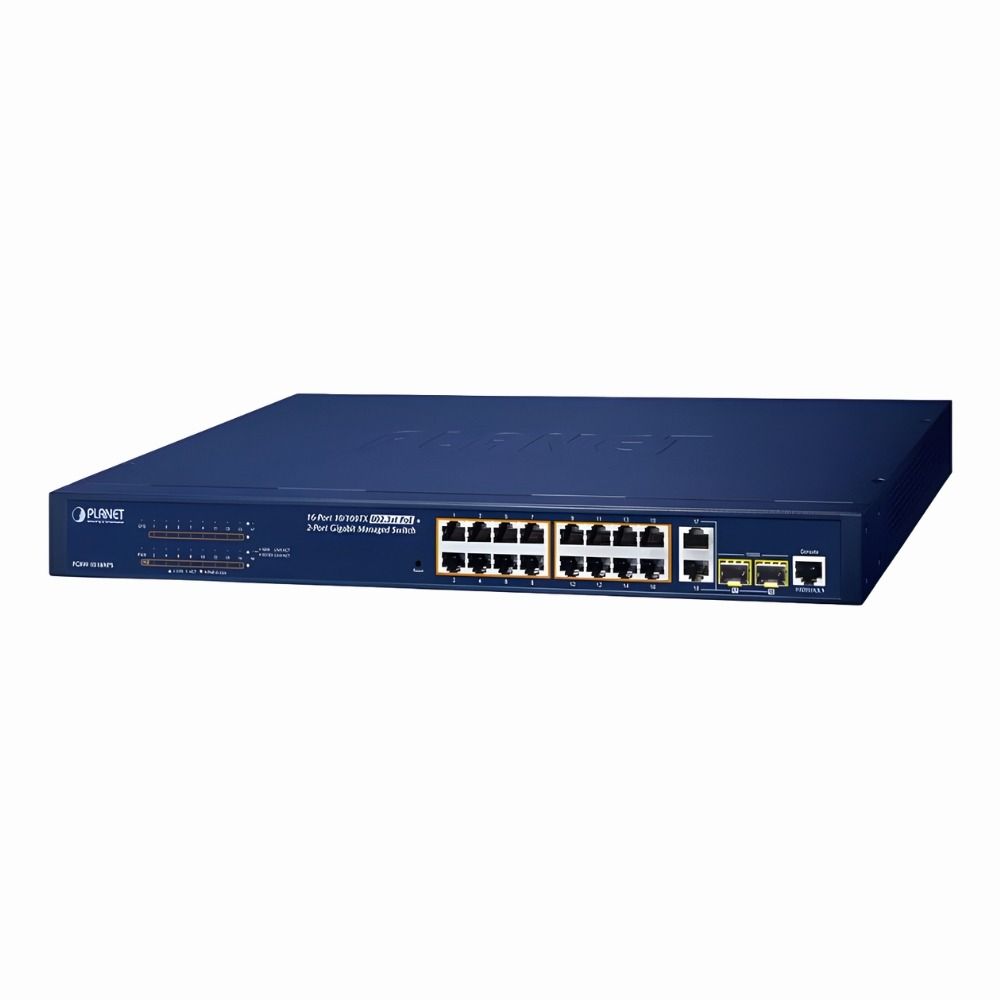

Name: FGSW-1816HPS Planet 16 x Ports PoE+ 10/100Base-TX + 2 x Ports 1GbE RJ-45 + 2 x Shared Ports SFP/mini-GBIC Layer 2 1U Rack-Mountable Managed Switch
SKU: FGSW-1816HPS
Price: 635.36 USD
Availability: InStock
Rating: 4.8 (114 reviews)

Product Overview
The FGSW-1816HPS Planet switch combines robust PoE+ capabilities with versatile port options, fitting well into managed Layer 2 network environments. It's tailored for locations that require powering devices via Ethernet while maintaining efficient data flow and flexible connectivity through both copper and fiber interfaces.

General Information
Part Number	FGSW-1816HPS
Condition	Refurbished

Technical Information
Switch Ports	20 (16 x 10/100Base-TX PoE+ ports + 2 x 1GbE RJ-45 uplinks + 2 x shared SFP/mini-GBIC uplinks)
Number of Ports	16-Ports
Port Speed	10/100Base-TX,1000Base-T,1000Base-X (SFP)
Switching Capacity	11.2 Gbps
Switch Forwarding Rate	21.87 Mpps (64-byte packet)
Max VLANs Supported	4094
Connector Type	RJ-45 (10/100 PoE+, 1Gb uplinks), SFP / mini-GBIC (1Gb)

Performance
Latency	<10 µs (64-byte frame at 1Gbps)
Jumbo Frame Support	Up To 9216 Bytes
MAC Address Table Size	8K (8192) MAC address entries

Management and Configuration
Remote Management Protocol	HTTP/HTTPS, SSH, Telnet, SNMP v1/v2c/v3, SYSLOG, RMON, Telnet/CLI

Power & Cooling
Fans	2 (temperature-controlled, front-to-back)
Power	AC 100-240V 50/60Hz; PoE Budget: 240W; Max Power Consumption (device + PoE) ~300W (typical vendor rating)

Physical Characteristics
Dimensions	44 x 440 x 200 mm (1U rack-mount)
Weight	4.00
Operating Temperature	0°C to 50°C

Miscellaneous
Eco Friendly	Yes
Assembly Required	Yes
Compliance Standards	WEEE, RoHS, cURus, CE, FCC, CCC, UL, TUV, cULus, CSA, cUL

Product Description
The FGSW-1816HPS is designed to provide reliable and efficient network connectivity with Power over Ethernet capabilities. It is commonly used in office environments, surveillance setups, and network infrastructures that require both data transfer and power delivery through a single cable. Often found in small to medium-sized businesses, this managed switch helps network administrators control traffic and maintain performance with Layer 2 features. Its rack-mountable design allows easy integration into existing server racks or network closets. Key Features Offers 16 PoE+ ports to power IP cameras, phones, and access points directly Includes 2 dedicated Gigabit RJ-45 ports for fast wired connections Provides 2 shared SFP slots for fiber optic uplinks, enhancing network flexibility Supports VLANs, QoS, and port trunking to optimize network traffic 1U rack size fits standard network racks for space-efficient deployment This switch is typically deployed in business networks where multiple powered devices are used and where network segmentation or traffic management is necessary. It plays a key role in simplifying installations by reducing the need for separate power supplies and enabling centralized network control.

Use Cases
The FGSW-1816HPS Planet switch is well-suited for enterprise network environments requiring centralized power delivery and data management. It is particularly beneficial in settings where IP-based devices demand reliable PoE+ power alongside flexible uplink options for seamless network scaling. How It's Used: Deploying in medium-sized corporate LANs to power VoIP phones and IP cameras while maintaining high-speed data throughput. Integrating within campus network edge layers to support wireless access points and digital signage with flexible fiber or copper uplinks. Utilizing in remote branch offices where rack-mounted infrastructure needs consolidated power and managed network capabilities. Supporting surveillance system backbones in commercial buildings by connecting multiple PoE-powered security devices with managed Layer 2 features. Facilitating network expansion in data closets requiring a mix of copper and fiber connectivity for diverse device interconnections. This switch enhances operational efficiency by combining PoE power delivery with versatile port configurations, supporting scalable network architectures. Its managed Layer 2 functionality enables precise traffic control and network segmentation, critical for maintaining performance in complex deployments.
