| Product Overview |
|---|

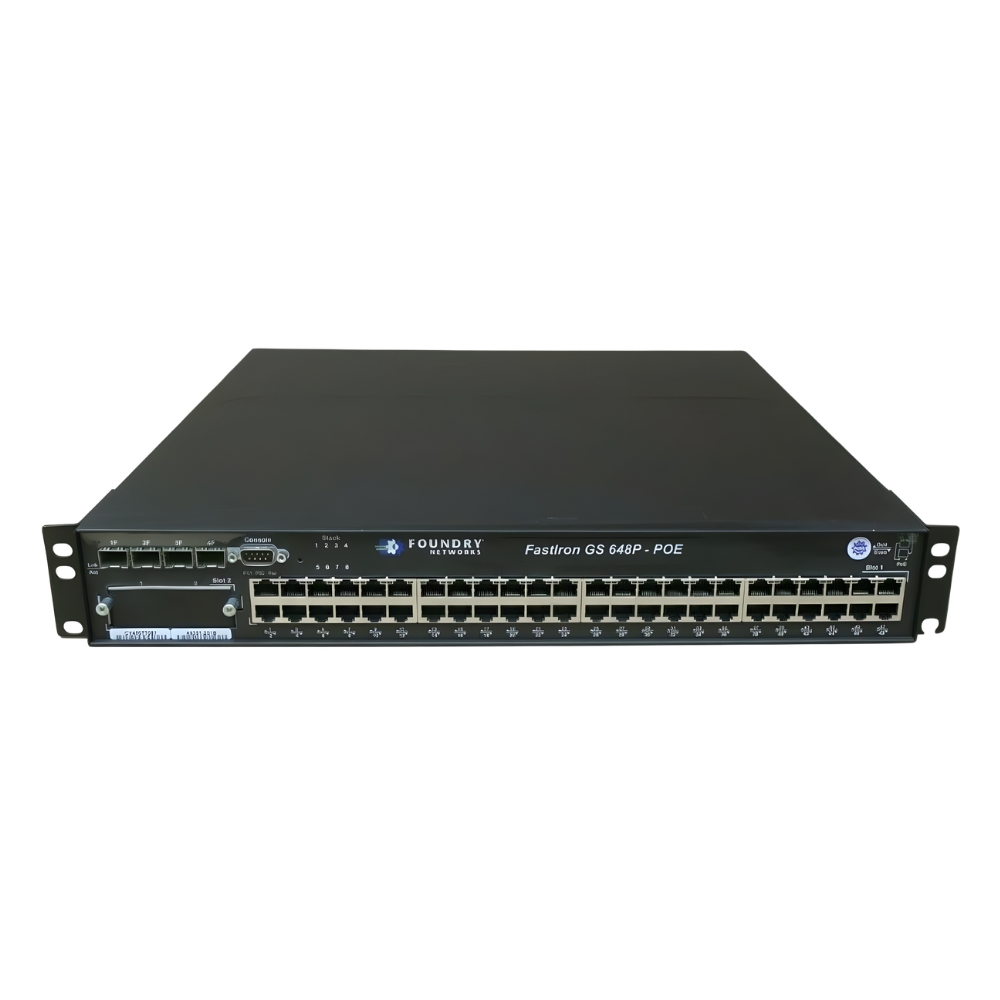

The Brocade FastIron GS FGS648P-POE is a Layer 3 managed Gigabit Ethernet switch that combines 48 PoE-enabled RJ-45 ports with 4 combo SFP slots, making it suitable for enterprise networks requiring both robust data throughput and Power over Ethernet. Its rack-mountable design and support for routing protocols position it as a versatile option for mid-sized network deployments. |
| General Information | |
|---|---|
| Brand | Brocade |
| Part Number | FGS648P-POE |
| Condition | Refurbished |
| Alternate Part Number | FGS648P-POE-04-CT |
| Technical Information | |
|---|---|
| Switch Type | Layer 3 |
| Form Factor | Rack-Mountable |
| Mount Type | 1U Rack |
| Switch Ports | 48 |
| Number of Ports | 48-Ports |
| Port Type | 10/100/1000Base-T, Combo RJ-45/SFP, SFP |
| Port Speed | 10/100/1000 Mbps |
| UpLink Ports | 4x Combo SFP |
| POE Support | PoE |
| Switching Capacity | 104 Gbps |
| Switch Forwarding Rate | 154.76 Mpps |
| DRAM | 256 MB |
| Flash Memory | 64 MB |
| VLAN Support | Yes |
| Max VLANs Supported | 1-4094 |
| Layer Support | Layer 3 |
| Connector Type | RJ-45,SFP,Combo RJ-45/SFP |
| Performance | |
|---|---|
| Jumbo Frame Support | Up To 9216 Bytes |
| MAC Address Table Size | 16000 |
| Management and Configuration | |
|---|---|
| Routing Protocols | Static, RIP, OSPF, VRRP, IGMP |
| Remote Protocols | Yes |
| Management Interfaces | Web GUI,Command Line Interface (CLI),SNMP (v1/v2c/v3),SSH,Telnet,Serial Console (RJ-45) |
| Security Features | Access Control Lists (ACLs),802.1X,RADIUS,TACACS+,Port Security,DHCP Snooping,BPDU Guard,Storm Control |
| Management Type | Managed |
| Remote Management Protocol | SNMPv1,SNMPv2c,SNMPv3,HTTP,HTTPS,SSH,TELNET |
| Routing Protocol | Static,RIP,OSPF |
| Power & Cooling | |
|---|---|
| Power | AC 100-240V, 50/60Hz; PoE budget ~370W |
| Physical Characteristics | |
|---|---|
| Weight | 3.00 |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Miscellaneous | |
|---|---|
| Assembly Required | No |
| Compliance Standards | RoHS, CE, FCC, UL, cULus |
| Compliant Standards | IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.1Q,IEEE 802.1p,IEEE 802.3x,IEEE 802.1D,IEEE 802.1w,IEEE 802.1s,IEEE 802.3af |
| Product Description |
|---|
The Brocade FastIron GS FGS648P-POE switch delivers a reliable, high-performance solution for network environments that demand both data and power over a single cable. It’s commonly used in enterprise offices, campus networks, and small data centers where both high-speed connectivity and Power over Ethernet are essential. Network administrators often find it useful for deploying IP phones, wireless access points, and surveillance cameras without additional power sources. Key Features
This switch is typically installed in wiring closets or data rooms within enterprise settings. Its combination of PoE and Layer 3 capabilities helps simplify infrastructure by reducing separate power needs and enabling sophisticated network segmentation. Users benefit from its blend of speed, power, and manageability in a compact package. |
| Use Cases |
|---|
The FGS648P-POE switch is used in network environments that demand high port density, PoE support, and advanced routing capabilities. How It's Used:
Its combination of power, performance, and management features makes it a versatile solution for medium to large-scale network deployments. |
