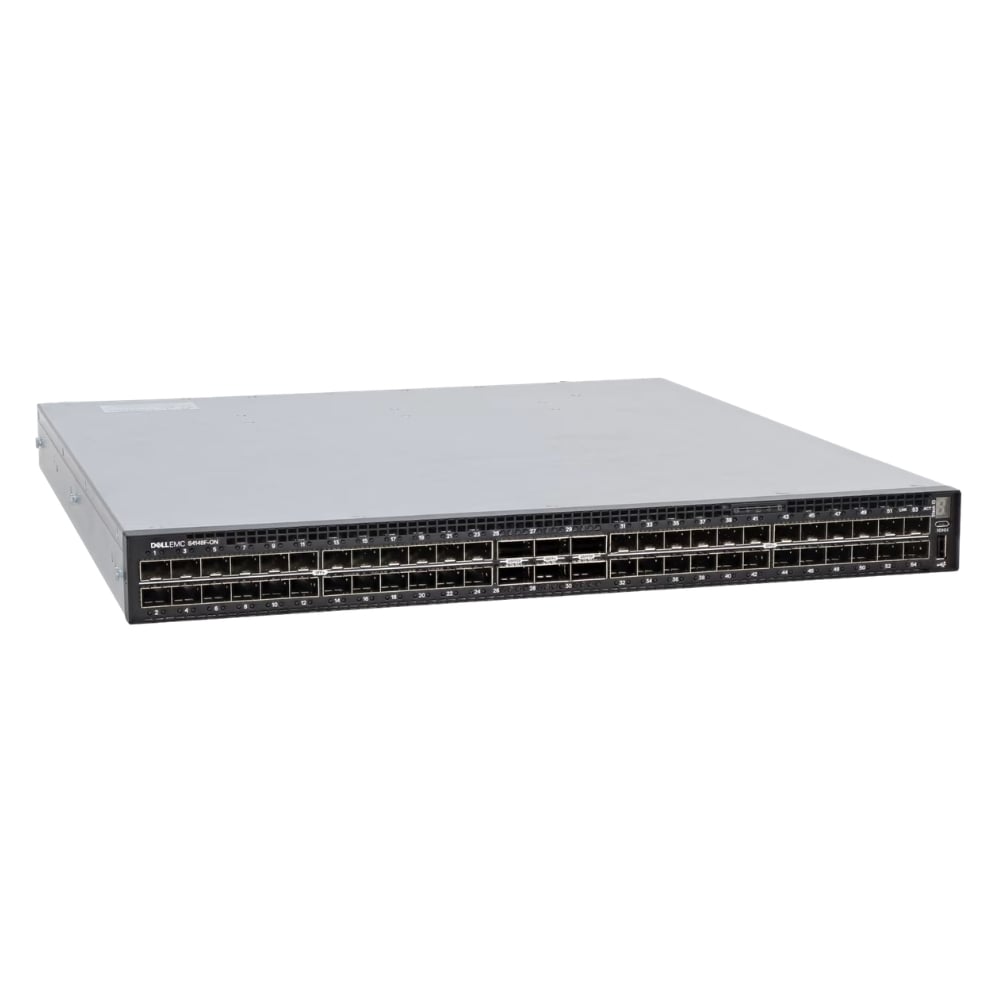

Name: F220W Dell S4148F-ON 48-Port 10GbE SFP+ Switch with QSFP+ & QSFP28
Brand: Dell
SKU: F220W
Price: 2249.00 USD
Availability: InStock
Rating: 4.8 (124 reviews)

Product Overview
The Dell Networking S4148F-ON switch offers 48 10GbE SFP+ ports alongside 2 QSFP+ and 4 QSFP28 ports, providing a versatile combination of high-speed connections. It fits within Dell's S4148F-ON series and caters to data center environments requiring scalable and flexible network infrastructure.

General Information
Brand	Dell
Condition	Refurbished

Technical Information
Switch Type	Layer 3, Managed Switch
Form Factor	Rack-Mountable
Mount Type	1U Rack
Switch Ports	48
Number of Ports	48-Ports
Port Type	10G SFP+, 40G QSFP+, 100G QSFP28, USB Console, Serial Console (RJ-45)
Port Speed	10Gbps,40Gbps,100Gbps
UpLink Ports	2 x QSFP+,4 x QSFP28
POE Support	No
Switching Capacity	960 Gbps
Switch Forwarding Rate	1875 Mpps
VLAN Support	Yes
Max VLANs Supported	1-4094
Layer Support	Layer 3
Connector Type	SFP+,QSFP+,QSFP28,RJ-45

Performance
Jumbo Frame Support	Up To 9216 Bytes

Management and Configuration
Routing Protocols	Static, RIP, OSPF, BGP, VRRP, PIM-SM, IGMP, Policy-Based Routing (PBR)
Remote Protocols	Yes
Management Interfaces	CLI (SSH),Web GUI,Serial Console (RJ-45),SNMP,REST API
Security Features	802.1X,ACLs,SSH,SSL,Port Security,Storm Control
Management Type	In-band and Out-of-band
Remote Management Protocol	SSH,Telnet,HTTP/HTTPS,SNMP,REST

Power & Cooling
Fans	Hot-swappable redundant fans

Physical Characteristics
Weight	3.00
Operating Temperature	0°C to 40°C

Miscellaneous
Eco Friendly	Yes
Assembly Required	No
Compliance Standards	WEEE, RoHS, CE, FCC, UL, cULus

Product Description
The Dell Networking S4148F-ON, identified by part number F220W, is a high-density network switch designed to deliver 48 ports of 10 Gigabit Ethernet SFP+ connectivity. It also features 2 QSFP+ ports and 4 QSFP28 ports, enabling flexible uplink options suitable for demanding data center environments. This switch is commonly utilized in enterprise and service provider networks where scalable, high-throughput switching is required. Network administrators and IT professionals benefit from its comprehensive port density and versatile expansion capabilities. Key Features 48 SFP+ ports providing 10GbE connectivity 2 QSFP+ ports supporting 40GbE uplinks 4 QSFP28 ports for 100GbE uplinks Part of Dell's Networking S4148F-ON switch series Supports advanced network topologies and configurations The switch plays an essential role in managing large-scale network traffic with multiple high-speed connections. Its design supports both aggregation and core layer deployments, enabling efficient data handling and network segmentation.

Use Cases
The Dell Networking S4148F-ON switch is typically deployed in data centers, enterprise networks, and service provider environments that demand high port density and scalable uplink options. It supports workloads that require 10GbE access with the ability to aggregate traffic at 40GbE and 100GbE speeds. How It's Used: Aggregating 10GbE server connections in data center access layers Providing uplink capacity to core switches via 40GbE and 100GbE QSFP ports Supporting virtualization and cloud computing infrastructures requiring high bandwidth Enabling scalable network designs for enterprise campus backbone deployments Facilitating network segmentation and traffic management in large-scale environments This switch serves as a critical network component that bridges multiple 10GbE endpoints with high-capacity uplinks. It helps optimize network performance and supports complex configurations necessary for modern IT infrastructures.

FAQ's
What types of ports does the Dell F220W switch have? The Dell F220W switch includes 48 10GbE SFP+ ports, 2 QSFP+ ports for 40GbE, and 4 QSFP28 ports capable of 100GbE connections. Is the F220W part of a specific Dell switch series? Yes, the F220W is part of the Dell Networking S4148F-ON switch series designed for high-density 10GbE environments. What environments are suitable for the S4148F-ON switch? This switch is suitable for data centers, enterprise campus networks, and service provider infrastructures that require scalable 10GbE access and higher-speed uplinks. Can the QSFP28 ports support 100GbE uplinks? Yes, the 4 QSFP28 ports on the switch support 100GbE uplinks, enabling aggregation to higher network layers. Does the switch support advanced network configurations? The switch supports advanced configurations suitable for complex topologies, including traffic segmentation and scalable network designs. Who typically manages the Dell S4148F-ON switches? Network professionals and IT administrators in enterprise and data center environments typically manage these switches to handle high-density networking requirements.
