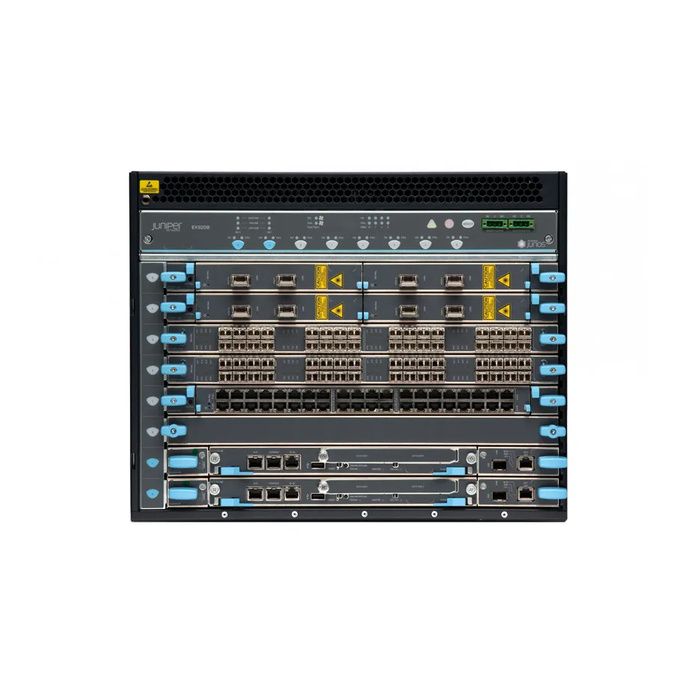

Name: EX9208-BASE3C-AC-T Juniper EX9208 8-Slot Modular Ethernet Switch Chassis with AC Power
Brand: Juniper
SKU: EX9208-BASE3C-AC-T
Price: 1.00 USD
Availability: InStock
Rating: 4.8 (114 reviews)

Product Overview
The EX9208-BASE3C-AC-T chassis provides a structured platform for scaling network infrastructure. It fits into larger EX9200 series environments, handling increased port density and throughput needs effectively without altering core network designs.

General Information
Brand	Juniper
Condition	Refurbished

Technical Information
Switch Ports	No
Port Type	10/100Base-T, 1000Base-T, 10G SFP+, 25G SFP28, 40G QSFP+, 100G QSFP28, USB Console, Serial Console (RJ-45)
Port Speed	10/100Base-T,1000Base-T,10G SFP+,25G SFP28,40G QSFP+,100G QSFP28
POE Support	No
VLAN Support	Yes
Max VLANs Supported	1-4094
Stackable	Optional
Layer Support	Layer 3
Connector Type	RJ-45,SFP,SFP+,QSFP / QSFP+

Performance
Jumbo Frame Support	Up To 9216 Bytes

Management and Configuration
Routing Protocols	Static, RIP, RIPng, OSPF, OSPFv3, BGP, IS-IS, VRRP, PIM-SM, IGMP, MLD, Policy-Based Routing (PBR), Route Maps
Remote Protocols	Yes
Management Interfaces	Console (RJ-45), USB Console, Out-of-band management (10/100/1000Base-T), SNMP
Security Features	802.1X, RADIUS, TACACS+, ACLs, DHCP snooping, Dynamic ARP inspection, MAC limiting, Storm control
Management Type	Junos OS (CLI/GUI), Junos Space
Remote Management Protocol	SSH,SNMP,NETCONF
Routing Protocol	Yes

Power & Cooling
Fans	Redundant front-to-back hot-swappable fan trays
Power	AC power (hot-swappable, redundant power supply modules)
Power Supply	AC power supply modules (hot-swappable, redundant)

Physical Characteristics
Weight	3.00
Operating Temperature	0°C to 40°C (32°F to 104°F)

Miscellaneous
Assembly Required	No
Compliance Standards	RoHS, CE, FCC, UL
Compliant Standards	IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ad (LACP)

Product Description
The EX9208-BASE3C-AC-T is an 8-slot expansion switch chassis built to extend the capacity of Juniper's EX9200 series. It provides a scalable platform that allows network infrastructure to grow with increasing demands. Commonly found in enterprise data centers and campus environments, this chassis supports a variety of line cards to meet diverse networking requirements. Network engineers and administrators benefit from its modular design, which simplifies upgrades and maintenance. Key Features Expandable architecture accommodating up to eight line cards Integrated AC power supplies ensure consistent power delivery Robust backplane supporting high bandwidth traffic flow Compatible with a wide range of Juniper EX9200 series components Designed for efficient cooling and quiet operation Its role in network expansion is critical, offering reliable performance and flexible capacity without compromising existing system stability. The chassis’ build quality supports continuous operation, making it a dependable component in demanding network environments.

Use Cases
The EX9208-BASE3C-AC-T chassis is instrumental in expanding the capacity and capabilities of existing Juniper EX9200 Series networks. How It's Used: Adding additional line cards to increase port density in enterprise networks Scaling data center network infrastructure for higher throughput Integrating into core network setups to support growing traffic demands Facilitating modular upgrades without replacing existing network hardware Supporting high-availability configurations with redundant power and cooling This expansion chassis is a practical solution for network teams aiming to enhance their infrastructure with minimal disruption and maximum growth potential.
