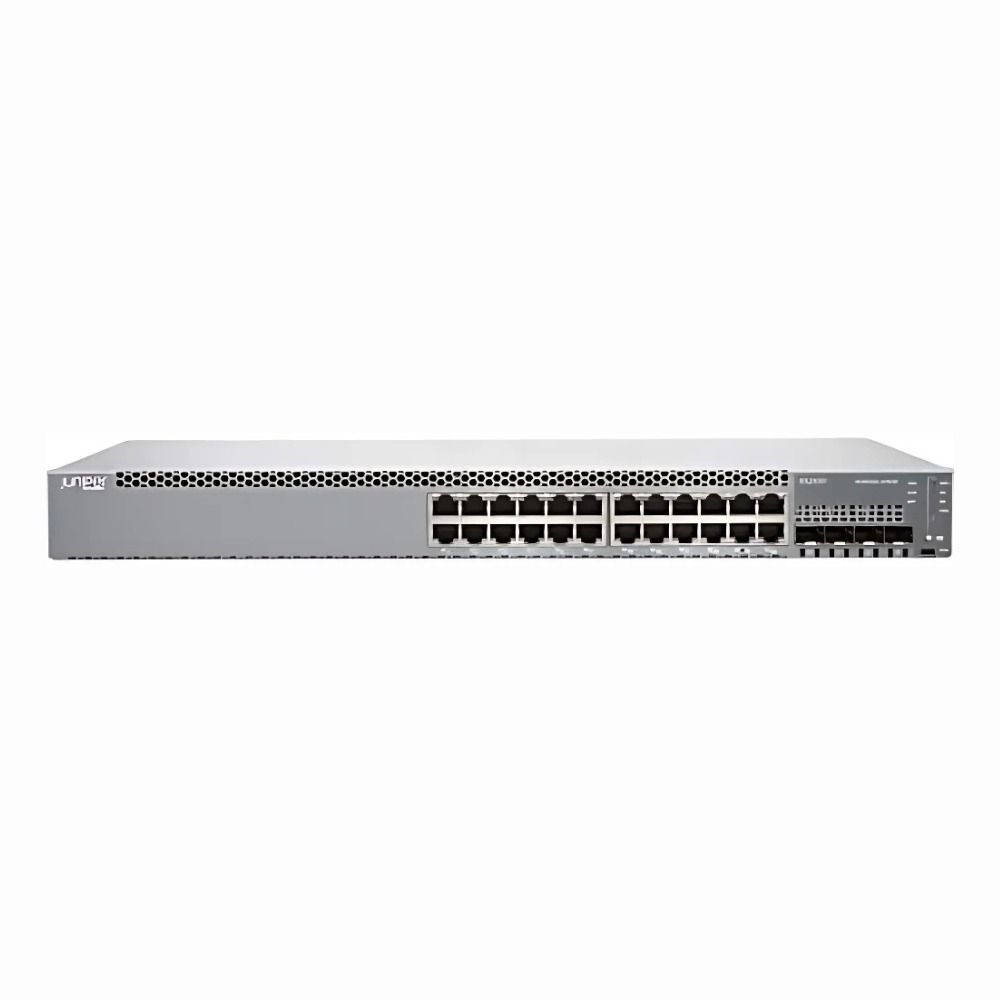

Name: EX2300-24T-DC Juniper 24x1GbE RJ45 4x10GbE SFP+ Layer 3 Switch
Brand: Juniper Networks
SKU: EX2300-24T-DC
Price: 2739.26 USD
Availability: InStock
Rating: 4.8 (118 reviews)

Product Overview
The EX2300-24T-DC Juniper EX2300 Fixed Layer 3 Access Switch offers 24 x 1 GbE copper ports and 4 x 10 GbE SFP/SFP+ uplinks in a fan-efficient 1U form, supporting Virtual Chassis stacking, basic L3 routing, and quiet operation for enterprise access or aggregation deployments.

General Information
Brand	Juniper Networks
Part Number	EX2300-24T-DC
Condition	Refurbished

Technical Information
Switch Type	Managed Switch
Form Factor	Rack-Mountable
Mount Type	1U Rack
Number of Ports	28-Ports
Port Type	10/100/1000Base-T, SFP, SFP+
Port Speed	Access: 1 Gbps; Uplinks: 1/10 Gbps
UpLink Ports	4 × 1/10 GbE SFP/SFP+
Switching Capacity	128 Gbps
Switch Forwarding Rate	95 Mpps
Max VLANs Supported	Up to 4,093 VLANs
Layer Support	Layer 2+
Connector Type	RJ‑45, SFP/SFP+, Console RJ‑45, USB mini, OOBM RJ‑45

Performance
Jumbo Frame Support	Up To 9216 Bytes
MAC Address Table Size	16,000 entries

Management and Configuration
Routing Protocols	Static, RIP, OSPF, VRRP, IGMP
Remote Protocols	Junos OS CLI, J‑Web GUI, Junos Space/Mist Wired Assurance
Management Interfaces	Out-of-band RJ‑45, console RJ‑45, USB mini
Security Features	ACLs, 802.1X, RTG, EEE, cable diagnostics

Physical Characteristics
Dimensions	1.75″ × 17.4″ × 10.2″
Weight	8.00

Product Description
The EX2300-24T-DC is a compact, high-efficiency fixed configuration switch designed for Layer 2 and basic Layer 3 deployments, ideal for branch offices, enterprise wiring closets, or low-noise environments. Key Features 24 x 10/100/1000BASE‑T access ports and 4 x 1/10GbE SFP/SFP+ uplink ports 1U rackmount with low-acoustic internal fans and fixed DC power supply 128 Gbps switching capacity and 95 Mpps forwarding performance Supports up to 4,093 VLANs and 16,000 MAC address entries Virtual Chassis stacking support for simplified network scalability Ideal for edge access, small enterprise distribution, and converged environments, this model delivers quiet operation and flexible mounting options, making it suitable for rack, wall, or desktop use in space-limited setups.

Use Cases
The EX2300-24T-DC is designed for enterprise access and aggregation layers where reliable, high-performance Layer 3 switching is required. It is particularly suited for organizations needing compact, energy-efficient switches that support advanced networking features and easy scalability through Virtual Chassis technology. How It's Used: Deploying access switches in branch offices for SMB networks requiring secure and resilient connectivity. Supporting wiring closets in campus environments to aggregate user traffic with low latency and high throughput. Enabling edge computing workloads with compact rack-mountable switches that handle mixed 1GbE and 10GbE connections. Implementing Virtual Chassis stacks in mid-sized enterprise IT infrastructures to simplify management and increase port density. Integrating with storage clusters where reliable Layer 3 routing and switching enhance data flow and redundancy. This switch supports operational efficiency by combining energy-efficient hardware with Virtual Chassis stacking, allowing organizations to scale network capacity without added complexity. Its Layer 3 capabilities ensure smooth traffic routing for diverse workloads in distributed environments.
